Product Details:
|
Mateiral: | Polypropylene Monofilament | Hole Shape: | Square |
---|---|---|---|
Usage: | Liquid Filter | Feature: | Corrosion Resistance |
Mesh Count: | 50,60,80,100 |

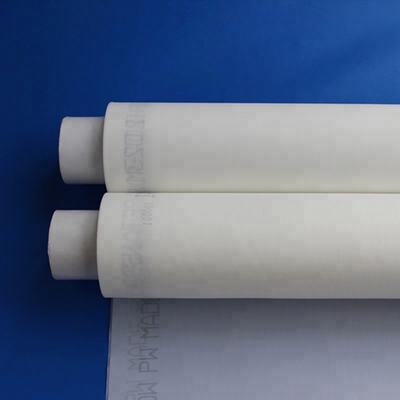

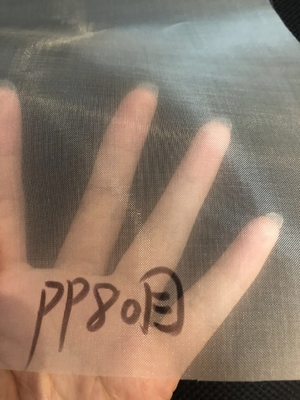

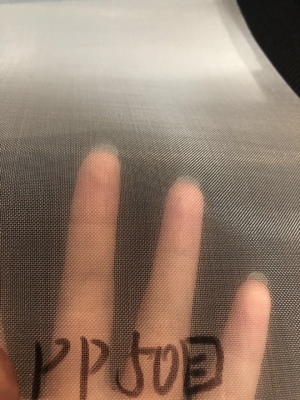

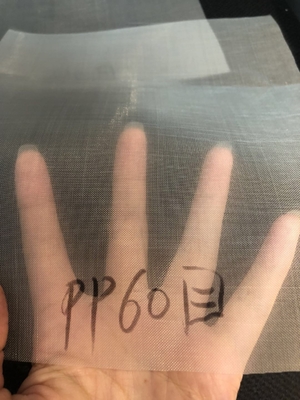

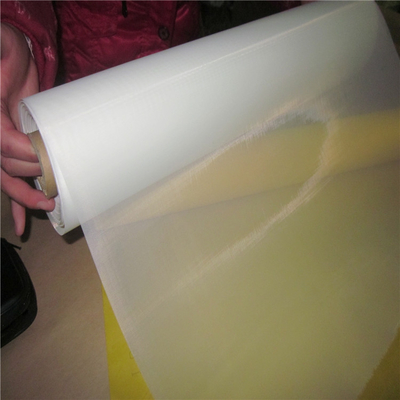

80 mesh/ 60 mesh/50 mesh monofilament wire PP mesh net fabric filter
FDA food grade nylon mesh filter cloth bag
Our company is a professional company on producing kinds of mesh, filter cloth. The product applied in many industries , such as weave printing and dyeing , plate making , electron priting , chinaware , glass , flower paper printing , scutcheon , advertisement , indstrial arts, foods, chemical filtration and so on , It wins great repuations by its outstanding quality with best value .
Model | mesh count (/cm) | mesh count (/inch) | thread dia (um) | mesh opening (um) | thickness (um) | weight (g/m2) |
NL4/1950 | 4 | 10 | 550 | 1950 | 1100 | 307 |
NL5/1500 | 5 | 13 | 500 | 1500 | 1000 | 318 |
NL6/1267 | 6 | 15 | 400 | 1267 | 800 | 244 |
NL7/1079 | 7 | 18 | 350 | 1079 | 700 | 218 |
NL8/900 | 8 | 20 | 350 | 900 | 700 | 249 |
NL9/861 | 9 | 23 | 250 | 861 | 500 | 143 |
NL9/811 | 9 | 23 | 300 | 811 | 600 | 206 |
NL10/750 | 10 | 25 | 250 | 750 | 500 | 159 |
NL10/700 | 10 | 25 | 300 | 700 | 600 | 229 |
NL12/583 | 12 | 30 | 250 | 583 | 500 | 191 |
NL12/533 | 12 | 30 | 300 | 533 | 600 | 274 |
NL14/514 | 14 | 36 | 200 | 514 | 340 | 142 |
NL16/425 | 16 | 40 | 200 | 425 | 340 | 160 |
NL20/350 | 20 | 50 | 150 | 350 | 255 | 113 |
NL20/300 | 20 | 50 | 200 | 300 | 340 | 200 |
NL24/267 | 24 | 60 | 150 | 267 | 255 | 135 |
NL28/237 | 28 | 70 | 120 | 237 | 204 | 101 |
NL30/213 | 30 | 76 | 120 | 213 | 204 | 110 |
NL32/213 | 32 | 80 | 100 | 213 | 170 | 80 |
NL36/178 | 36 | 90 | 100 | 178 | 170 | 90 |
NL40/150 | 40 | 100 | 100 | 150 | 170 | 100 |
NL43/153 | 43 | 110 | 80 | 153 | 136 | 70 |
NL48/128 | 48 | 120 | 80 | 128 | 136 | 77 |
NL56/119 | 56 | 140 | 60 | 119 | 102 | 50 |
NL64/96 | 64 | 160 | 60 | 96 | 102 | 58 |
NL72/89 | 72 | 180 | 50 | 89 | 85 | 45 |
NL80/75 | 80 | 200 | 50 | 75 | 85 | 50 |
NL100/57 | 100 | 250 | 43 | 57 | 73 | 46 |
NL110/48 | 110 | 280 | 43 | 48 | 73 | 52 |
NL120/48 | 120 | 300 | 35 | 48 | 60 | 37 |
NL120/40 | 120 | 300 | 43 | 40 | 73 | 55 |
NL130/42 | 130 | 330 | 35 | 42 | 60 | 40 |
NL130/34 | 130 | 330 | 43 | 34 | 73 | 61 |
NL140/36 | 140 | 350 | 35 | 36 | 60 | 43 |
NL157/25 | 157 | 400 | 43 | 25 | 73 | 74 |
NL180/20 | 180 | 450 | 39 | 20 | 66 | 68 |
NL200/15 | 200 | 500 | 39 | 15 | 66 | 76 |
NL220/10 | 220 | 550 | 39 | 10 | 66 | 84 |
NL240/5 | 240 | 600 | 39 | 5 | 66 | 91 |
Remark:The above datas are theoretic ,please reference the actual datas if there it differs.
Monofilament Nylon 6 or Nylon 6.6 ,polyester , PP Filter Mesh:
Monofilament Nylon is a versatile material due to its great strength, flexibility, long life and resistance to abrasion. Nylon has excellent resistance to most common solvents and will operate continuously at temperatures up to 100°C in the chemical pH range 7-14. The term 'Monofilament' means that each thread used in the construction of the cloth is a single smooth solid strand instead of many smaller diameter threads twisted together, as in a spun or multifilament material. These monofilament threads are perfectly round in section and are extruded to very precise and uniform diameters.
