PE nylon PP Air Filter Mesh , Custom Size Fan Coil Unit Filter

PE nylon PP Air Filter Mesh , Custom Size Fan Coil Unit Filter
PE nylon PP Air Filter Mesh , Custom Size Fan Coil Unit Filter PE nylon PP Air Filter Mesh , Custom Size Fan Coil Unit Filter PE nylon PP Air Filter Mesh , Custom Size Fan Coil Unit Filter PE nylon PP Air Filter Mesh , Custom Size Fan Coil Unit Filter PE nylon PP Air Filter Mesh , Custom Size Fan Coil Unit Filter

Large Image :  PE nylon PP Air Filter Mesh , Custom Size Fan Coil Unit Filter

Product Details:
Place of Origin: Hangzhou
Brand Name: RIQI
Certification: ISO9001 SGS
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: standard export packing
Delivery Time: 5-15days

PE nylon PP Air Filter Mesh , Custom Size Fan Coil Unit Filter

Description
Material: PE,nylon ,PP Filtration Grade: Pre Filter, Medium Filter
Sizes: Custom Size Accepted After-sales Service Provided: No Overseas Service Provided
Type: Air Filter
High Light:

PP Air Filter Mesh

,

Nylon Air Filter Mesh

,

Custom Size Fan Coil Unit Filter

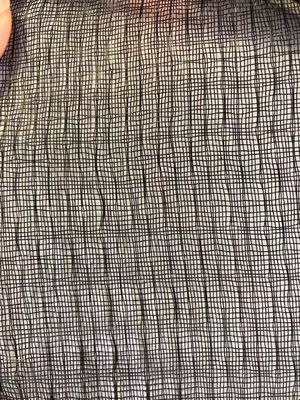

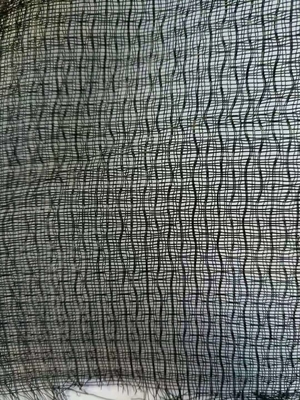

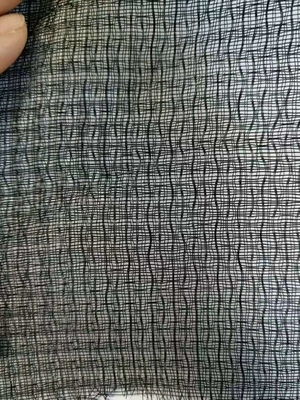

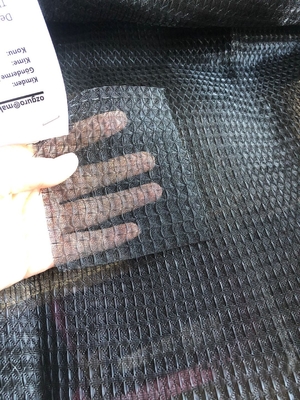

Black PE PP Nylon Mesh for FFU Pre Air Filter Fan Coil Filter 20 mesh 22mesh Washable



Nylon Mesh for FFU Pre Air Filter Fan Coil Filter

Features:

Large air flow; Low resistance; Washable, long service life;
Applications:

Elementary filtering for central air condition(AHUs) and home air condition; Acid resistance, ventilation with alkali filtering.Filter dust, be widely used in Fan Unit,
diffuser and the indoor equipments with the large
air flow, also applied to the pre-filtration of the air
condition system and the cleanroom.

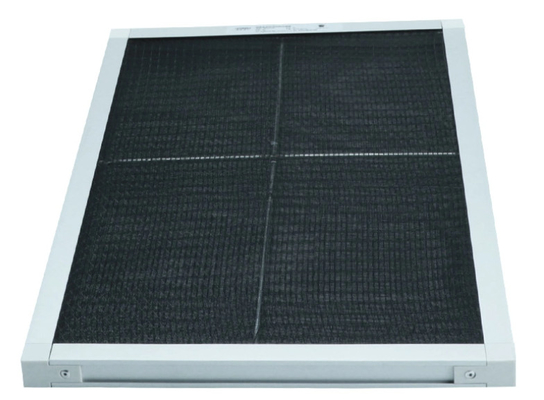

nylon mesh air pre filter

Outside Frame: aluminum alloy or nylon mesh
Media: PP, PA, PE material
Inside frame: galvanized or stainless steel
EN779 class: G3,G4


Prameters:

Type Frame dimension(mm)
Width × height × depth
Material
Frame Filtering materials
GN 595 × 595 × 10 / 21
595 × 495 × 10 / 21
595 × 295 × 10 / 21
495 × 495 × 10 / 21
Aluminium alloy
Galvanized sheet
Nylon mesh


Item Features:
Protection via 2 grids
Ultra compact
Progressively built-up termal bonded polyester fibre
Application: Prevention of dust and dirt build up on heating/cooling coils within
ventilation systems.
Type: Prefilter.
Frame: Mill-finished aluminium profile.
Media: Polyester fibre.
EN 779:2002 filter class: G3, G4.
ASHRAE 52.2:2007 filter class: MERV 6, MERV 7.
Recommended final pressure drop: 250 Pa.
Temperature: 80ºC - 100ºC maximum in continuous service.
Holding frame: Type 8.
Fire rating: DIN 53438 class F1.



1. Air conditioning Network main Material:nylon polyethylene,polypropylene material through the injection compression molding,durable, mainly for air conitioners and dust filters.



2. Application:Household appliances (air conditioner, air purifier)Site (Residential, Commercial, Industrial, Restaurants,Schools, Office buildings).



3. Specification:







Filter Mesh
Mesh/Inch Wire Gauge SWG Aperture mm
40x40mesh 36 0.44
50x50mesh 38 0.36
60x60mesh 40 0.30
80x80mesh 42 0.21
100x100mesh 44 0.17
120x120mesh 44 0.13
150x150mesh 46 0.108
160x160mesh 46 0.097
180x180mesh 47 0.09



Model mesh count (/cm) mesh count (/inch) thread dia (um) mesh opening (um) thickness (um) weight (g/m2)
NL4/1950 4 10 550 1950 1100 307
NL5/1500 5 13 500 1500 1000 318
NL6/1267 6 15 400 1267 800 244
NL7/1079 7 18 350 1079 700 218
NL8/900 8 20 350 900 700 249
NL9/861 9 23 250 861 500 143
NL9/811 9 23 300 811 600 206
NL10/750 10 25 250 750 500 159
NL10/700 10 25 300 700 600 229
NL12/583 12 30 250 583 500 191
NL12/533 12 30 300 533 600 274
NL14/514 14 36 200 514 340 142
NL16/425 16 40 200 425 340 160
NL20/350 20 50 150 350 255 113
NL20/300 20 50 200 300 340 200
NL24/267 24 60 150 267 255 135
NL28/237 28 70 120 237 204 101
NL30/213 30 76 120 213 204 110
NL32/213 32 80 100 213 170 80
NL36/178 36 90 100 178 170 90
NL40/150 40 100 100 150 170 100
NL43/153 43 110 80 153 136 70
NL48/128 48 120 80 128 136 77
NL56/119 56 140 60 119 102 50
NL64/96 64 160 60 96 102 58
NL72/89 72 180 50 89 85 45
NL80/75 80 200 50 75 85 50
NL100/57 100 250 43 57 73 46
NL110/48 110 280 43 48 73 52
NL120/48 120 300 35 48 60 37
NL120/40 120 300 43 40 73 55
NL130/42 130 330 35 42 60 40
NL130/34 130 330 43 34 73 61
NL140/36 140 350 35 36 60 43
NL157/25 157 400 43 25 73 74
NL180/20 180 450 39 20 66 68
NL200/15 200 500 39 15 66 76
NL220/10 220 550 39 10 66 84
NL240/5 240 600 39 5 66 91



Remark:The above datas are theoretic ,please reference the actual datas if there it differs.

Monofilament Nylon 6 or Nylon 6.6 ,polyester , PP Filter Mesh:

Monofilament Nylon is a versatile material due to its great strength, flexibility, long life and resistance to abrasion. Nylon has excellent resistance to most common solvents and will operate continuously at temperatures up to 100°C in the chemical pH range 7-14. The term 'Monofilament' means that each thread used in the construction of the cloth is a single smooth solid strand instead of many smaller diameter threads twisted together, as in a spun or multifilament material. These monofilament threads are perfectly round in section and are extruded to very precise and uniform diameters.
