| Specification: | Customized Size | Trademark: | Riqi |
|---|---|---|---|
| Origin: | China | Supply Ability: | 5000m/Week |
| Type: | Customized | Material: | Polyester, Cotton, Aramid |
| Inside Material: | Polyester, Cotton, Aramid | Feature: | Tear-Resistant, Heat-Resistant, Wear-Resistant |
| Tensile Strength: | Strong | Transport Package: | Standard Export Package |
| Samples: | US$ 5/Piece 1 Piece(Min.Order) | Request Sample | Customization: | Available | Customized Request |
| Highlight: | Fiber Air Slide Cloth,Aramide Air Slide Cloth |
||

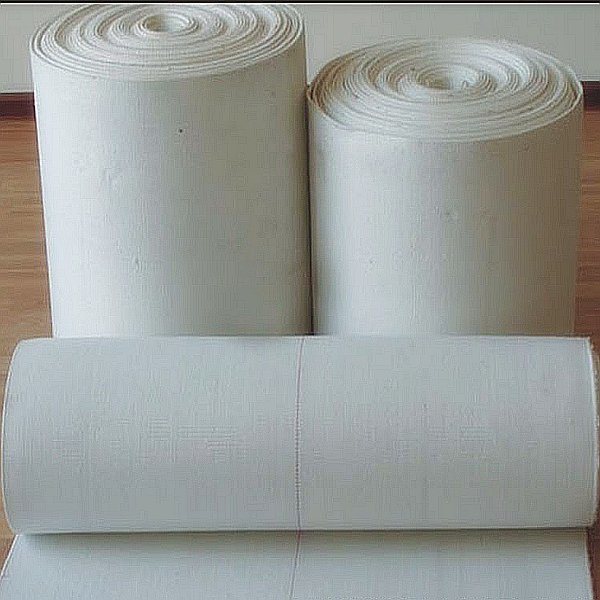

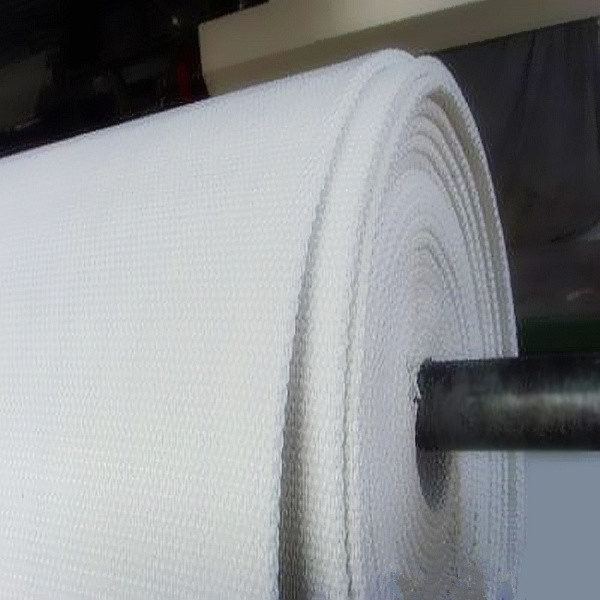

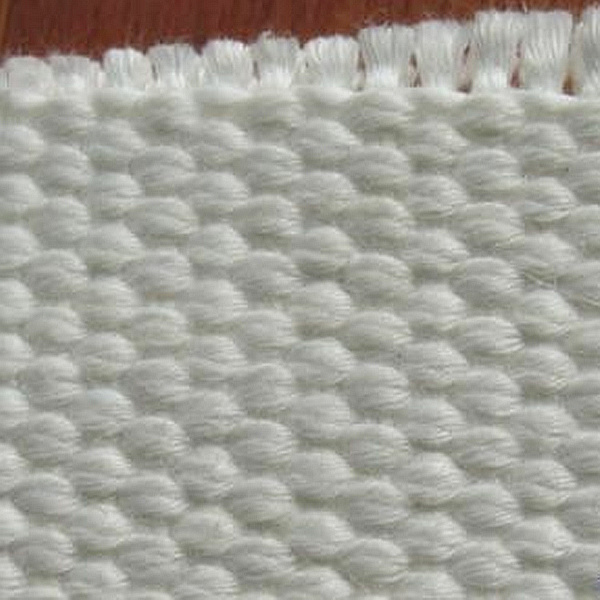

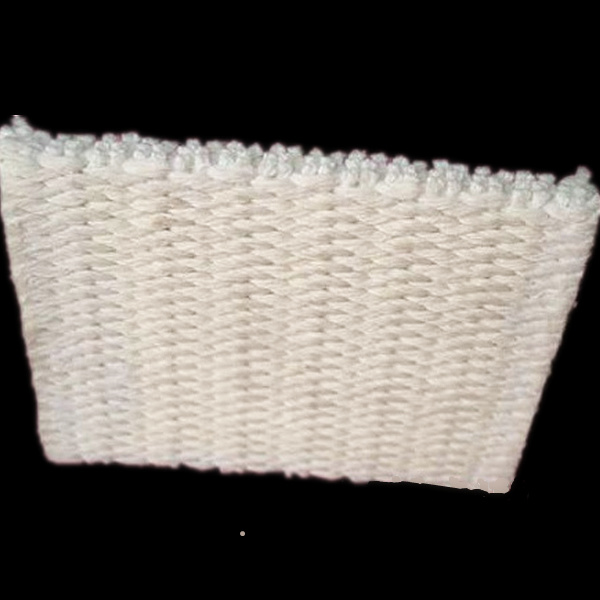

M-Aramide Short Fiber Airslide Fabric Conveyor Belt
m-Aramide short fiber airslide fabric conveyor belt
Specification data:
Raw Material =100% spun fiber polyester
Weight in average = 4000 g/m2
Thickness = 5mm
Mean Air Permeability = 400 m3/m2h @350H2O
Pressure: 2000pa for middle air resistance
4000pa for high air resistance
Breaking Strength- Warp=>6000 N/5cm X 20cm
Breaking Strength- Weft= >3000 N/ 5cm X 20cm
Breaking Elongation - warp=<5%
Breaking Elongation -weft=<5%
Max Width: 2800mm
Operating Temperature < 150 deg.C
Recommended Maximum Continues <180 deg.C
Recommended Maximum Surge = 180 deg.C
Technique data:
| name | material | warp tensile strength(N/mm) | thickness(mm) | temperatuer ≤ | instant temperature ≤ | 980Pa air permeability (m3/m2min) |
specification(mm) |
|
4layer |
polyester | ≥ 425 | 3~8 | 160 °C | 180 °C | 0.5~2.5 | 100~1700 |
| 2layer | polyester | ≥ 210 | 2.5~3 | 160 °C | 180 °C | 0.5~2.5 | 100~1700 |
Advantages
Working principle
In cement plant:
An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide belt can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.
In fluidization silo:
Our Airslide canvas is installed on the surface of the silo bottom. It is supplied for installation as aeration units on the sloped conical bottoms of bins and silos to aid in the withdrawal of dry relatively free-flowing material.
Each Airslide aeration unit package consists of 200mm open-type. Airslide conveyor units in lengths of 1.5 or 3m depend on the slope length of the conical storage area. Some spoke patterns are normally used with materials which have good fluidization characteristics. Others spoke patterns provide maximum aeration for difficult materials which can be fluidized.
In cement vessel's hold:
The sloped bottom of the cargo hold is covered with fluidizing panels. Our airslide fabric is on the surface of fluidizing panels. Rotary piston blowers supply the panels with oil-free compressed air and make the cement flow to the lowest point, where the discharge gate is installed. Powder and particulate material available the Airslide canvas fabric conveyor belt
Application:
In industry
Power Stations: Filtered dust, Flue ash, discharging flue ash, Coal dust
Building and Construction: Cement, furnace dust, gypsum, limestone, finely ground quartz, Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground fluorid, production of aluminum
Chemical Industry:Thomas meal (Fertilizer), Rubber compounds, sinter dust, catalysts,Sodium sulfate, Soap powder
In machinery:
Silos / Tanks : Discharging systems, Warehouse units, Mixing equipment, Homogenizing systems
Chute Bottoms: Conveyor systems, Ventilator systems, Aeration systems
Vehicles : Silo truck discharging cones, Railway wagon discharging cones, Vessel aeration & discharging bottoms, Container aeration & discharging bottoms
Powder Coating Machinery
Bottoms for sinter basin
