Product Details:
|
Model NO.: | PH0003 | Filtration Grade: | HEPA Filter |
---|---|---|---|
Filter Bag Sectional Shape: | Round Bag | Filter Bag Environment: | High-Temperature |
Cartridge Installation: | Vertical Lifting | Working Temperature: | 240 |
Anti Acidic: | Good | Anti Alkaline: | Excellent |
Transport Package: | Standard Export Packing | Specification: | 1m X 1m X 1m |
Trademark: | Philis | Origin: | China |
HS Code: | 5911900 | Supply Ability: | 5000PCS / Week |
Material: | Non-woven | Medium Material: | Nomex |
Cartridge Filter: | Aramid Fiber | Filter Bag Filter: | The Filter Type |
Type: | House Filter Bag | Usage: | Dust Filter, Air Filter |
Samples: | US$ 0/Square Meter 1 Square Meter(Min.Order) | Requ | Customization: | Available | Customized Request |

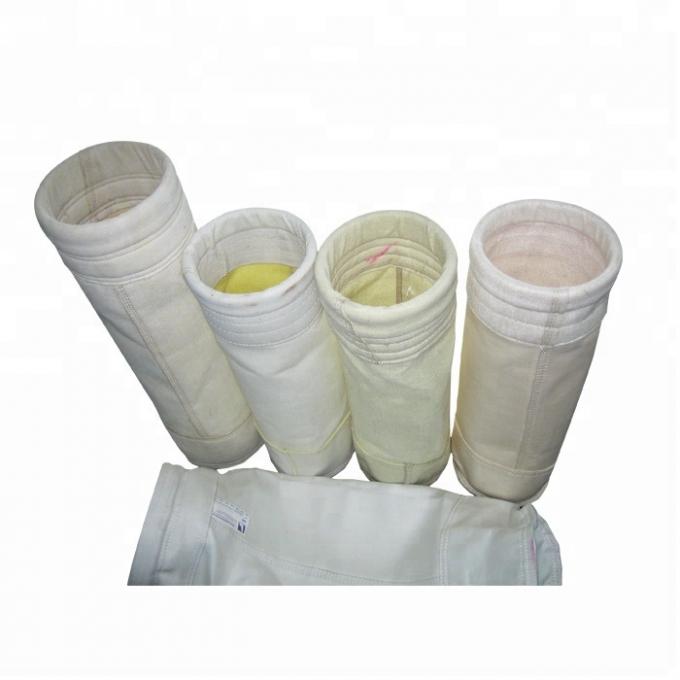

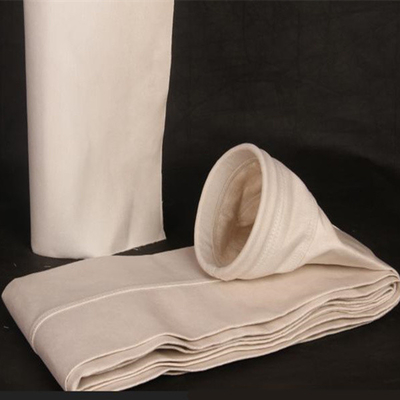

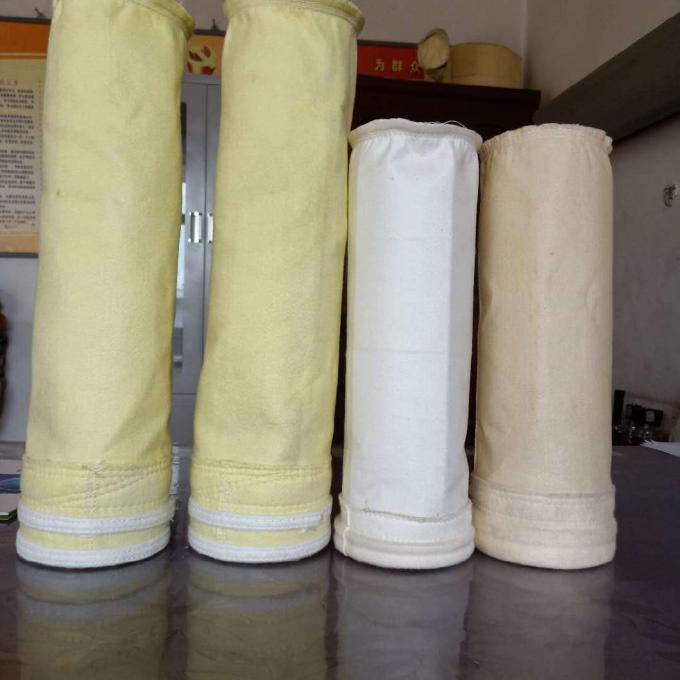

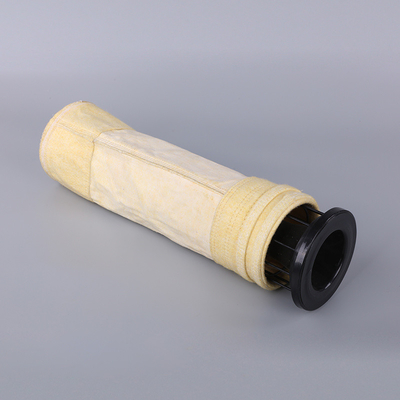

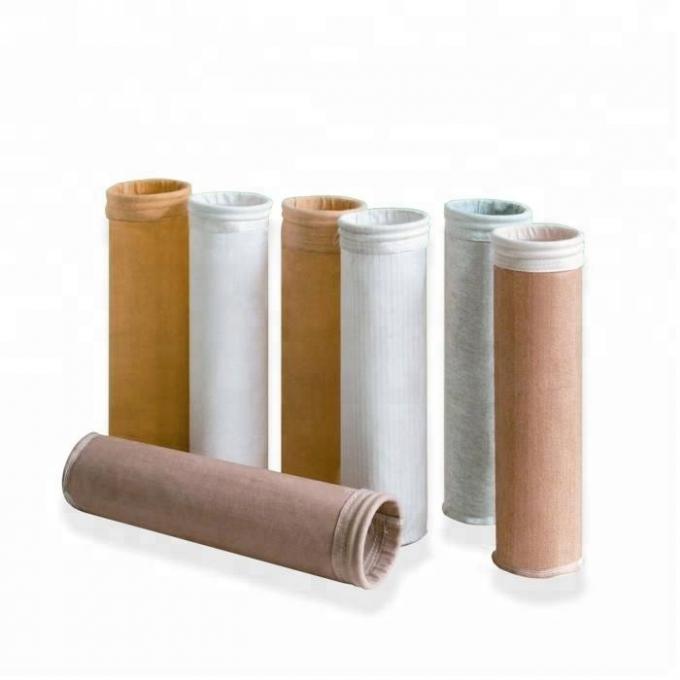

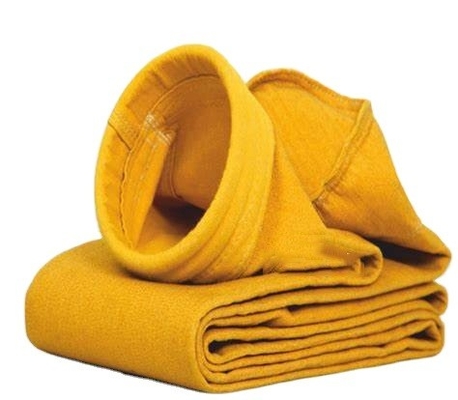

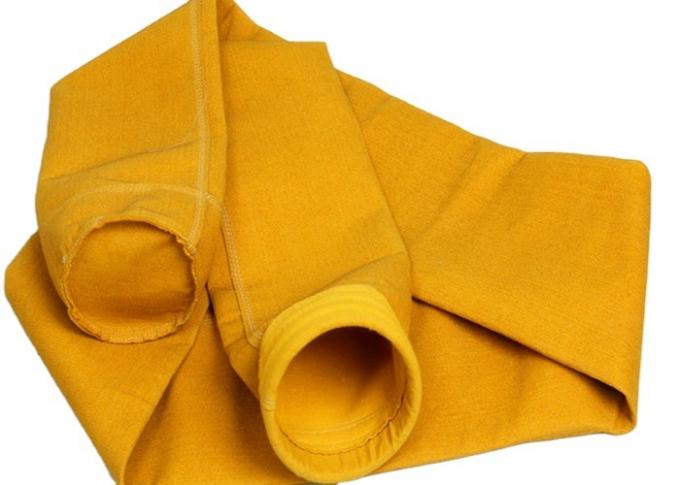

high temperature Nomex aramid filter bag for cement industry dust collector
Feature
1.The filter cloth is based on the thickness of the whole filter layer and belongs to deep filtration
2. the depth of the whole filter layer is formed from the fiber into a three-dimensional porous structure, from the inside and outside to the outside
Dense, forming gradient filtering
3. high pollution capacity, long filtration life, low pressure difference
4.Repeated cleaning, economic benefits
Application
1) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations
2) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals
3) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers
4) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics
5) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster
6) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.
material | Nomex Aramid fiber /nomex aramid scrim | |||
Weight (g/m2) | 450 | 500 | 550 | |
Thickness (mm) | 2.0 | 2.2 | 2.4 | |
Air permeability(m3/m2/min) | 21 | 17 | 14 | |
Tensile strength | warp | >800 | >800 | >800 |
weft | >1100 | >1200 | >1300 | |
Tensile elongation | warp | <35 | <35 | <35 |
weft | <55 | <55 | <55 | |
Broke strength(Mpa/min) | 2.55 | 2.40 | 2.35 | |
Working temperature(ºC) | ≤204 | ≤204 | ≤204 | |
Peak temperature (ºC) | 250 | 250 | 250 | |
Anti Acidic | good | |||
Anti alkaline | excellent | |||
Anti wearing | excellent | |||
hydrolisis | good | |||
Finishing treatment | Heat setting ,singeing ,calendering,PTFE process |
Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.

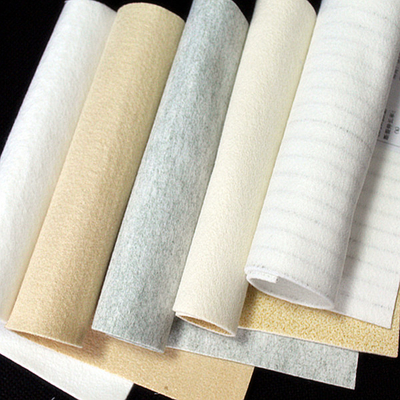

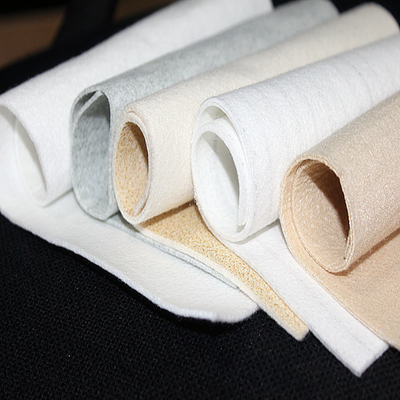

Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.
The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer's praise.
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, balance before shippment.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
Q:What should I do if I'm not satisfied with your product?
A:Please contact us as soon as possible and tell us where went wrong.We can only accept refund or exchange if there is any quality issue.
IF you have some interesting please contact us without any hesitate, we will reply you within 24 hours and welcome to have a visit to our factory for more further business and know each other better. We do have the keen interesting to cooperate with you near future.
