Model NO.: | PH00038 | Filtration Grade: | Medium Filter |
---|---|---|---|
Filter Bag Sectional Shape: | Round Bag | Filter Bag Environment: | Room Temperature |
Cartridge Installation: | Vertical Lifting | Materials: | Polyester , Polypropylene, |
Micron Sizes: | 0.5 Micron To 1000 Micron | Transport Package: | Standard Export Packing |
Specification: | 1m X 1m X 1m | Trademark: | Riqi |
Origin: | China | HS Code: | 5911900 |
Supply Ability: | 5000PCS / Week | Material: | Polyester |
Medium Material: | Microfiber | Cartridge Filter: | Non-Woven Polyester Fiber |
Filter Bag Filter: | Outside The Filter Type | Type: | House Filter Bag |
Usage: | Dust Filter, Liquid Filter, Air Filter | Samples: | US$ 0/Square Meter 1 Square Meter(Min.Order) | Requ |
Customization: | Available | Customized Request | ||
Highlight: | PP 25 Micron Filter Bags,PE 25 Micron Filter Bags,Oil Absorb polypropylene filter bags |

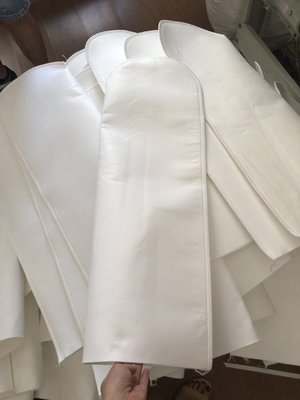

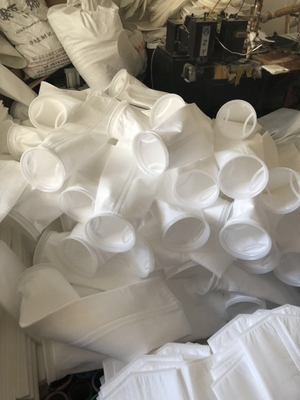

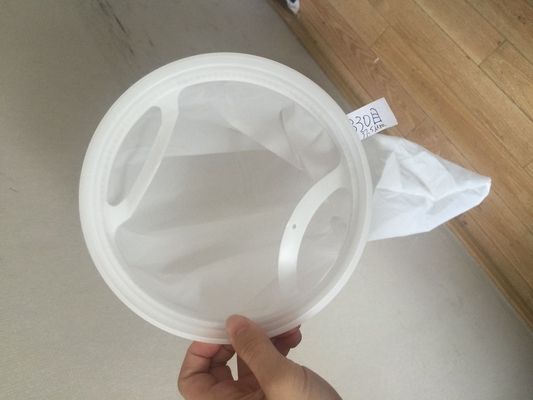

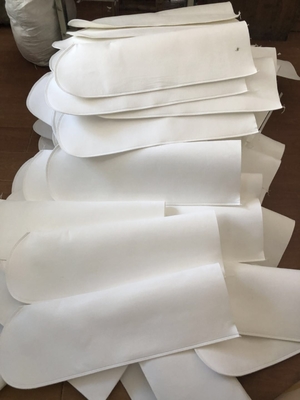

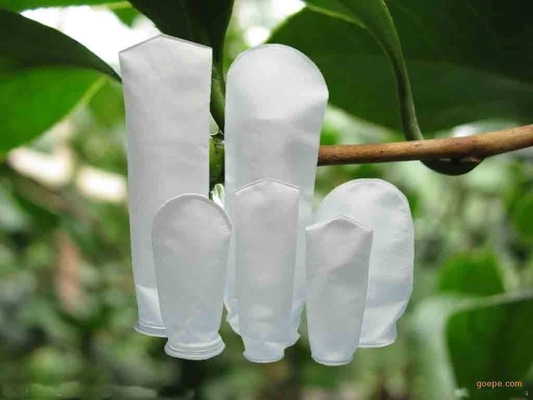

Wholesale 25 Micron PP/PE Oil Absorb Filter Socks/Filter Bag
wholesale 25 micron PP/PE oil absorb filter socks/filter bag
Quick Detail:
Material : PP or PE,polyester, polypropylene
Micron rating : 0.5um ~800um
Good anti-abrasion
High temperature grade
Anti-acid ,anti-alkali, chemical resistance
High porosity ,good air permeability
Laminated compound,grads counterchange
Parameter of PP Liquid filter bag
Specifications:
1. Material:PP non-wowen Felt.
2. 100 micron or as your request.
3. With straw string.
4. Use for powder or air filter .
5. size, shape, packing can be customized.
#1-----(7"x16") -----¢180*410mm
#2-----(7" x 32") -----¢180*810mm
#3-----(4"x 8 1/4") -----¢102*210mm
#4-----(4"x 14") -----¢102*356mm
Material | PE,PP,NMO,PTFE |
Cuff | PP Lock, Stainless steel |
Relative filtration pore size | 0.5, 1,5, 10, 25, 50, 100, 200 µm |
Type | various specifications |
Airtight method: | Hot Melt, reverse sewing |
Effective filtration area | various specifications |
Others | special requirement of diameter and collar extension can be customized |
PRODUCT CODE: | |||
Component | Elongation@50N/5cm | ||
Fibre | 100%PP | Longitudinal(%) | Transverse(%) |
Scrim | 100%PP | <3% | <3% |
Weight(g/m²) | 500 | Operating Temperatures | |
Thickness(mm) | 2.0 | Continuous(°C) | Surge(°C) |
Density(g/cm3) | 0.25 | 130 | 150 |
Mean Air Permeability | 150-250 | Max Dry Shrinkage in 90 minutes:(150°C)(%) | <1% |
Breaking Strength | Surface Treatment | Heat Setting, Singed, | |
Longitudinal(N) | Transverse(N) | ||
>1000 | >1200 |
Notices:
1. Materials avaliable: polyester, polypropylene
2. construction: welded or sewn
3. collar type: steel ring or plastic ring
4. finishing treatment: singed, calendared, heat set
5. Size available: standard and custom size.
Application fields:
1) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations
2) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals
3) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers
4) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics
5) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster
6) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.
Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.
Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.
The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer's praise.
