| Model NO.: | PH00037 | Filtration Grade: | Medium Filter |
|---|---|---|---|
| Filter Bag Sectional Shape: | Round Bag | Filter Bag Environment: | High-Temperature |
| Cartridge Installation: | Vertical Lifting | Materials: | 314, 316 , 316L |
| Micron Sizes: | 0.5 Micron To 1000 Micron | Transport Package: | Standard Export Packing |
| Specification: | 1m X 1m X 1m | Trademark: | Riqi |
| Origin: | China | HS Code: | 5911900 |
| Supply Ability: | 5000PCS / Week | Material: | Stainless Steel Mesh |
| Medium Material: | Microfiber | Cartridge Filter: | Woven Stainless Steel Mesh |
| Filter Bag Filter: | Outside The Filter Type | Type: | House Filter Bag |
| Usage: | Dust Filter, Liquid Filter, Air Filter | Samples: | US$ 0/Square Meter 1 Square Meter(Min.Order) | Requ |
| Customization: | Available | Customized Request | ||
| Highlight: | Microfiber Liquid Filter Bag,304 Liquid Filter Bag,316 Stainless Steel Mesh Filter Bags |
||

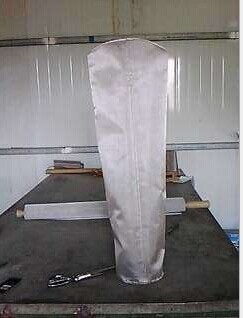

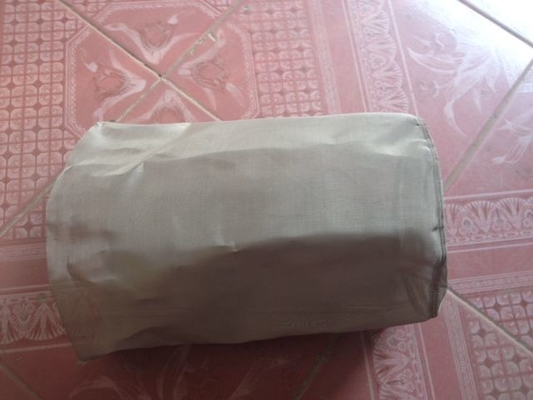

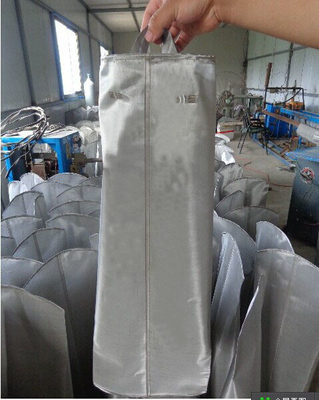

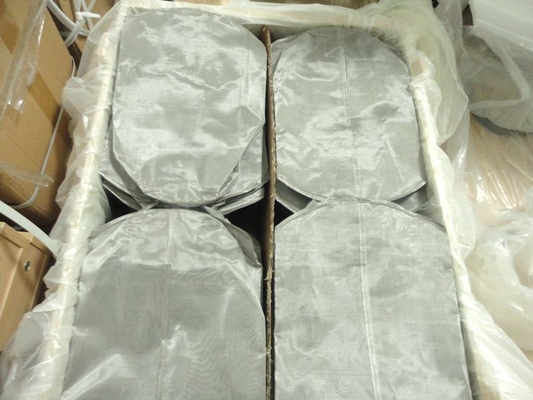

Wire Mesh Filter Bag Stainless Steel 304 316 Filter Bag
Stainless Steel Filter Bags
304, 316 SS woven wire cloth
Different shaped
300 micron to 5 micron filtering rate
Durability
Stainless Steel Filter Bags
304, 316 woven stainless wire cloth
300 micron to 5 micron filter bags
Single layer or multi-layers filter mesh
Different shaped can be choosed
Special design accepted
#1-----(7"x16") -----¢180*410mm
#2-----(7" x 32") -----¢180*810mm
#3-----(4"x 8 1/4") -----¢102*210mm
#4-----(4"x 14") -----¢102*356mm
| Material | PE,PP,NMO,PTFE |
| Cuff | PP Lock, Stainless steel |
| Relative filtration pore size | 0.5, 1,5, 10, 25, 50, 100, 200 µm |
| Type | various specifications |
| Airtight method: | Hot Melt, reverse sewing |
| Effective filtration area | various specifications |
| Others | special requirement of diameter and collar extension can be customized |
PRODUCT CODE: | |||
Component | Elongation@50N/5cm | ||
Fibre | 100%PP | Longitudinal(%) | Transverse(%) |
Scrim | 100%PP | <3% | <3% |
Weight(g/m²) | 500 | Operating Temperatures | |
Thickness(mm) | 2.0 | Continuous(°C) | Surge(°C) |
Density(g/cm3) | 0.25 | 130 | 150 |
Mean Air Permeability | 150-250 | Max Dry Shrinkage in 90 minutes:(150°C)(%) | <1% |
Breaking Strength | Surface Treatment | Heat Setting, Singed, | |
Longitudinal(N) | Transverse(N) | ||
>1000 | >1200 | ||
Notices:
1. Materials avaliable: polyester, polypropylene
2. construction: welded or sewn
3. collar type: steel ring or plastic ring
4. finishing treatment: singed, calendared, heat set
5. Size available: standard and custom size.
Application fields:
1) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations
2) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals
3) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers
4) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics
5) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster
6) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.
Hangzhou riqi filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.
Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.

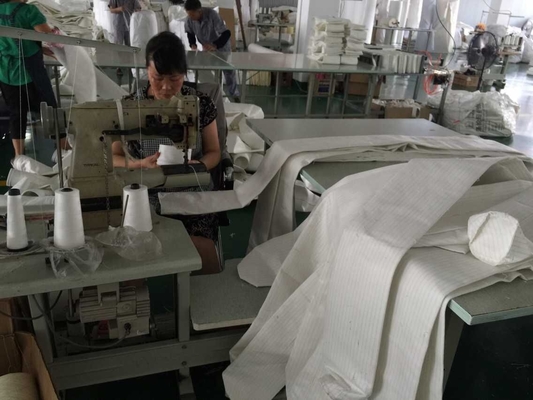

The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer's praise.
