| Specification: | Customized Size | Trademark: | Philis |
|---|---|---|---|
| Origin: | China | Supply Ability: | 10000PCS/Week |
| Material: | Galvanized Steel Wire | Type: | Filter Cages |
| Usage: | Dust Filter, Air Filter | Filtration Grade: | HEPA Filter |
| Filter Bag Environment: | Room Temperature | Transport Package: | Standard Export Package |
| Samples: | US$ 30/Piece 1 Piece(Min.Order) | Request Sample | Customization: | Available | Customized Request |
| Highlight: | Oval Nylon Mesh Filter Bag,Flat Nylon Mesh Filter Bag,Carbon Steel Dust Collector Cages |
||

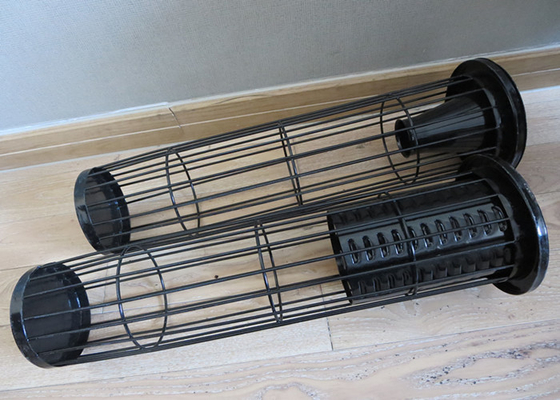

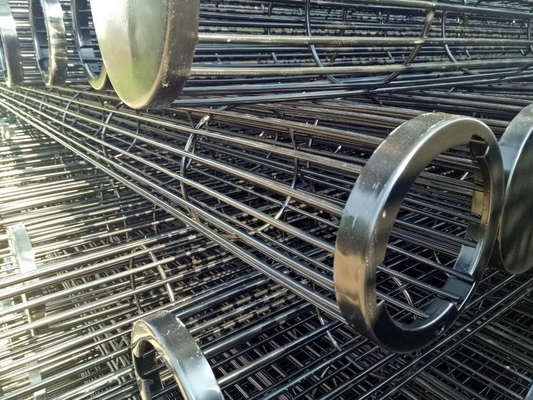

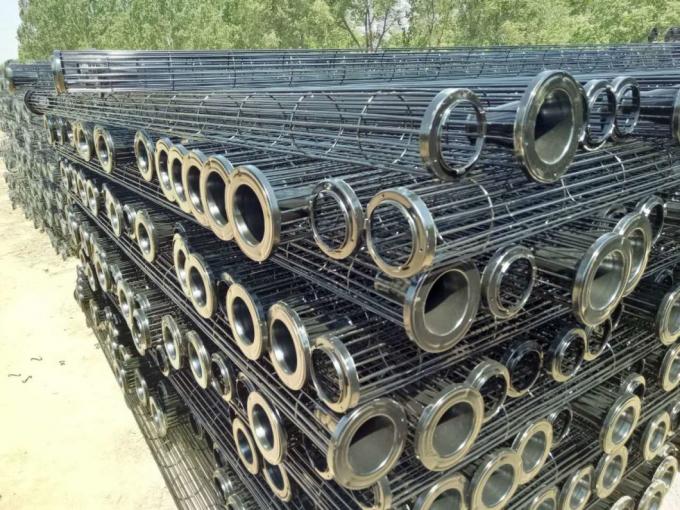

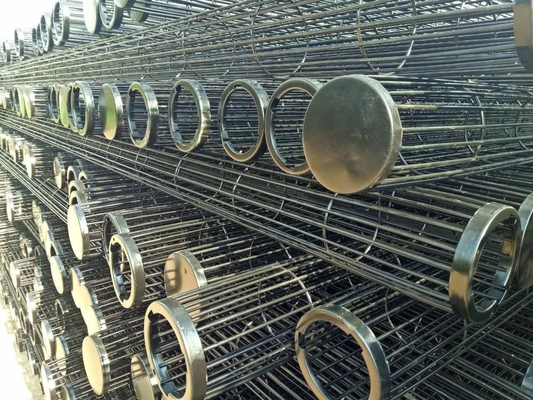

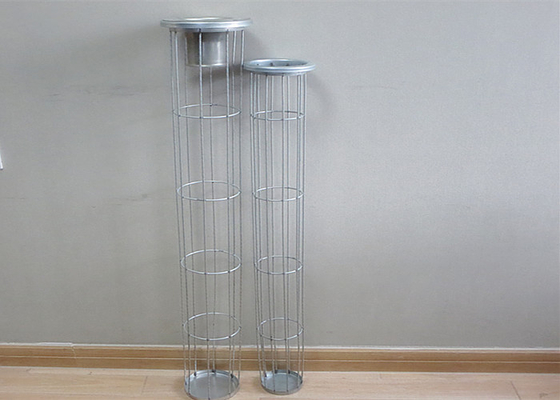

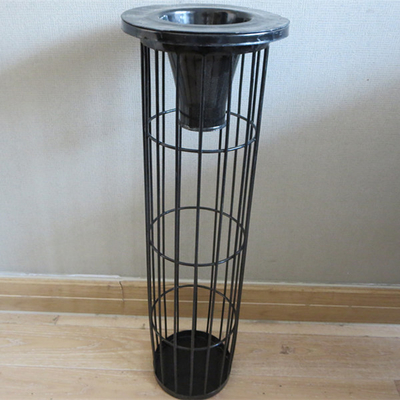

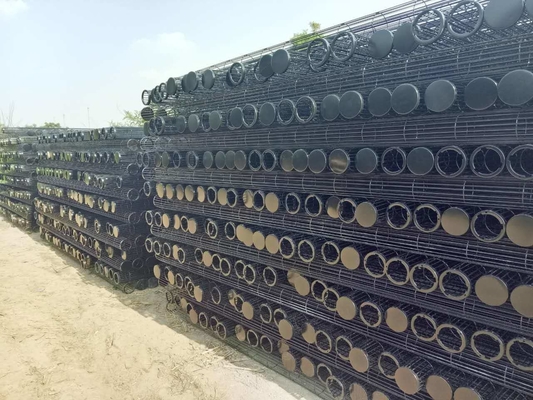

Flat / Oval Bag Filter Cage Carbon Steel Dust Collector Cages with Venturi
Flat / Oval Bag Filter Cage Carbon Steel Dust Collector Cages with Venturi
Quick Detail:
1. Ventury filter cages-ISO9001:2008 Certified
2. Carbon or stainless steel
3. Galnanized or silicon plated surface
4. Any size
Description:
bag Filter cage with Zinc galvanized Surface Finish
using the advanced hot-melt jointing technology. The jointing method of bag bottom, side and collar ring all are hot-melt welded, that can avoid the pinholes from seam filter bag.
The Filter bag cage is a rib filter cage and it should be light and easy for installation and maintenance. The quality of a cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.
1.Filter bag cage to be galvanized/silicon coating
2.Carbon or Stainless steel
3.ISO9001:2008 Certified
5.Any length or dia.
The filter bag cage is the support of filter bag and it should be light and easy for installation and maintenance. The quality of filter cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.
1.material of cage: carbon steel or SS304,316,316L
2.type of cage: any style
3.type of the horizontal bar: round ring or star or envelop or oval
4.surface treatment: zinc-galvanization or silicon coating or epoxy
5.style of connection: clamp, chuck, claw join connection
6. Nos of wires: 8,10,12,16,20,24
7. The diameter of the longitudinal wire can be Φ3mm, Φ3.2mm, Φ3.5mm, Φ3.8mm or Φ4mm.
The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the cage can be according with the requirement from client.
| Specifications | |||
| Types: | Round Style/Flat Style/Envelope Style/ Special Style | ||
| Number Of Wires: | 8/10/12/16/20/24 vertical wires | ||
| Ring Space: | Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm) | ||
| Cage Diameter: | Cage diameters range from 4 inch to 8 inch (100mm to 200mm) | ||
| Wire thickness: | Wire thickness ranges are 2mm to 5mm | ||
| Material: | Carbon Stee, Galvanized Steel, Stainless Steel | ||
| Finishment: | Epoxy, PVC vinyl coating | ||
| Packaging: | Cages are packed in custom designed cartons | ||
| Usage: | Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments. |
||
| Advantages: | 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel 4. economical maintenance(almost no Maintenance required) 5.prominent effect in removing dust from Filter by pulsing 6.easy to install 7.no ventury installation required |
||
| Standard Technical Data | |||
| Round Style | Diameter(mm) | Bag Diameter(mm) | Length(mm) |
| 115 | 120 | 2000,2400 2800, 3200,3600,4000, 4400,4800,5200, 5600,6000,7000 |
|
| 125 | 130 | ||
| 147 | 152 | ||
| 195 | 200 | ||

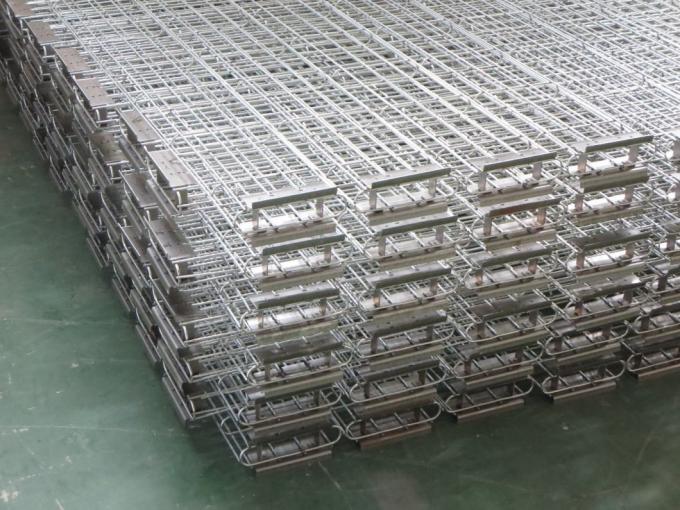

| Flat Style | Perimeter | Bag Perimeter | Length(mm) |
| 800 | 800 | 2000 3000 4000 5000 6000 |
|
| 900 | 900 | ||
| Envelope Style | Length Width Thickness | Bag Length Width Thickness | |
| 1500X750x25mm |
1500X750x25mm |
||
|
Goods Name |
Standard |
Description |
Goods Name |
Standard |
Description |
|
Clamps |
φ180 |
Spring curb |
120*2 |
Normal quenching steel belt |
|
|
φ230 |
130*2 |
||||
|
φ250 |
150*2 |
||||
|
φ260 |
200*2 |
||||
|
φ292 |
292*2 |
||||
|
φ300 |
300*2 |
||||
|
Hoop |
φ160 |
φ300-φ270 using wire rod ofφ4.2 |
120*2.5 |
||
|
φ170 |
130*2.5 |
||||
|
φ180 |
150*2.5 |
||||
|
φ200 |
182*2.5 |
||||
|
φ210 |
202*1.3 |
Quenching stainless steel belt |
|||
|
φ250 |
φ180 using wire rod of φ3.3 |
127*1.5 |
|||
|
φ260 |
127*1.9 |
If it is highly corrosive, we can use titanium curb |
|||
|
φ280 |
130*2.5 |
||||
|
φ292 |
φ260-φ180 using wire rod of φ3.8 |
150*2.5 |
|||
|
φ300 |
129.6*2.5 |
||||
|
φ400 |
280*2 |
||||
|
φ615 |
Pendant chain device |
Hung huang, pendant chain |
|||
|
Cap |
180 |
upper cap lower cap |
|||
|
200 |
|||||
|
230 |
Venturi tube |
Carbon steel |
|||
|
250 |
Aluminum |
||||
|
292 |
Stainless steel |
||||
|
300 |
Unifying covering cap and venturi tube(integration) |
||||
|
Filter cage |
Material: hard-drawn wire |
Galvanization treatment |
Normal |
Yellow |
|
|
White zinc plated treatment |
High quality |
Light silver |
|||
|
Organic silicon treatment |
Black |
||||
|
Material: stainless steel |
201-316L |
||||
|
Any special requirement and production can be processed according to buyer's sample(with drawing)
|
|||||
Applications:
Power Stations
Filtered dust
Flue ash, discharging flue ash
Coal dust
Building and Construction
Cement, furnace dust, gypsum, limestone, finely ground quartz,
Calcium hydroxide, lead monoxide, quicklime, acid crystals,
Pure clay, phosphates, magnesite concentrate, finely ground
fluorid, production of aluminum
Chemical Industry
Thomas meal (Fertilizer)
Rubber compounds, sinter dust, catalysts
Sodium sulfate
Soap powder
