Liquid Filter Bag
Created with Pixso.

Mesh Liquid Bag Filter Housings Non Woven ISO Certification

Mesh Liquid Bag Filter Housings Non Woven ISO Certification

Brand Name: RIQI
Detail Information
Place of Origin:
Hangzhou
Certification:
ISO9001 SGS
Filter Bag Sectional Shape:
Round Bag
Filter Bag Environment:
Room Temperature
Transport Package:
Standard Export Package
Specification:
0.5-300 Micron
Trademark:
Philis
Origin:
China
Supply Ability:
10000PCS/Week
Material:
Non-woven
Cartridge Filter:
Non-Woven Polyester Fiber
Filter Bag Filter:
The Filter Type
Type:
Pocket Filter
Usage:
Liquid Filter
Filtration Grade:
Medium Filter
Samples:
US$ 3/Piece 1 Piece(Min.Order) | Request Sample
Customization:
Available | Customized Request
Highlight:

Non Woven Liquid Bag Filter Housings

,

ISO Liquid Bag Filter Housings

,

ISO mesh liquid filter bag

Product Description

Filter Bag Supplier for Liquid Bag Filter Housing


Product Description

Company Info.

Customer Question & Answer

Ask something for more details

Basic Info.

Filter Bag Sectional Shape
Round Bag
Filter Bag Environment
Room Temperature
Transport Package
Standard Export Package
Specification
0.5-300 micron
Trademark
philis
Origin
China
Production Capacity
10000PCS/Week

Product Description

Filter Bag Supplier For Liquid Bag Filter Housing

Quick Detail:
1. High quailty
2. Competitive price
3. ISO certification
4. Strict quality control



Parameters of Liquid Filter Bag

Material

PE,PP,Nylon

Bag top ring

Plastic ring, Stainless steel ring, Galvanized wire ring

Filter ratings

1, 5, 10, 25, 50, 100, 150,200 , 300µm,etc.

Type

various specifications

Airtight method:

weld, reverse sewn, outside sewn

Effective filtration area

various specifications

Others

special requirement of diameter and collar extension can be customized



Item

Dia(inch)

Length(inch)

mm

1#

7″

17″

180X420

2#

7″

32″

180X820

3#

4″

9″

100X230

4#

4"

16″

100X410

5#

6"

21″

152x520


Specification of liquid filter bag


Fiber

Abrasion resistance

Weakly acid

Strongly acid

Weakly alkali

Strongly alkali

Solvent

Temperature (°C)

PE

Very good

Very good

Good

Good

Poor

Good

130-150

Nylon

Excellent

General

Poor

Excellent

Excellent

Good

135-149

PP

very good

Excellent

Excellent

Excellent

Excellent

General

90-110




Advantages of Liquid Filter Bag
1. Inside-outside flow configuration : It can capture contaminants effectively on the inside.
2. Plastic or steel seal : It is necessary and helpful for prevention of fluid bypass and subsequent             contamination of the downstream fluid. All of our good performance filter bags are provided in both     plastic and steel ring sealing collar versions that will be fit for most filter bag manufactures'                     housings.
3. Welded seams and thermally treated exterior surfaces It is efficient for control of fiber migration.
4. Our material has the special ability to handle viscous fluids.

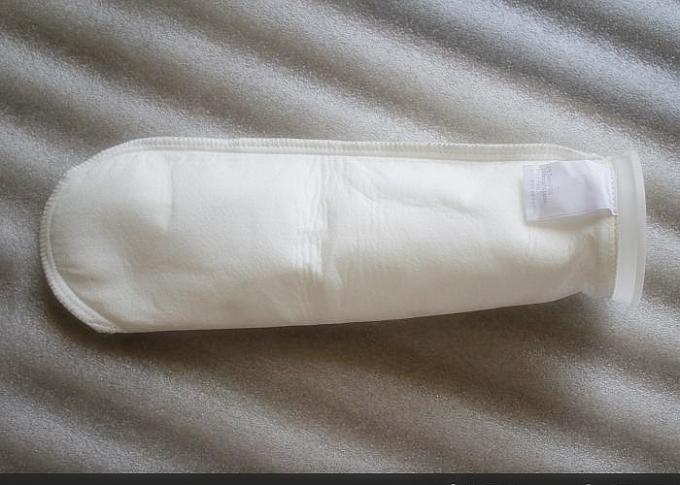

Filter Bag Supplier for Liquid Bag Filter Housing

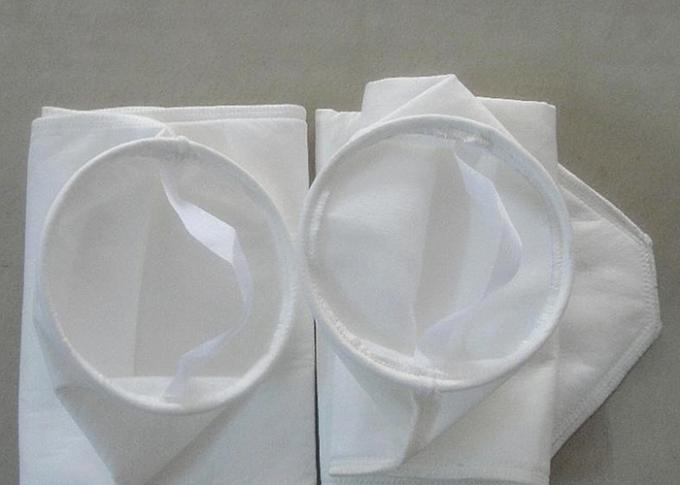

Filter Bag Supplier for Liquid Bag Filter Housing

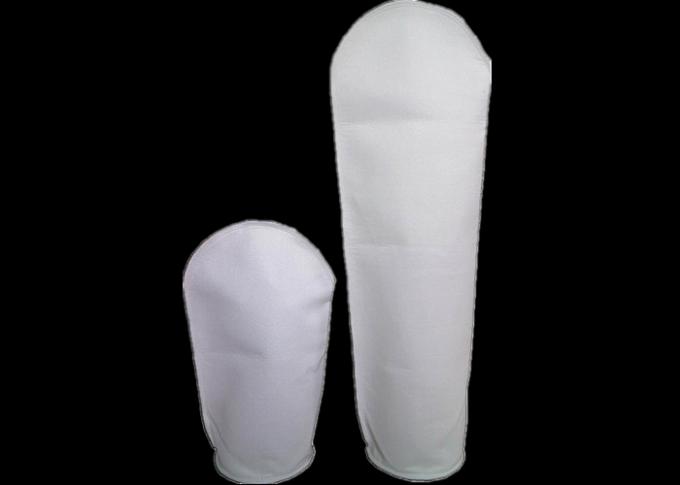

Filter Bag Supplier for Liquid Bag Filter Housing


FAQ

1. May I get samples?
Yes,
For OEM sample, usually takes about 5~15 days, it depends on design and technique.
2. Can you make my logo on package?
Of course! You only need provide us your original logo file or clear picture, so we can make it.
3. What is the payment method?
Bank transfer (T/T), Western Union, Money gram, L/C, paypal

4. How long production takes?
It is usually in 5~7 days after getting your payment and all the details confirmed.
