Model NO.: | PH00057 | Condition: | New |
---|---|---|---|
Material Feature: | Heat Resistant | After Sevice: | No Overseas Service Provided |
Feature: | Anti-Static, Tear-Resistant, Shrink-Resistance | Color: | White,Red,Blue,Black,Green |
Materials Available: | Pet,PA,Stainless Wire | Width: | 0-7m |
Application: | Non-Woven Forming,Dryer , Dewatering | Transport Package: | Standard Exporting Package |
Specification: | 1m X 1m X 1m | Trademark: | Philis |
Origin: | China | HS Code: | 5911900000 |
Supply Ability: | 50000PCS / Week | Material: | Pet , Polyester100% Polyester |
Layers: | Single | Usage: | Liquid Filter, Air Filter, Solid Filter |
Type: | Filter Elements | Hole Shape: | Square |
Structure: | Single Network | Samples: | US$ 0/Piece 1 Piece(Min.Order) | Request Sample |
Customization: | Available | Customized Request | ||
Highlight: | Polyester Mesh Screen Fabric,Mesh Screen Fabric Plain Weave,Non Woven screen cloth mesh |

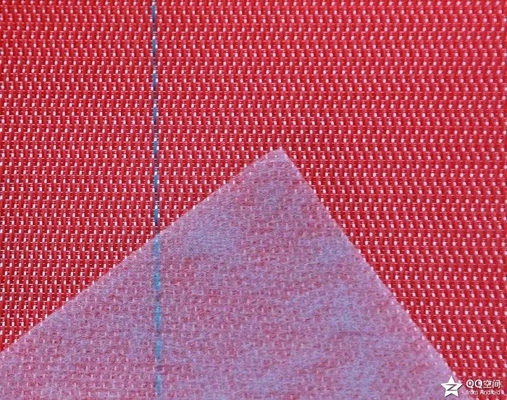

China Manufacturer Plain Weave Polyester Forming Mesh Screen Fabric for Non-Woven Filter Cloth

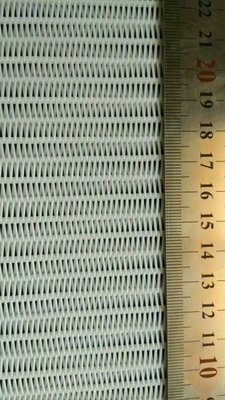

Polyester Spiral Press-filter Fabrics is suitable for high-pressure press-filter washer, horizontal belt washer, pulp-liquor separator and netting belt coal-washer.
belt for non-woven fabric
1. USAGE

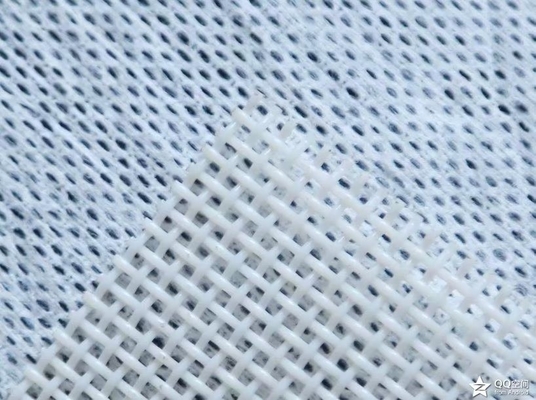

for spunbonded nonwoven cloth forming
Model 22504
diameter of warp:0.50mm
diameter of weft:0.50mm
density of warp:24thread/cm
density of weft:12thread/cm
weight :1.26kg/m2

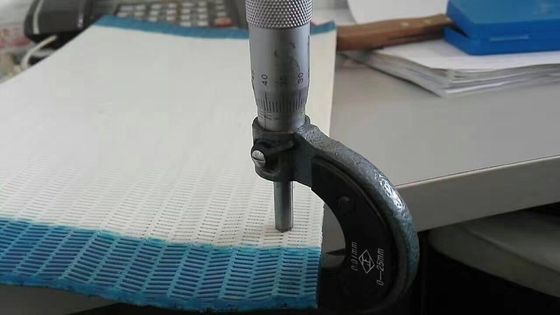

thickness:2.1mm
CFM: 950

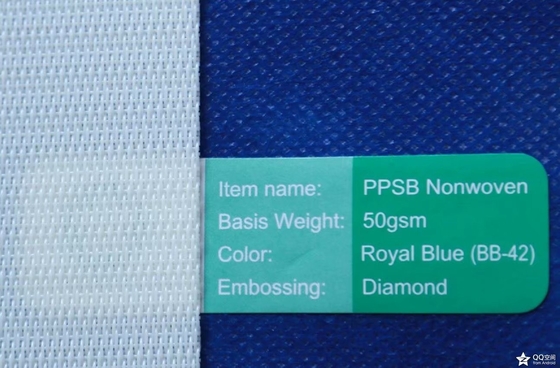

used in spunlaced nonwoven cloth
Type-BW05902
diameter of warp:0.9mm
diameter of weft:0.9mm
density of warp:5 yarn/cm
density of weft: 5 yarn/cm
opening: 20%
inch: 14
aperture: 0.80mm*0.90mm
SPECIFICATIONS:

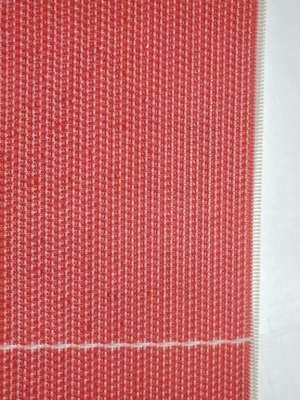

-Polyester Dryer Conveyor Belt
Polyester dryer conveyor belt introduction:
Details | 1) According to the weaving,polyester dryer conveyor belt can be divided into 3-shed,4-shed; |
2) According to the category,polyester dryer conveyor belt can be divided into one and a half layer,double-layer and flat wire farbic; | |
3) According to the joint types,it can be divided into insert,pin ring and spiral ring joint.
|
|
Feature | 1) Waterproof,good air and water permeability |
2) High strength,stable property | |
3) Shrink-resistantnd heat resistance under 180 degrees | |
4) Easy to clean and install,straight run
|
|

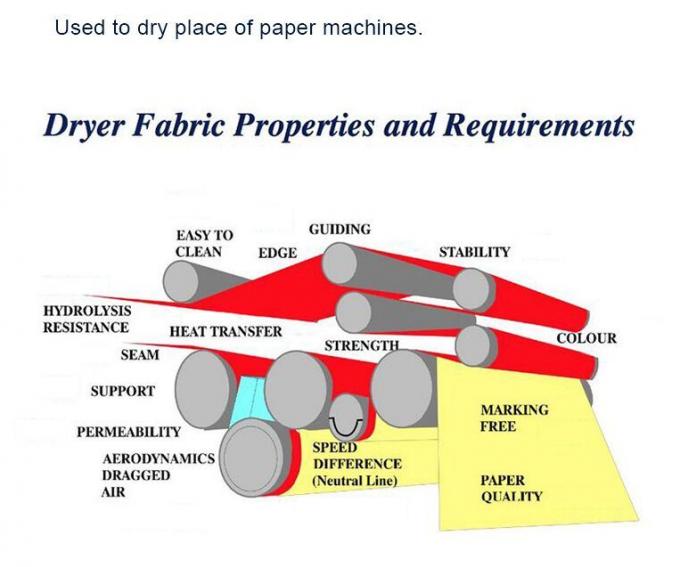

Application | 1) 3-shed one and a half layer polyester dryer conveyor/fabric belt is suitable for drying papers less than 70g,4-shed double-layer fabric is suitble for drying papers more than 70g,Flat wire dryer fabric is suitable for the fore hearing box of the drying zone. |
2) Polyester dryer conveyor belt(dryer farbic belt) is also used for drying in food processing,medicine drying,paper forming etc. |
Polyester dryer conveyor belt specification:
Weaving Types |
Model |
Thread Dia.(mm) |
Density(No.s/cm) |
Srength |
Air Permeability |
||
Warp |
Weft |
Warp |
Weft |
||||
3-shed |
22503 |
0.5 |
0.5 |
24 |
12 |
2000 |
8000 |
22453 |
0.45 |
0.45 |
24 |
13 |
2000 |
8500 |
|
24503 |
0.5 |
0.5 |
25 |
12 |
2000 |
7000 |
|
24453 |
0.45 |
0.45 |
25 |
13 |
2000 |
6700 |
|
4-shed |
20504 |
0.5 |
0.5 |
22 |
12 |
2000 |
15000 |
22504 |
0.5 |
0.5 |
24 |
12 |
2000 |
12000 |
|
24504 |
0.5 |
0.5 |
26 |
12 |
2100 |
11000 |
|
18504 |
0.5 |
0.5 |
20 |
11 |
1800 |
8000 |
|
round wire fabric |
4106 |
0.5 |
0.7 |
22.8 |
12.4 |
2200 |
6800 |
0.3 |
|||||||
Flat wire fabric |
4106-1 |
0.58 |
0.35 |
21 |
15 |
2000 |
2500 |
0.37 |
0.68 |
||||||
4106-2 |
0.58 |
0.35 |
21 |
14 |
2000 |
3000 |
|
0.37 |
0.68 |
||||||
4106-3 |
0.58 |
0.35 |
21 |
13 |
2000 |
4000 |
|
0.37 |
0.68 |
||||||
4106-4 |
0.58 |
0.35 |
21 |
13.5 |
2000 |
3500 |
|
0.37 |
0.68 |
Product Details
