Square Hole Shape Press Filter Cloth Fabrics Polyester / Synthetic

Square Hole Shape Press Filter Cloth Fabrics Polyester / Synthetic
Square Hole Shape Press Filter Cloth Fabrics Polyester / Synthetic Square Hole Shape Press Filter Cloth Fabrics Polyester / Synthetic Square Hole Shape Press Filter Cloth Fabrics Polyester / Synthetic

Large Image :  Square Hole Shape Press Filter Cloth Fabrics Polyester / Synthetic

Product Details:
Place of Origin: Hangzhou
Brand Name: RIQI
Certification: ISO9001 SGS

Square Hole Shape Press Filter Cloth Fabrics Polyester / Synthetic

Description
Supply Ability: 100000m/Month Transport Package: Standard Export Package
Specification: 100m /roll Trademark: Philis
Origin: China HS Code: 5911200090
Material: Polyester Usage: Liquid Filter
Type: Woven Filter Hole Shape: Square
Manufacturing Method: Manufacturing Cloth Paper Type: Qualitative
Samples: US$ 10/Square Meter 1 Square Meter(Min.Order) | Req Customization: Available | Customized Request
High Light:

Synthetic Press Filter Cloth

,

Polyester Press Filter Cloth

,

Square Hole polyester filter cloth

Polyester / Synthetic Fabrics for Belt Filter Presses



Product Description

Company Info.

Customer Question & Answer

Ask something for more details

Basic Info.

Transport Package
Standard Export Package
Specification
100m /roll
Trademark
philis
Origin
China
HS Code
5911200090
Production Capacity
100000m/Month

Product Description

Polyester / Synthetic fabrics for belt filter presses


Product Details

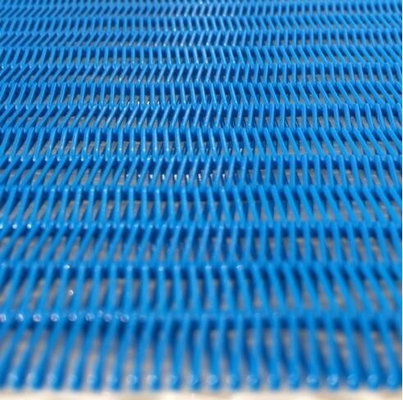

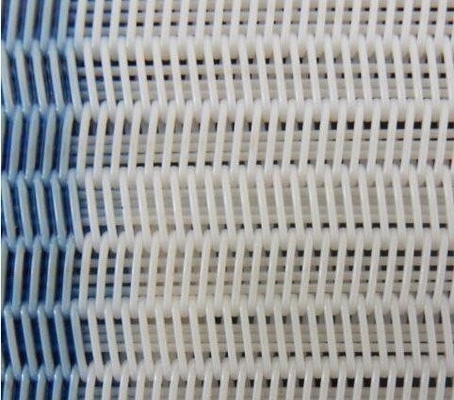

  • Filtration spiral dewatering mesh belts are add the filler wire into the spiral ring, so the air permeability is reduced and less material loss on the surface of the fabric.



  • Filtration spiral dewatering mesh belts are mainly used in paper making, printing and dyeing, food, pharmaceutical, ceramics and solid-liquid separation industries like sludge dehydration.



  • Filtration spiral dewatering mesh belts is suitable for high-pressure press-filter washer, horizontal belt washer, pulp-liquor separator and netting belt coal-washer. It has been extensively used in all kinds of industries such as printing and drying, food, salt industry, pharmaceutical, environment protection, process hides, shoe-making, clothing, pottery and other conveyable belt etc

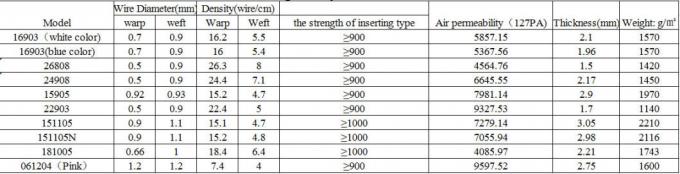

Technical data


Type

Specification of single loop
mm

Monofil diamater mm

Strength
N/cm

Thickness mm

Weight of mesh m2kg

 Air permeability
m3/m2h

Spiral loop monofil

Threading

Super loop

4.8X10

0.9

1.1

2300

3.03

1.64

21000

Large loop

3.8X7.0

0.68

0.9

2000

2.45

1.40

18000

Medium loop

3.5X6.0

0.68

0.9

2000

2.45

1.31

16000

Small loop

3.2X5.2

0.5

0.8

1800

1.87

0.97

15000

Polyester / Synthetic Fabrics for Belt Filter Presses

Polyester / Synthetic Fabrics for Belt Filter Presses
Polyester / Synthetic Fabrics for Belt Filter Presses
Polyester / Synthetic Fabrics for Belt Filter Presses




Applications

1.Widely used in the production of cardboard with a net, kraft paper, corrugated paper, paper of train tickets and single whiteboard paper;

2.Instead of dry blanket, canvas of paper machine drying;

3.Also widely used in coal mining, food, medicine and other industries of conveyor equipment.


Advantages

1.Has the acid and alkali resistance, wear resistance, high temperature resistant, long service life

2.With smooth surface, the tensile strength, permeability is good.

3. According to user requirements in filling in the grid round wire (2 to 5) (a) or black flat silk, adjust at porosity, meet the process requirements.

4.Carbon fiber through internal fill to achieve antistatic effect, with high temperature resistance, wear resistance, etc

5.Size length can be cut, and thus solve the problem of the influence because of the size is not accurate to use.

6.Install easy to use, interface without imprint


Packaging & Shipping

1. wooden / polywood boxes + water proof plastic bag for sea

 2. water proof plastic bag for air

 3. as the customer requirements

Polyester / Synthetic Fabrics for Belt Filter Presses


Our Services

1. Samples: free samples with detail specification for you to choose.

 2. We will make the exact specifications as customer's requirements.

 3. We have ten engineers waiting to help you solve the problems when using our mesh fabrics,belt


FAQ



1. Q:  How to confirm the type?

   A:  There are many methods for us to confirm the type:

        1). tell us the specifications data.

        2).tell us your requirements as more as possible, and our engineers will give you the best
            suggestion and design the most suitable mesh/ wire/ fabrics/ screen/ belt.

        3). send us the photos with size

        4). send us a small piece sample.



2. Q: Waht is the payment terms?

    A:  We prefer T/T, but for some countries, we will also accept L/C.

So pls feel free about the payment.



3. Q: When will delivery the goods?

    A: Usally, we will deliver the goods within 15 working days. And if the quantity is big, it will take            about 20-30 working days.



4. Q: How long will the fabirc/wire/screen/belt/mesh be used?

 A: The time is different differ the usage and factory.


5. Q: Is the package strong enough for the long transportation?

    A: Of course it is.

        By sea, we will pack every piece into wooden/ polywood box.

        By air, we will pack it by strong water-proof bag.
