Airslide Belt Fabric for Cement Plant Industrial Textile

Airslide Belt Fabric for Cement Plant Industrial Textile

Specification: Customized Size Trademark: Philis
Origin: China Supply Ability: 5000m/Week
Type: Customized Material: Polyester, Cotton, Aramid
Inside Material: Polyester, Cotton, Aramid Feature: Tear-Resistant, Heat-Resistant, Wear-Resistant
Tensile Strength: Strong Transport Package: Standard Export Package
Samples: US$ 5/Piece 1 Piece(Min.Order) | Request Sample Customization: Available | Customized Request

Product Description

Company Info.

Customer Question & Answer
Ask something for more details

Basic Info.

customized size
Production Capacity

Product Description

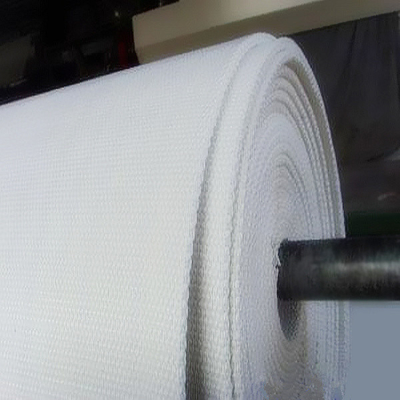

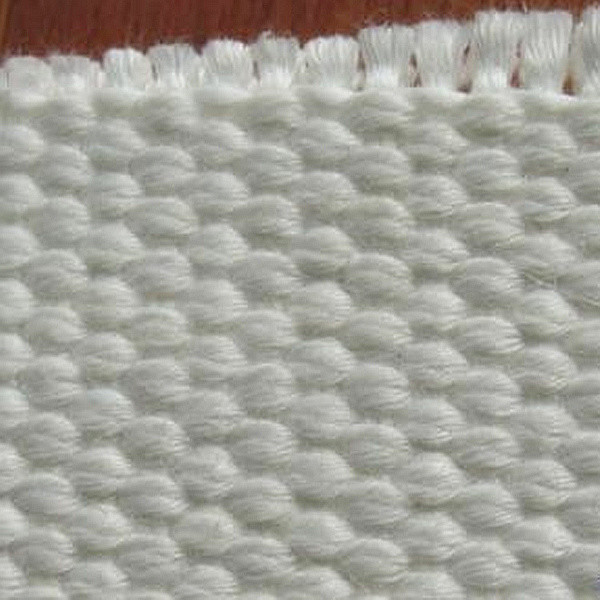

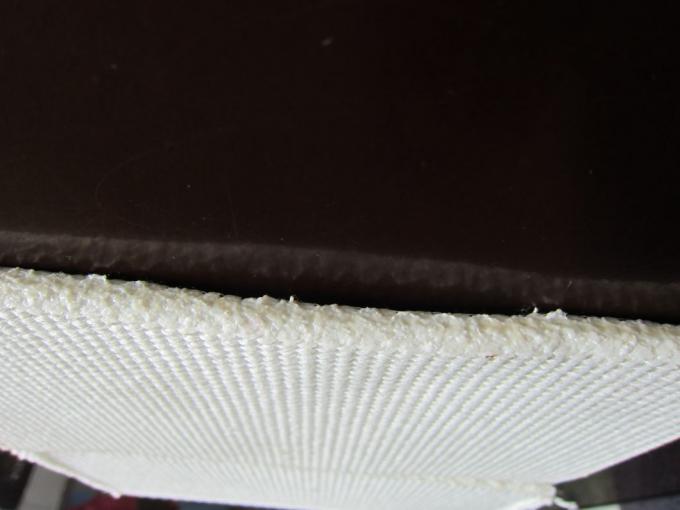

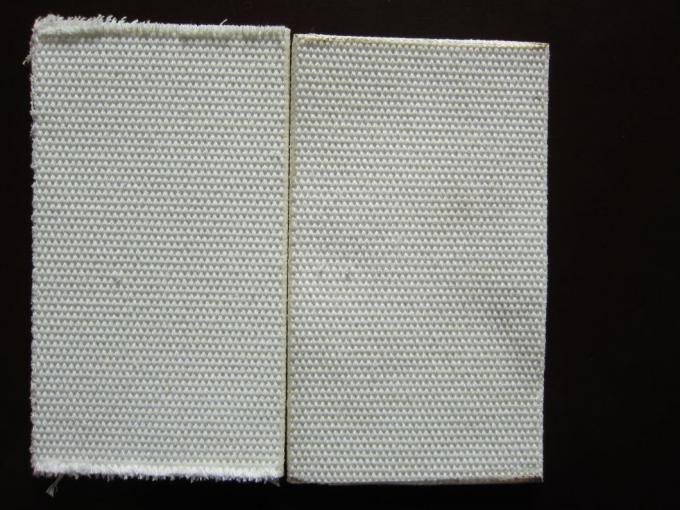

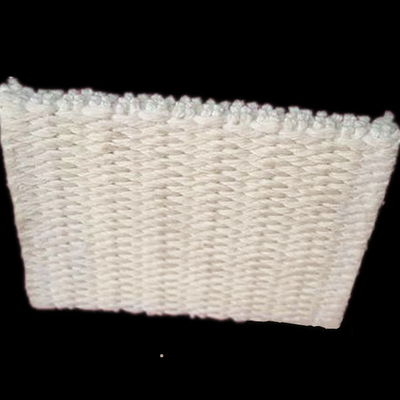

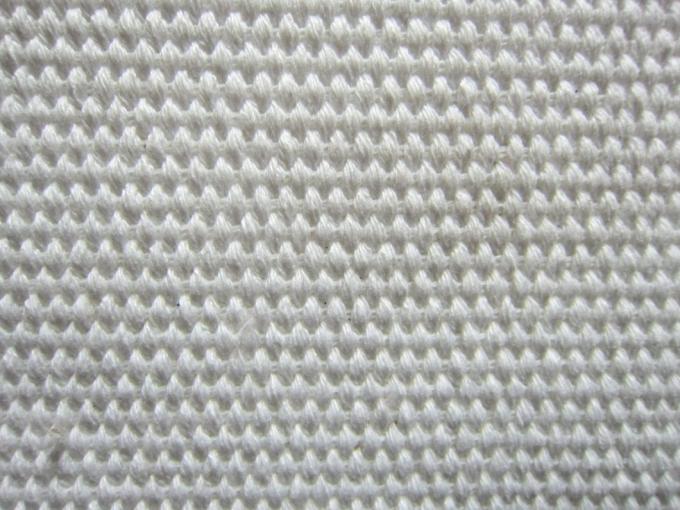

Airslide belt fabric for cement plant industrial textile
  1)  clear veins, smooth surface, stable size, no deformation
  2)  super air permeability, even airflow, stable
  3)  heat resistance, abrison resistance, corrosion resisrance
  4)  low energy dissipation, long service life, free repair
  5)  support OEM order
   6)  MOQ:1m2
Specification data:
Raw Material =100% spun fiber polyester
Weight in average = 4000 g/m2
Thickness = 5mm
Mean Air Permeability = 400 m3/m2h @350H2O
Pressure: 2000pa for middle air resistance
                   4000pa for high air resistance
Breaking Strength- Warp=>6000 N/5cm X 20cm
Breaking Strength- Weft= >3000 N/ 5cm X 20cm
Breaking Elongation - warp=<5%
Breaking Elongation -weft=<5%
Max Width: 2800mm
Operating Temperature  < 150 deg.C
Recommended Maximum Continues <180 deg.C
Recommended Maximum Surge = 180 deg.C
 Advantages in cement industry:
feature: smooth surface with super function,  delaminating resistance, super air permeability, even and stable,    high temperature resistance, abrison resistance, low moisture resistance, low return dust, easy assamble, long service life, super replacement for multi-layer canvas and  Porous ceramic plate.
usage:  mainly used in powdery material air/pneumatic conveying. in cement industry used for  Air conveying chute, All of the library, air lift mud pump,  flow value,   Bulk cement warehouse  in dry feeding equipment.
Advantages in aluminium factory:
feature:  used in large  Prebaked anode cell Concentrated tank transport in Concentrated tank conveying system, like: Cement tanker, feeding system equipment in electric tank, or advanced adjustable feeder.
usage:   equipment which used airslide has no mechanical coveyor parts, so has low enegy consumption, no leakage, reliable working, convenient repair, also with long service life.
Advantages in conveying:
feature: airslide can be assembled on bottom inside tank, like: cement tanker, bulk fly car, bulk cement train, The installation of the cement ship etc.
usage:  after air compressor blowing-in, making the powder material inside tank turn fluid status from solid status, and then unload the material inside tank into designated spot by using pressure difference outside tank.
Technique data:

namematerialwarp tensile strength(N/mm)thickness(mm)temperatuer ≤instant temperature ≤980Pa air permeability (m3/m2min)



polyester≥ 4253~8160 °C 180 °C 0.5~2.5 100~1700
2layerpolyester≥ 2102.5~3160 °C 180 °C 0.5~2.5 100~1700

Cement industies : cement plant ,bulk cement truck and ship
Mining industries  :aluminium,lime,coal,phosphates
Chemical plants   : soda
Power plants       : coal,desulfurize
Food industry      : flour
Powder moves on the fluidization conveyor over  airslide fabrics.
The fluidization conveyor not have power  parts.
Flow is achieved by an air flow through the airslide fabrics that removes friction between  powder and the air-permeating textile materials.
Airslide Belt Fabric for Cement Plant Industrial Textile
Airslide Belt Fabric for Cement Plant Industrial Textile
Airslide Belt Fabric for Cement Plant Industrial Textile
