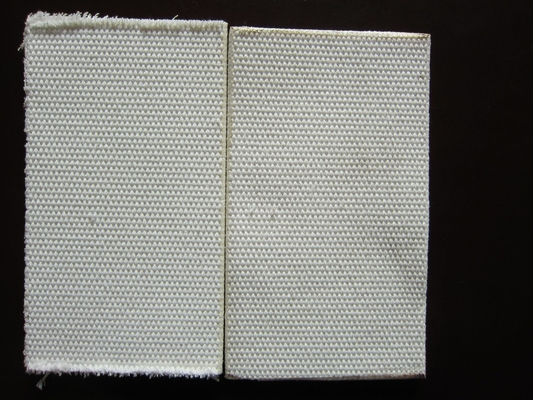

Polyester Canvas Cement Airslide Fabric for Cement Plant

Polyester Canvas Cement Airslide Fabric for Cement Plant

Description
Supply Ability: 5000m/Week Specification: Customized Size
Trademark: Philis Origin: China
Type: Customized Material: Polyester, Cotton
Inside Material: Polyester, Cotton Feature: Tear-Resistant, Heat-Resistant, Wear-Resistant
Tensile Strength: Strong Transport Package: Standard Export Package
Samples: US$ 5/Piece 1 Piece(Min.Order) | Request Sample Customization: Available | Customized Request

Product Description

Company Info.

Customer Question & Answer
Ask something for more details

Basic Info.

Specification
customized size
Trademark
philis
Origin
China
Production Capacity
5000m/Week

Product Description

Polyester canvas cement airslide fabric for cement plant

Specification data:

Raw Material =100% spun fiber polyester
Weight in average = 4000 g/m2
Thickness = 5mm
Mean Air Permeability = 400 m3/m2h @350H2O
Pressure: 2000pa for middle air resistance
                   4000pa for high air resistance
Breaking Strength- Warp=>6000 N/5cm X 20cm
Breaking Strength- Weft= >3000 N/ 5cm X 20cm
Breaking Elongation - warp=<5%
Breaking Elongation -weft=<5%
Max Width: 2800mm
Operating Temperature  < 150 deg.C
Recommended Maximum Continues <180 deg.C
Recommended Maximum Surge = 180 deg.C

Technique data:

namematerialwarp tensile strength(N/mm)thickness(mm)temperatuer ≤instant temperature ≤980Pa air permeability (m3/m2min)

specification(mm)

4layer

polyester≥ 4253~8160 °C 180 °C 0.5~2.5 100~1700
2layerpolyester≥ 2102.5~3160 °C 180 °C 0.5~2.5 100~1700


Advantages

  • No moisture absorption
  • No caking
  • Resistant to rotting and decomposition
  • Complete unloading without residues
  • Consistent fluidization over the complete surface
  • Good resistance to abrasion
  • Low wear and therefore longer life
  • Low shrinkage even when used under hot and humid conditions


Working principle
In cement plant:
An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide belt can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.
In fluidization silo:
Our Airslide canvas is installed on the surface of the silo bottom. It is supplied for installation as aeration units on the sloped conical bottoms of bins and silos to aid in the withdrawal of dry relatively free-flowing material.
Each Airslide aeration unit package consists of 200mm open-type. Airslide conveyor units in lengths of 1.5 or 3m depend on the slope length of the conical storage area. Some spoke patterns are normally used with materials which have good fluidization characteristics. Others spoke patterns provide maximum aeration for difficult materials which can be fluidized.

In cement vessel's hold:
The sloped bottom of the cargo hold is covered with fluidizing panels. Our airslide fabric is on the surface of fluidizing panels. Rotary piston blowers supply the panels with oil-free compressed air and make the cement flow to the lowest point, where the discharge gate is installed.  Powder and particulate material available the Airslide canvas fabric conveyor belt
Application:
In industry
Power Stations: Filtered dust, Flue ash, discharging flue ash, Coal dust
Building and Construction: Cement, furnace dust, gypsum, limestone, finely ground quartz, Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground fluorid, production of aluminum
Chemical Industry:Thomas meal (Fertilizer), Rubber compounds, sinter dust, catalysts,Sodium sulfate, Soap powder

In machinery:
Silos / Tanks : Discharging systems, Warehouse units, Mixing equipment, Homogenizing systems
Chute Bottoms: Conveyor systems, Ventilator systems, Aeration systems
Vehicles : Silo truck discharging cones, Railway wagon discharging cones, Vessel aeration & discharging bottoms, Container aeration & discharging bottoms
Powder Coating Machinery
Bottoms for sinter basin

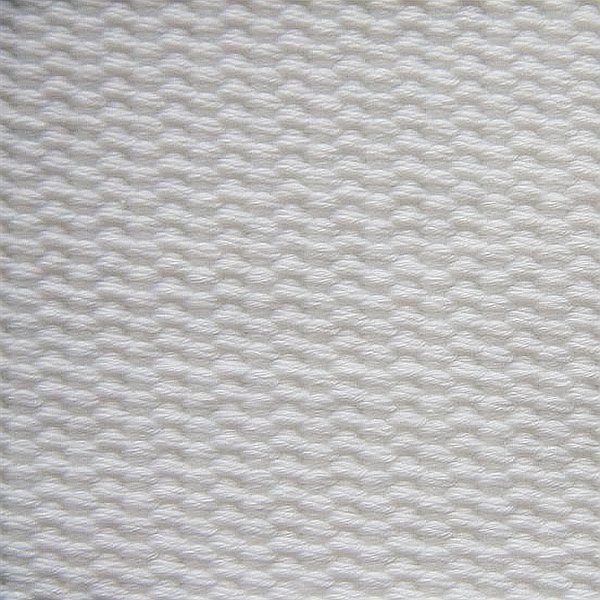

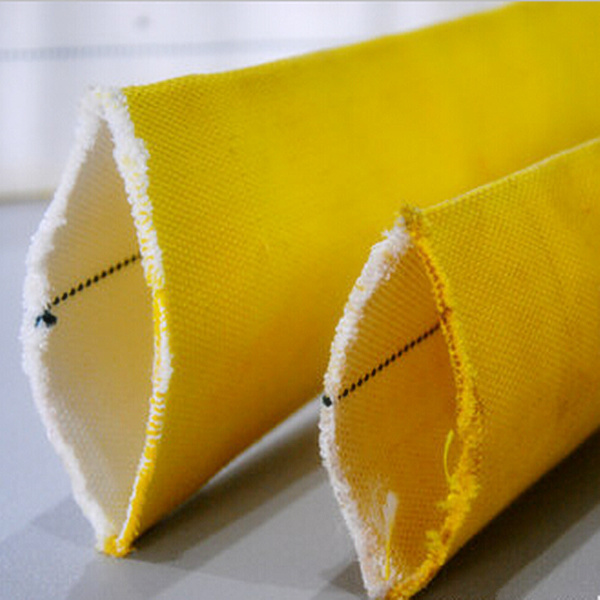

Polyester Canvas Cement Airslide Fabric for Cement Plant

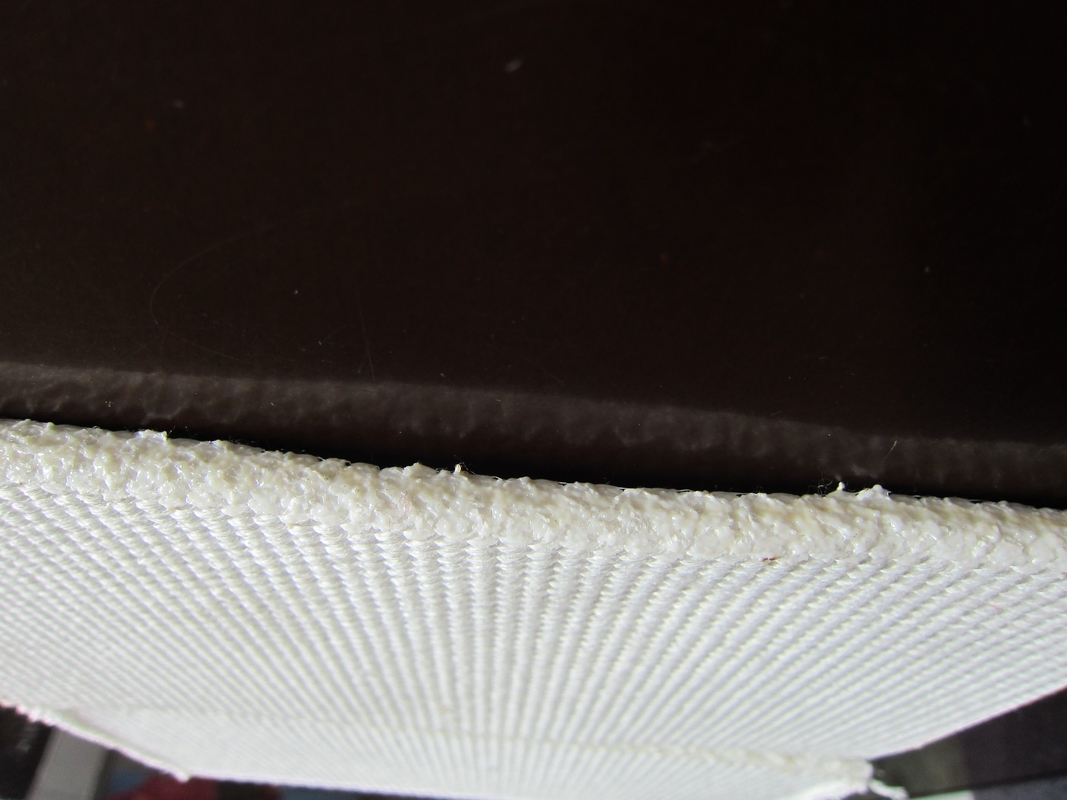

Polyester Canvas Cement Airslide Fabric for Cement Plant

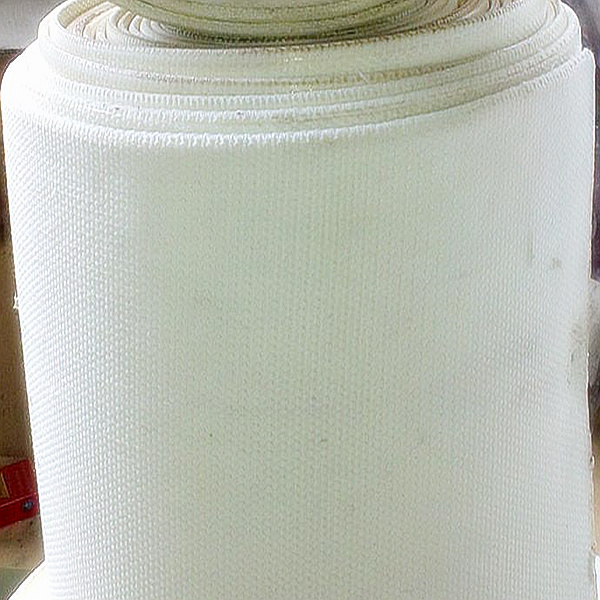

Polyester Canvas Cement Airslide Fabric for Cement Plant
