Model NO.: | PH00099 | Usages: | Cement Plant Or Bulk Cement |
---|---|---|---|
Structure: | Airslide Fabric | Max Width: | 2600mm |
Transport Package: | Standard Export Packing | Specification: | 3200-4800g/m2 |
Trademark: | Philis | Origin: | China |
HS Code: | 5911900 | Supply Ability: | 5000PCS / Week |
Material: | Aramid ,Polyester, 100% Polyester Or 100% Cotton | Usage: | Air Filter, Liquid Filter, Powder Filter, Solid Filter |
Type: | Woven Filter | Hole Shape: | Hexagonal |
Manufacturing Method: | Manufacturing Cloth | Thickness: | 4-8mm |
Samples: | US$ 0/Square Meter 1 Square Meter(Min.Order) | Requ | Customization: | Available | Customized Request |
Highlight: | Polyester Air Slide Material,Woven Air Slide Material |
Polyester Air Slide Woven Fabrics Conveyor Belt
polyester air slide woven fabrics conveyor belt
Air slide Fabrics
In cement plant:
An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide belt can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.
fluidization silo:
Our Airslide canvas is installed on the surface of the silo bottom. It is supplied for installation as aeration units on the sloped conical bottoms of bins and silos to aid in the withdrawal of dry relatively free-flowing material.
Each Airslide aeration unit package consists of 200mm open-type. Airslide conveyor units in lengths of 1.5 or 3m depend on the slope length of the conical storage area. Some spoke patterns are normally used with materials which have good fluidization characteristics. Others spoke patterns provide maximum aeration for difficult materials which can be fluidized.
Specifications:
TYPE | MATERIAL | PLY | TENSILE STRENGTH | HEAT RESISTANCE ºC | THICKNESS | WEIGHT/m2 | MAX WIDTH | AIR RESISTANCE IN | ||
WARP >N/mm | WEFT >N/mm | 2m3/m2/minH2O mm | ||||||||
AP4-4 | 100%Polyester | 4 | 360 | 270 | 150 | 4 | 3200g | 2000mm | Type A;80-120 | |
Type B:120-150 | ||||||||||
Type C:150-200 | ||||||||||
AP4-5 | 100%Polyester | 4 | 360 | 270 | 150 | 5 | 3600g | 2000mm | Type A;80-120 | |
Type B:120-150 | ||||||||||
Type C:150-200 | ||||||||||
AP4-6 | 100%Polyester | 4 | 360 | 270 | 150 | 6 | 4000g | 2000mm | Type A;80-120 | |
Type B:120-150 | ||||||||||
Type C:150-200 | ||||||||||
AP4-7 | 100%Polyester | 4 | 360 | 270 | 150 | 7 | 4400g | 2000mm | Type A;80-120 | |
Type B:120-150 | ||||||||||
Type C:150-200 | ||||||||||
AP4-8 | 100%Polyester | 4 | 360 | 270 | 150 | 8 | 4800g | 2000mm | Type A;80-120 | |
Type B:120-150 | ||||||||||
Type C:150-200 | ||||||||||
AC4-5 | 100%Cotton | 4 | 150 | 100 | 150 | 5 | 3800g | 2000mm | Type A;80-120 | |
Type B:120-150 | ||||||||||
Type C:150-200 |

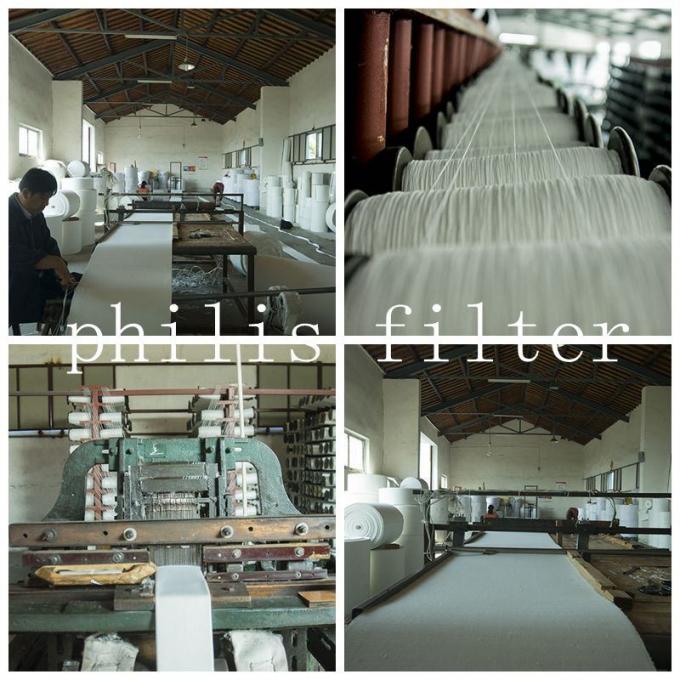

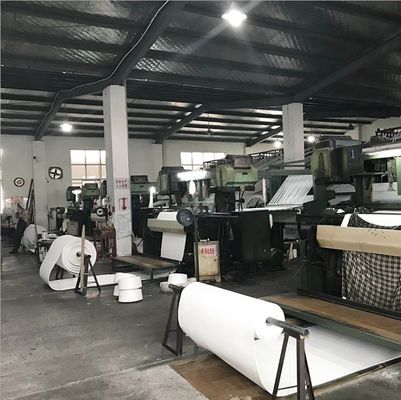

Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.
Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.
The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer's praise.
Q: ,What certifacation you have?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, balance before shippment.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
Q:What should I do if I'm not satisfied with your product?
A:Please contact us as soon as possible and tell us where went wrong.We can only accept refund or exchange if there is any quality issue.
IF you have some interesting please contact us without any hesitate, we will reply you within 24 hours and welcome to have a visit to our factory for more further business and know each other better. We do have the keen interesting to cooperate with you near future.
