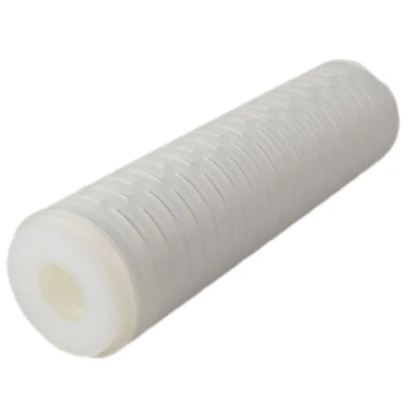

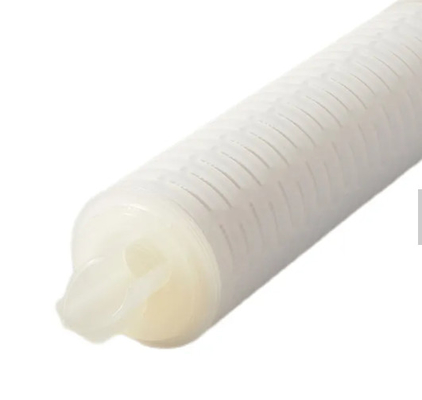

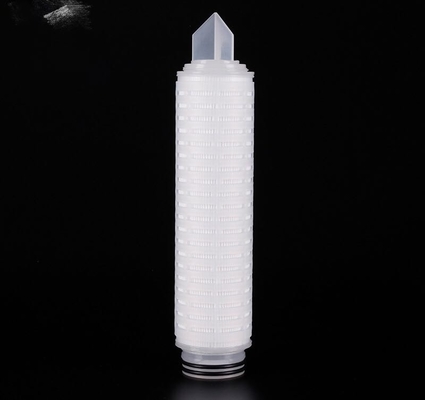

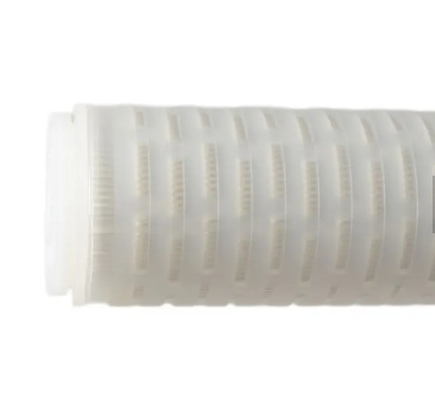

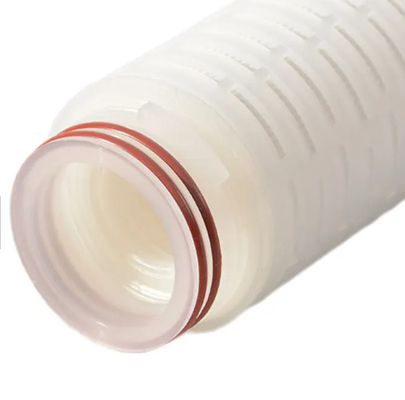

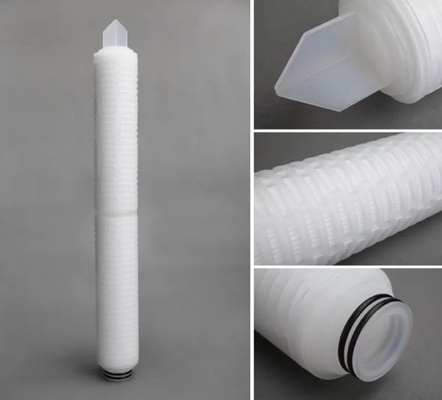

Polytetrafluoroethylene Microporous Membrane Liquid Filter Element 0.1 Micron

Certification
China Riqi ( Hangzhou ) Filter Technology Co., Ltd. certification
China Riqi ( Hangzhou ) Filter Technology Co., Ltd. certification
I'm Online Chat Now

Polytetrafluoroethylene Microporous Membrane Liquid Filter Element 0.1 Micron

Polytetrafluoroethylene Microporous Membrane Liquid Filter Element 0.1 Micron
Polytetrafluoroethylene Microporous Membrane Liquid Filter Element 0.1 Micron Polytetrafluoroethylene Microporous Membrane Liquid Filter Element 0.1 Micron Polytetrafluoroethylene Microporous Membrane Liquid Filter Element 0.1 Micron Polytetrafluoroethylene Microporous Membrane Liquid Filter Element 0.1 Micron Polytetrafluoroethylene Microporous Membrane Liquid Filter Element 0.1 Micron Polytetrafluoroethylene Microporous Membrane Liquid Filter Element 0.1 Micron

Large Image :  Polytetrafluoroethylene Microporous Membrane Liquid Filter Element 0.1 Micron

Product Details:
Place of Origin: China
Brand Name: RIQI
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: carton
Delivery Time: 7
Supply Ability: 10000PC/WEEK

Polytetrafluoroethylene Microporous Membrane Liquid Filter Element 0.1 Micron

Description
Material: Polypropylene Membrane Core:: PP
Micron: 0.1μm,0.22μm,0.45μm,1.00μm Filtration Area:: 0.5M2/10inch
Length: 5" ,10",20",30",40" Inner Diameter:: 33mm
Outer Diameter: 69mm
High Light:

0.1 Micron Liquid Filter Element

,

GPP Pleated Filter Cartridges

,

Polytetrafluoroethylene Liquid Filter Element

0.1 Micron Polytetrafluoroethylene Microporous Membrane Liquid Gas Filtration
Product Description
GPP pleated filter cartridges have a multi-layered filter configuration containing micro fibers structured along the flow direction from the outside towards the inside in decreasing filter rations. In this way GPP pleated filter cartridges combine the advantages of common depth filters with those of pleated filter medias. This multi-layered filter media structure also ensures a long service life and a high dirt-retention capacity.

Adopt the product that is welded by hot melt technique, fixed and free of contamination of release substance.

Application: Clarification filtration in wastewater treatment industry Pre-filtration of reverse osmosis water system in electronics industry. Beverage industry in all kinds of wine, mineral water, pure water, juice and other liquid filtration. Pharmaceutical industry, biological products, pharmaceutical solvents, compressed air and other liquid or gas filtration
The product name
Folded filter/PP folding filter core
model
PP-10ZD
PP-20ZD
PP-40ZD
PP226-30ZZ
PP222-20ZZ
size
10 inches, inner diameter 28, 30mm, outer diameter 63pmm respirator filter elements (215, 222, 226) can be customized
20 inches, inner diameter 28, 30mm, outer diameter 63pmm respirator filter elements (215, 222, 226) can be customized
40 inches, inner diameter 28, 30mm, outer diameter 63pmm respirator filter elements (215, 222, 226) can be customized
226 tip, inner diameter 28, 30mm, outer diameter 63pmm respirator filter element
222 pointed respirator filter element with inner diameter of 28 and 30mm and outer diameter of 63pmm
Structural materials
Filtration membrane material: polypropylene membrane
Conductivity layer material: polypropylene fiber
Outer supporting shell: polypropylene material
Inner supporting housing: polypropylene or stainless steel
size
Outer diameter:Φ68,69mm
Inside diameter: Φ33mm
Length: 10-40 inches
Filtration precision
0.10,0.20,0.45,1.00,3.00,5.00,10.0,20.0,40.0,50.0μm
Effective filtration area
≥0.65m2
Conditions of use
PH:1-13
Normal operating temperature ≤55℃
Maximum operating temperature≤80℃,Δ P ≤0.10Mpa
Maximum differential pressure 25℃, forward 0.42Mpa, reverse 0.21Mpa
Sterilization 121±2℃ 30min/ time or sterilization cabinet 30min/ time
Release the content
endotoxin<0.25EU/ml
Extract < 0.03g/ 10 inch filter element
packaging
390*390*350mm,With 25
600*390*390mm,With 25
1100*305*390mm,With 25
850*390*390mm,With 25
600*390*390mm,With 25

Features and Benefits

Low differential pressures, high dirt-retention capacity and a long service life.
Multi-layers Pleated depth filtration with maximum filtration area.
The scientific design for high flow rate.
Great chemical compatibility and acid-base resistance for liquid filtration
A wide range of fine filters which is suitable for all industries

Application: Typical application

Filters in water-treatment plants
Pre-filters in ultrapure water for the electronic industry

Drinking water for food and beverages
Process filters for acids and lyes
Filtration of inks for ink-jet applications
Liquid or gas filtration for biological products, compressed air .etc




Polytetrafluoroethylene Microporous Membrane Liquid Filter Element 0.1 Micron 0

Order information

Model
Micron
Adaptor
Length
Seal materials
Core



GPP
010=0.1μm
022=0.22μm
045=0.45μm
1=1.00μm

DOE=DOE
TF=222/FIN
SF=226/FIN
TC=222/FLAT
SC=226/FLAT
GSF=226SUS/FIN
GTF=222SUS/PIN
5=5in
10=10in
20=20in
30=30in
40=40in
S=Silicone
E=EPDM
N=NBR
V=Viton
T=Teflon
F=E-FKM
P=PP
G=SUS
Polytetrafluoroethylene Microporous Membrane Liquid Filter Element 0.1 Micron 1
Polytetrafluoroethylene Microporous Membrane Liquid Filter Element 0.1 Micron 2
Polytetrafluoroethylene Microporous Membrane Liquid Filter Element 0.1 Micron 3
Polytetrafluoroethylene Microporous Membrane Liquid Filter Element 0.1 Micron 4
Polytetrafluoroethylene Microporous Membrane Liquid Filter Element 0.1 Micron 5
