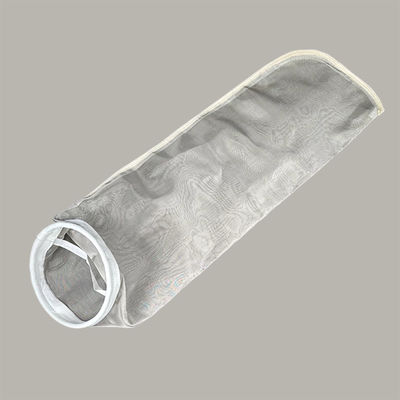

Wire mesh 5 10 50 100 200 micron stainless steel filter bag

Wire mesh 5 10 50 100 200 micron stainless steel filter bag

Specifications

Stainless Steel Filter Bags
304, 316 SS woven wire cloth
Different shaped
300 micron to 5 micron filtering rate
Durability

Stainless Steel Filter Bags

304, 316 woven stainless wire cloth
300 micron to 5 micron filter bags
Single layer or multi-layers filter mesh
Different shaped can be choosed
Special design accepted

#1-----(7"x16") -----¢180*410mm

#2-----(7" x 32") -----¢180*810mm

#3-----(4"x 8 1/4") -----¢102*210mm

#4-----(4"x 14") -----¢102*356mm



​

Material	304, 316 SS,PE,PP,NMO,PTFE
Cuff	PP Lock, Stainless steel
Relative filtration pore size	0.5, 1,5, 10, 25, 50, 100, 200 µm
Type	various specifications
Airtight method:	Hot Melt, reverse sewing
Effective filtration area	various specifications
Others	special requirement of diameter and collar extension can be customized

​​

PRODUCT CODE:
Component		Elongation@50N/5cm
Fibre	100%PP	Longitudinal(%)	Transverse(%)
Scrim	100%PP	<3%	<3%
Weight(g/m²)	500	Operating Temperatures
Thickness(mm)	2.0	Continuous(°C)	Surge(°C)
Density(g/cm3)	0.25	130	150
Mean Air Permeability (L/dm².min)	150-250	Max Dry Shrinkage in 90 minutes:(150°C)(%)	<1%
Breaking Strength		Surface Treatment	Heat Setting, Singed, Represent add stainless steel fibers
Longitudinal(N)	Transverse(N)
>1000	>1200

​Thickening material : strictly selected material, particle adsorption capacity increased,filter cleaner.

Wrap edge tightly sewing: Steel ring filter bag arcbottom sewing process linetight to prevent breaking.

Good filtration performance: Duplex closurecapacity is large,effective clean up solidand soft particles.

Notices:

1. Materials avaliable: polyester, polypropylene
2. construction: welded or sewn
3. collar type: steel ring or plastic ring
4. finishing treatment: singed, calendared, heat set
5. Size available: standard and custom size.


Application fields:

1) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations

2) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals

3) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers

4) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics

5) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster

6) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.

Riqi ( hangzhou ) filter technology co.,ltd . has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.

Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.

The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer's praise.
