Product Details:
|
| Material: | PPS | Usage: | Dust Filter |
|---|---|---|---|
| Application: | Industry Dust Collector | Working Temperature: | 200 - 220degree |
| Weight: | 400gsm To 650gsm | Thickness: | 2mm |
| Sizes: | Custiomized | Name: | Filter Bag , Filte Sock , Filter Sleeve |
| Highlight: | PPS Filter Bag 550gsm,High Temperature PPS Filter Bag,PPS high temperature filter bag |
||

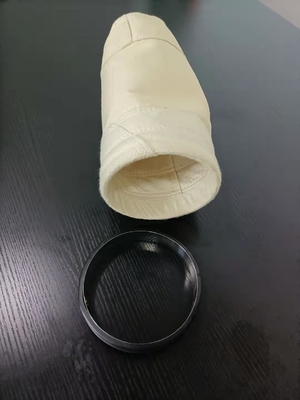

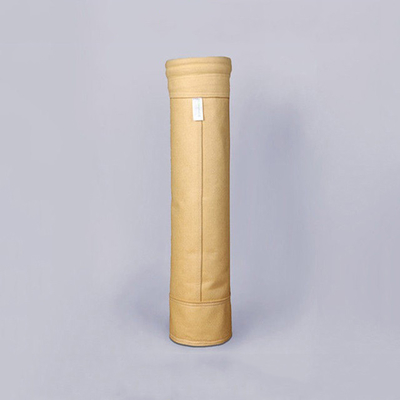

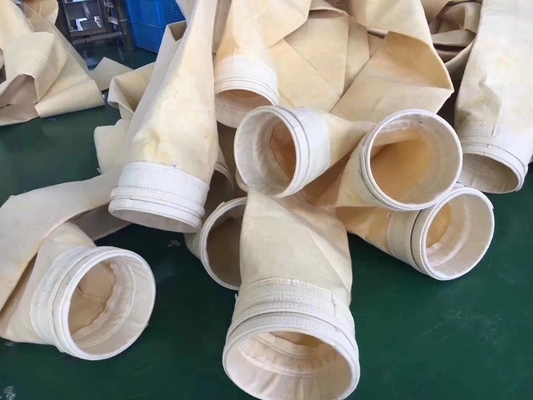

High Temperature PPS 550gsm Filter Bag for Coal-Fired Power Plant and Cement and Steel Plant
Filter bag one most important in the bag dust collector filter , Made of non-woven and woven fabrics.In the production process of many industrial industries, such as thermal power generation, iron and steel, cement and chemical industry, a large amount of dust and smoke will be produced, which will cause serious pollution to the atmosphere and human body,Therefore, the state has formulated strict requirements for the atmospheric emissions of such enterprises, and because the emission policies of the regulatory agencies are not strictly implemented and many enterprises, in order to save costs, do not strictly comply with the state regulations to replace the dust bag in time or even the flue gas bag dust removal system,In coal-fired power plants .Bag dust removal is an ideal dust removal method widely used. Dust removal bag (dust filter bag) is called the heart of bag dust collector, which plays a very important role in dust removal effect.
materials :
High Temperature filter fabric bag
Aramid needle punched filter bag
Ryton(PPS) Needle punched filter bag
Polymide(P84) Needle punched filter
PTFE needle punched filter felt
FMS(MTS) compound needle punched felt bag
PTFE filter fabric with membrane
The filter material can be treated with water and oil repellent, anti-static, ptfe emulsion impregnation and ptfe coating according to the specific working conditions of the user, so as to meet the actual demand of different working conditions and achieve the best service life of the dust bag.
For a high-end filter media production enterprise, Our company invested a lot of money to introduce first-class production equipment, the most professional technical engineers, in the elite sales team service, in just a few years, Attracted many international well-known enterprises to visit and cooperate.
Technical Specification:
| Fibre | PPS |
| Scrim | PPS |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.2 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing,Calendering,PPS dipping treatment,with PTFE membrane or oil&water repellent treatment.. |
| Air permeability (m3/m2/min): | 6~10 |
| Tensile strength (N/5× 20cm) | Warp:>900 Weft:>1200 |
| Tensile elongation (%): | Warp:<35 Weft:<50 |
| Temperature (ºC): | Continue: 170 Instant: 210 |
| Anti-acid | Excellent |
| Anti-alkali | Excellent |
| Anti-abrasion | Excellent |
| Hydrolytic stability | Excellent |

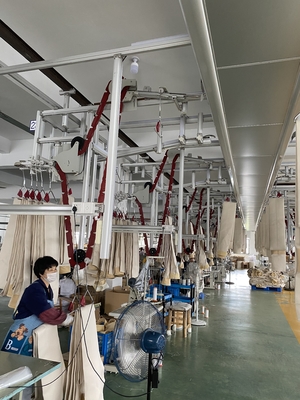

Producing Process:
Install Diagram:
Applications:
Our products are widely used in construction , manufacturing, chemical industry , food industry and other fields to provide economical and efficient filteration solutions for various industries .
