Product Details:
|
| Mateiral: | PTFE | Usage: | Liquid Filter,dry Filter , Powder Filter Air Filter |
|---|---|---|---|
| Type: | Woven Filter | Application: | Sewage Dewatering |
| Feature: | Good Acid And Alkaline Resistance | Working Temperature: | 250-280deg C |
| Product Name: | PTFE Cloth , Toflon Cloth , PTFE Mesh | ||
| Highlight: | Alkaline Resistance PTFE Filter Cloth,PTFE Filter Cloth 300 Micron,200 micron filter cloth |
||

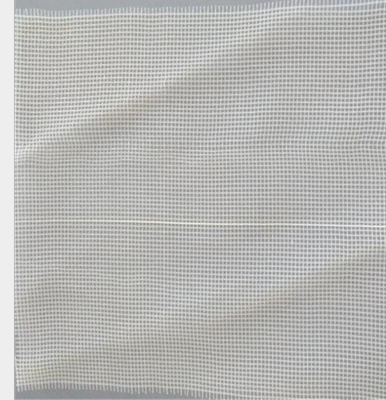

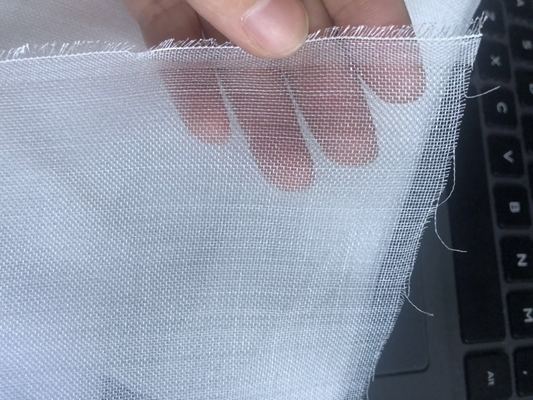

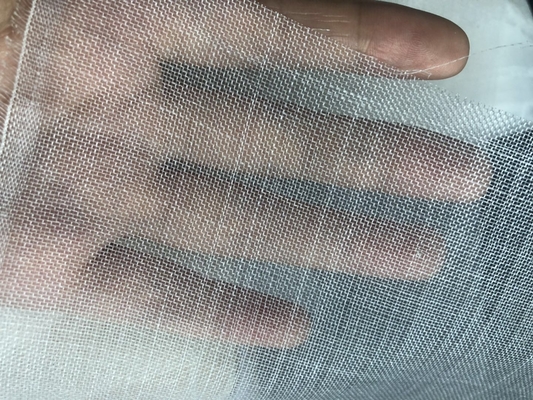

Good acid and alkaline resistance PTFE Mesh Filter Fabric 300 Micron 200 micron 40 Mesh, 60mesh ,100mesh
Temperature: -20~250°C (-4~+482°F)
Pressure: -0.1~6.4Mpa (Full vacuum to 64kgf/cm2)
Thermostability: working temperature can up to 250°C
Weaving method: plain weaving, between 15mesh to 150mesh
Industrial applications for ptfe mesh:
Chemicals, resins and solvents
Hydraulic oils
Petroleum refining
Power generation
Pulp and paper industry
Fuel lines
1.Good capability and wide usage
2.High temperature resistance
3.High tensile strength
4.OEM welcome
ptfe mesh technical data :
| Product Name | Mesh number | Wire diameter | width |
Weight g/M |
MOQ |
|
PTFE mesh |
28 mesh /30 mesh (3028) | 0.2mm | 2.25m | 330 | 2.25m*1m |
| 38 mesh/40 mesh (3838) | 0.2mm | 2.1m | 336 | 2.1m*1m | |
| 50-70 mesh (7050) | 0.16mm | 2m | 580 | 2m*1m | |
| 80 mesh (7560) | 0.1mm | 1.2m | 532 | 1.2m*1m | |
| 100 mesh (8680) | 0.08mm | 1m | 425 | 1m*1m |
PTFE filter felt
PTFE is more suitable for harsh conditions that require corrosion resistance and long service life of filtration material, fume handling of coal-burning boilers, garbage incinerators, carbon black production and TiO2 production. It can be used in the process of initial metallurgy and refining for some metals as well as chemical production.
It widely used in steel, power, waste incineration flue gas filtration and other harsh environments.
Filter bags, dust collector bag ,dust filter bag , dust bags, filter socks, - they all mean the same thing: An industrial grade fabric filter made from heavy duty material, all textile based, used in dust collecting systems, in either process filtration or pollution control.
| Technical Specifications | |||
| Component | Shell Fiber | PTFE | |
| Scrim | PTFE | ||
| Weight | 750±5%g | ||
| Thickness | 1.8±0.1mm | ||
| Air Permeability | 120-150(L/dm2 .min) | ||
| Tensile Strength N/5*20cm | Length | ≥650 | |
| Cross | ≥650 | ||
| Temperature | Countine | 260ºC | |
| Peaks | 300ºC | ||
| Finish | Heat Stabilization,Glaze,Singe,PTFE Impregnate | ||
| Use Scope | Unit with ESP and bags or old unit retrofits,or unit requires long longivity and lower oxgen.ESP for the dust contents with high SO2 and NOX | ||
| Application Field/Use Scope | Steel, Metallurgy, Cement, Power, Chemical, Dust Treatment, Building Wastage. Waste Incinerators, Chemical Corrosion Coal-fired boilers Solvent Collection Valuable Dust |
||
| Features | Acid Resistant .Alkali Resistant .Custom-Made .. | ||
Asphalt Plant
Lead Refinery
Cement plant
Steel plant
Waste incineration
Timber mill
Power generation
Treatment of nonwoven filter fabric for dust collection bag
Normal Treatment: Singed,Calendered,Heat set
Special Treatment: Anti-static, water&oil repellent,PTFE dipping/coating/membrane,etc
Treatment of fiberglass: acid resistant, silicon, graphite, PTFE finish, PTFE membrane, tri-treatment(silicon, graphite, PTFE dipping)
Main Features
