Micron Filter Paper for Aluminum Hot Rolling Emulsion Filteraion

Micron Filter Paper for Aluminum Hot Rolling Emulsion Filteraion
Micron Filter Paper for Aluminum Hot Rolling Emulsion Filteraion Micron Filter Paper for Aluminum Hot Rolling Emulsion Filteraion Micron Filter Paper for Aluminum Hot Rolling Emulsion Filteraion Micron Filter Paper for Aluminum Hot Rolling Emulsion Filteraion Micron Filter Paper for Aluminum Hot Rolling Emulsion Filteraion Micron Filter Paper for Aluminum Hot Rolling Emulsion Filteraion

Large Image :  Micron Filter Paper for Aluminum Hot Rolling Emulsion Filteraion

Product Details:
Place of Origin: China
Brand Name: RQ
Payment & Shipping Terms:
Minimum Order Quantity: 5 rolls
Price: 1.3usd to 5usd
Packaging Details: standard export packing
Delivery Time: 5-15days
Supply Ability: 50000m2/day

Micron Filter Paper for Aluminum Hot Rolling Emulsion Filteraion

Description
Usage: Grinding Filteration Color: White
Sizes: Customized Size Application: Aluminum Hot Rolling Emulsion Filteraion
Weight: 10gsm To 200gsm

Application areas:

Hoffmann equipment, gear grinding equipment, centralized filtration system equipment, etc.



Scope of application:

It is suitable for the filtration of industrial oils such as metal cutting fluid filtration, grinding fluid filtration, drawing oil filtration rolling oil filtration slurry filtration, lubricating oil filtration and insulation oil filtration.



Filter paper features:

The tensile strength is large and the coefficient of variation is small. The advanced web forming process and forming reinforcement are used to strengthen and stabilize the tensile strength, and the initial strength and the use strength are consistent.



High filtration precision and high efficiency. The combination of polyester fiber and poly polymer film can be used to meet the user's specified precision requirements. The filter material is not corroded by the cutting fluid and does not change the chemical properties of the cutting fluid. It can be used normally in the range of -40℃~120℃.



The selected filter material can withstand the mechanical force and temperature influence of the filter device, and the wet rupture strength of the filter material used for the cutting fluid will not decrease.



The filter material is required to have a large void ratio, a small filtration resistance, a large throughput, and a strong dirt holding capacity, which can improve the filtration efficiency, prolong the service life, reduce the filter material consumption, and reduce the filtration cost.



Micron Filter Paper for Aluminum Hot Rolling Emulsion Filteraion 0



Model

Thickness

(mm)

MD

(N/5CM)

CD

(N/5CM)

Weigth

(g/m2)

Infiltration

accuracy(um)

Air

permeability(L/m2)

JZ-1030 0.17-0.20 60 15 30 50-60 3400
JZ-2030 0.20-0.23 58 15 30 40-50 3200
JZ-1040 0.25-0.27 100 20 40 35-48 3000
JZ-2040 0.26-0.28 85 22 40 34-45 2700
JZ-1050 0.26-0.30 130 40 50 22-33 2300
JZ-2060 0.30-0.35 110 33 60 15-25 1900
JZ-1080 0.39-0.41 190 55 80 10-18 1800
JZ-2080 0.40-0.42 150 45 80 8-15 1800

Detailed Images

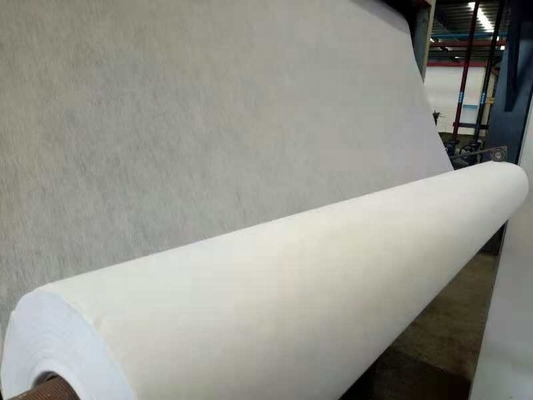

Micron Filter Paper for Aluminum Hot Rolling Emulsion Filteraion 1

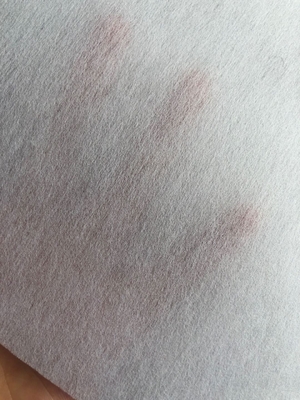

Micron Filter Paper for Aluminum Hot Rolling Emulsion Filteraion 2

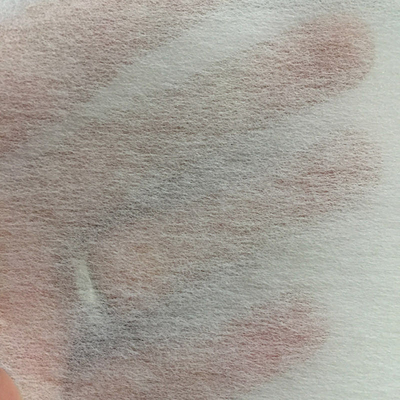

Micron Filter Paper for Aluminum Hot Rolling Emulsion Filteraion 3

We are also supply polyester spunbond nonwovens , wairus kinds of PTE spunbond nonwoven production lines such as spunbond thermal bonding series , sounbond needling puching series and spunbond needling ounching geotestile prodcution line and the high-strength  polyester filaments asphalt felt production line , which have higher tensile strength , excellent air and water permeability and excellent dimensional stability as well as other advantages, it is a kind of specia; nonwoven material with high performance , wide application, high technology content and high added value , and can be maily used as filteration material , waterproofing material , carpet lining backing for tufting carpet and automotive forming , filterating membrane for geo drain board, and reinforced material for high-end sports shoes and other fields .

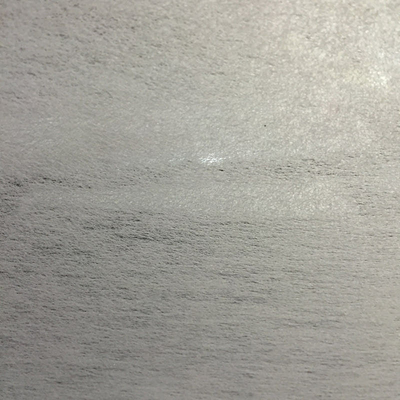

Micron Filter Paper for Aluminum Hot Rolling Emulsion Filteraion 4

Micron Filter Paper for Aluminum Hot Rolling Emulsion Filteraion 5
