Product Details:
|
Model NO.: | PH00043 | Filtration Grade: | HEPA Filter |
---|---|---|---|
Filter Bag Sectional Shape: | Round Bag | Filter Bag Environment: | High-Temperature |
Cartridge Installation: | Vertical Lifting | Working Temperature: | 280 |
Anti Acidic: | Good | Anti Alkaline: | Excellent |
Materials: | PPS ,PTFE, P84,Polyester ,Acrylic.PTFE | Transport Package: | Standard Export Packing |
Specification: | 1m X 1m X 1m | Trademark: | Riqi |
Origin: | China | HS Code: | 5911900 |
Supply Ability: | 5000PCS / Week | Material: | Non-woven |
Medium Material: | PTFE , PPS | Cartridge Filter: | PTFE Filber |
Filter Bag Filter: | The Filter Type | Type: | House Filter Bag |
Usage: | Dust Filter, Liquid Filter, Air Filter | Samples: | US$ 0/Square Meter 1 Square Meter(Min.Order) | Requ |
Customization: | Available | Customized Request |

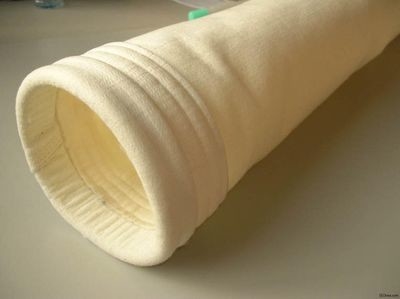

Thermal power plant PPS filter bags /PTFE filter bag dust collector bag
Thermal power plant PPS filter bags:
Component | Elongation@50N/5cm | ||
Fibre | 100%PPS | Longitudinal (%) | <3% |
Scrim | 100%PPS | Transversal (%) | <3% |
Weight (g/m²) | 500 | Operating Temperature | |
Thickness (mm) | 1.8-2 | Continuous (°c) | 170 |
Density (g/cm3) | 0.25 | instant(°c) | 200 |
Mean Air Permeability (L/dm².min) | 150 |
Max Dry Shrinkage in 90 mins (150 °c )(%) |
<1% |
Breaking strength | |||
Longitudina l(N) | >800 | Surface Treatment | Heat Setting, Single Singeing Pressure Treatment |
Transversal (N) | >1000 | ||
Sample Size (mm) | 200/50 | Sample Time | 3~5days |
Application field:
It was widely used in Coal-fired boilers, Waste incineration, Flue dust in low oxidation , etc.
Technical Characteristics of Needle Punched Filter Felt:
a. Singeing and calendaring treatment----
not only improve the cleaning performance accuracy and low ddropout performance of the filter material.
b. Anti-static treatment---
Anti-static filter material which is the fiber or fiber nixed with conductive fibers ( including the binary conductive fiber, carbon fiber or stainless steel conductive fiber), so that the filter material has conductive properties.
c. Water and oil proof Treament---
can prevent and mitigate paste bags of phenomenon.
d. Easily dedusting treatment---
it has good cleaning performance, air permeability, and can work long hours in a high filtered wind speed.
e. PTFE with the membrane treatment---
has high filtering accuracy, smooth surface, no adhesion of dust, easily dedusting and the dust does not penetrate into the filter inside to achieve the surface.
Other products :

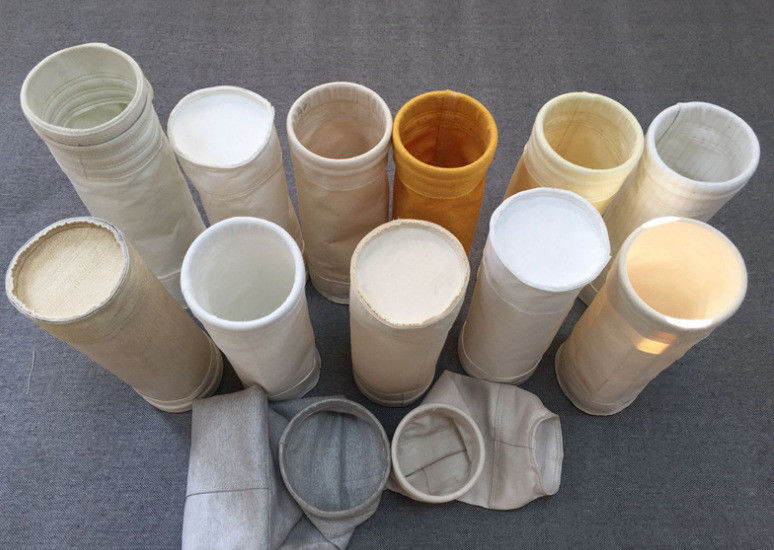

Polyester filter bags,anti-static polyester filter bags,water and oil proof polyester filter bags. glassfiber filter bags,
Nomex filter bags,PPS filter bags,PTFE filter bags,P84 filter bags.etc.
Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.
Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,wool felt ,woven filter fabric and so on.
The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer's praise.
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, balance before shippment.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
Q:What should I do if I'm not satisfied with your product?
A:Please contact us as soon as possible and tell us where went wrong.We can only accept refund or exchange if there is any quality issue.
IF you have some interesting please contact us without any hesitate, we will reply you within 24 hours and welcome to have a visit to our factory for more further business and know each other better. We do have the keen interesting to cooperate with you near future.
Contact Person: Miss. Wendy
Tel: 86-17815613488
