Industrial Monofilament Pet Polyester Press Filter Mesh Press Filter Screen Press Filter Cloth

Industrial Monofilament Pet Polyester Press Filter Mesh Press Filter Screen Press Filter Cloth

Description
Model NO.: PH00056 Condition: New
Material Feature: Heat Resistant After Sevice: No Overseas Service Provided
Feature: Anti-Static, Tear-Resistant, Shrink-Resistance Color: White,Red,Blue,Black,Green
Materials Available: Pet,PA,Stainless Wire Width: 0-7m
Application: Non-Woven Forming,Dryer , Dewatering Transport Package: Standard Exporting Package
Specification: 1m X 1m X 1m Trademark: Philis
Origin: China HS Code: 5911900000
Supply Ability: 50000PCS / Week Material: Pet , Polyester100% Polyester
Layers: Single Usage: Liquid Filter, Air Filter, Solid Filter
Type: Filter Elements Hole Shape: Square
Structure: Single Network Samples: US$ 0/Piece 1 Piece(Min.Order) | Request Sample
Customization: Available | Customized Request

Product Description

Company Info.

Customer Question & Answer
Ask something for more details

Basic Info.

Model NO.
PH00056
Condition
New
Material Feature
Heat Resistant
After Sevice
No Overseas Service Provided
Feature
Anti-Static, Tear-Resistant, Shrink-Resistance
Color
White,Red,Blue,Black,Green
Materials Available
Pet,PA,Stainless Wire
Width
0-7m
Application
Non-Woven Forming,Dryer , Dewatering
Transport Package
Standard Exporting Package
Specification
1m x 1m x 1m
Trademark
philis
Origin
China
HS Code
5911900000
Production Capacity
50000PCS / Week

Product Description

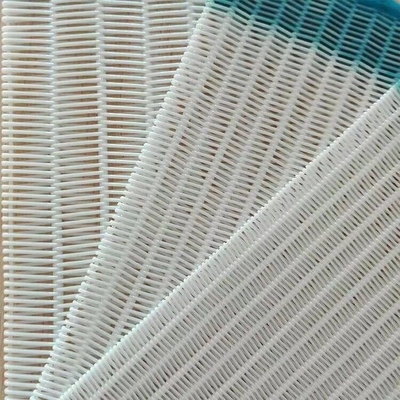

industrial monofilament  PET polyester press filter mesh press filter screen press filter cloth

Polyester Spiral Press-filter Fabrics is suitable for high-pressure press-filter washer, horizontal belt washer, pulp-liquor separator and netting belt coal-washer.



belt for non-woven fabric
1. USAGE



for spunbonded nonwoven cloth forming



Model 22504

diameter of warp:0.50mm

diameter of weft:0.50mm

density of warp:24thread/cm

density of weft:12thread/cm

weight :1.26kg/m2

thickness:2.1mm

CFM: 950


used in spunlaced nonwoven cloth



Type-BW05902

diameter of warp:0.9mm

diameter of weft:0.9mm

density of warp:5 yarn/cm

density of weft: 5 yarn/cm

opening: 20%

inch: 14

aperture: 0.80mm*0.90mm



Product Description

SPECIFICATIONS:

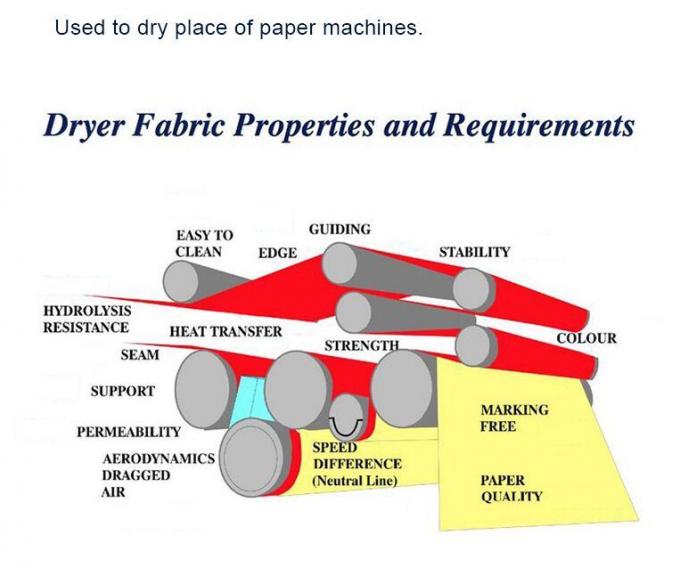

-Polyester Dryer Conveyor Belt

Polyester dryer conveyor belt introduction:



Details  1) According to the weaving,polyester dryer conveyor belt can be divided into 3-shed,4-shed;
2) According to the category,polyester dryer conveyor belt can be divided into one and a half layer,double-layer and flat wire farbic;

3) According to the joint types,it can be divided into insert,pin ring and spiral ring joint.



Feature1) Waterproof,good air and water permeability
2) High strength,stable property
3) Shrink-resistantnd heat resistance under 180 degrees

4) Easy to clean and install,straight run



Application1) 3-shed one and a half layer polyester dryer conveyor/fabric belt is suitable for drying papers less than 70g,4-shed double-layer fabric is suitble for drying papers more than 70g,Flat wire dryer fabric is suitable for the fore hearing box of the drying zone.
2) Polyester dryer conveyor belt(dryer farbic belt) is also used for drying in food processing,medicine drying,paper forming etc.



Polyester dryer conveyor belt specification:



Weaving Types

Model

Thread Dia.(mm)

Density(No.s/cm)

Srength
(N/cm)

Air Permeability
(m
3/m2h)

Warp

Weft

Warp

Weft

3-shed

22503

0.5

0.5

24

12

2000

8000

22453

0.45

0.45

24

13

2000

8500

24503

0.5

0.5

25

12

2000

7000

24453

0.45

0.45

25

13

2000

6700

4-shed

20504

0.5

0.5

22

12

2000

15000

22504

0.5

0.5

24

12

2000

12000

24504

0.5

0.5

26

12

2100

11000

18504

0.5

0.5

20

11

1800

8000

round wire fabric

4106

0.5

0.7

22.8

12.4

2200

6800

0.3

Flat wire fabric

4106-1

0.58

0.35

21

15

2000

2500

0.37

0.68

4106-2

0.58

0.35

21

14

2000

3000

0.37

0.68

4106-3

0.58

0.35

21

13

2000

4000

0.37

0.68

4106-4

0.58

0.35

21

13.5

2000

3500

0.37

0.68


Industrial Monofilament Pet Polyester Press Filter Mesh Press Filter Screen Press Filter Cloth
Product Details
Industrial Monofilament Pet Polyester Press Filter Mesh Press Filter Screen Press Filter Cloth

Q: ,What certifacation you have?

We have got ISO9001 and SGS certification

Q: How long is your delivery time?

A: Generally it is 5-10 working days if the goods are in stock. or it is 15-20 days if the goods are not in stock.It depends on the quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, balance before shippment.
 Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them.

Q:What should I do if I'm not satisfied with your product?
A:Please contact us as soon as possible and tell us where went wrong.We can only accept refund or exchange if there is any quality issue.

IF you have some interesting please contact us without any hesitate, we will reply you within 24 hours and welcome to have a visit to our factory for more further business and know each other better. We do have the keen interesting to cooperate with you near future.
