Filter Cloth for Paper Pulp and Juice Squeeze

Filter Cloth for Paper Pulp and Juice Squeeze

Description
Transport Package: Standard Export Package Specification: 100m /roll
Trademark: Philis Origin: China
HS Code: 5911200090 Supply Ability: 100000m/Month
Material: Polyester Usage: Liquid Filter
Type: Woven Filter Hole Shape: Square
Manufacturing Method: Manufacturing Cloth Paper Type: Qualitative
Samples: US$ 10/Square Meter 1 Square Meter(Min.Order) | Req Customization: Available | Customized Request

Product Description

Company Info.

Customer Question & Answer
Ask something for more details

Basic Info.

Transport Package
Standard Export Package
Specification
100m /roll
Trademark
philis
Origin
China
HS Code
5911200090
Production Capacity
100000m/Month

Product Description

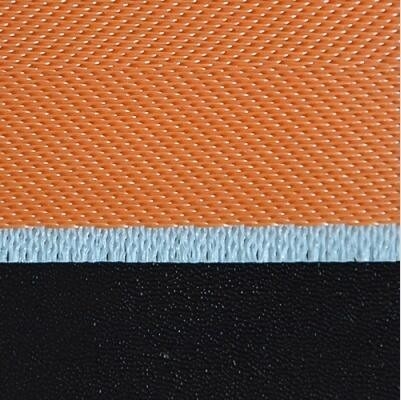

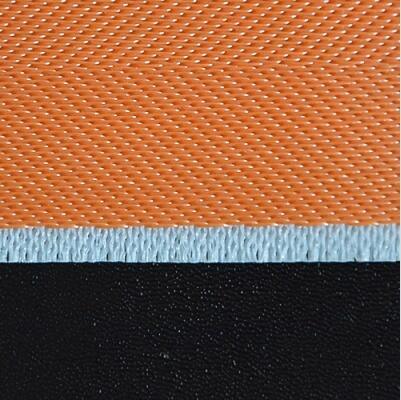

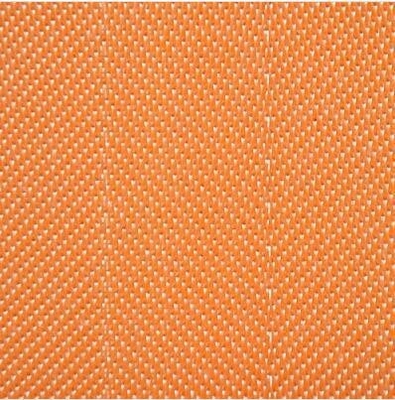

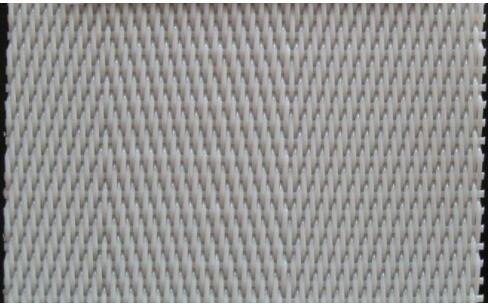

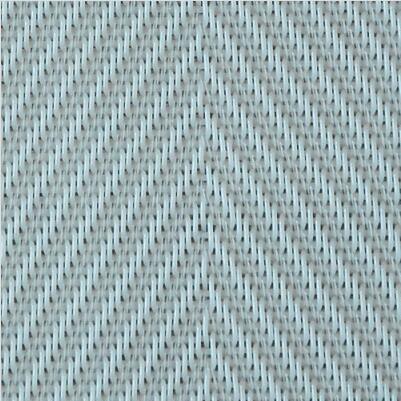

Filter cloth for paper pulp and juice squeeze


Product Details

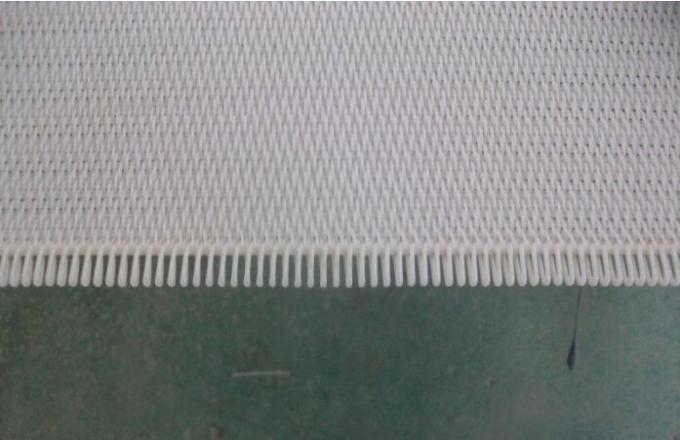

The belt are also called Press- Filter Fabrics which is mainly used for sludge dehydration, pulp and juice squeeze, mine smelting, mine tailings drying and other pressure filtration industries.

It have the characteristics of good water permeability, air permeability and non-revealed sludge, acid-resisting and alkali-resisting. Because of their designing structure, the sludge can be peel off easily from the filter cake, so the screen are easily cleaned and have a long working time. Mainly matching with belt type filter press, vacuum rubber belt filter and vacuum horizontal belt filter.

It mainly are used for sludge dehydration in sewage treatment factories. They have the characteristic of good water permeability, air permeability and non-revealed sludge, acid-resisting, alkali-resisting, heat resistance (180 C).Because of their designing structure, the sludge can be peel off easily after pigeonhole filter, so the screen are easily cleaned and have a long working time. Therefore they are designed specially for sludge dehydration.


Product Features:

1.Good air permeability and water permeability
2. Non-revealed sludge

3. Acid-resisting and alkali-resisting

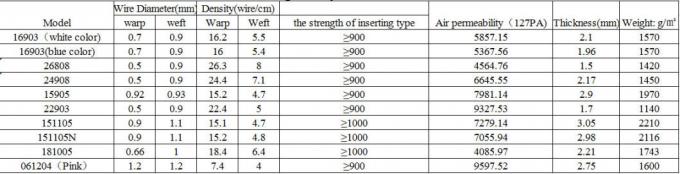

Technical data


Type

Specification of single loop
mm

Monofil diamater mm

Strength
N/cm

Thickness mm

Weight of mesh m2kg

 Air permeability
m3/m2h

Spiral loop monofil

Threading

Super loop

4.8X10

0.9

1.1

2300

3.03

1.64

21000

Large loop

3.8X7.0

0.68

0.9

2000

2.45

1.40

18000

Medium loop

3.5X6.0

0.68

0.9

2000

2.45

1.31

16000

Small loop

3.2X5.2

0.5

0.8

1800

1.87

0.97

15000

Filter Cloth for Paper Pulp and Juice Squeeze


Filter Cloth for Paper Pulp and Juice Squeeze
Filter Cloth for Paper Pulp and Juice Squeeze
Filter Cloth for Paper Pulp and Juice Squeeze
Filter Cloth for Paper Pulp and Juice Squeeze


Applications

1.Widely used in the production of cardboard with a net, kraft paper, corrugated paper, paper of train tickets and single whiteboard paper;

2.Instead of dry blanket, canvas of paper machine drying;

3.Also widely used in coal mining, food, medicine and other industries of conveyor equipment.


Advantages

1.Has the acid and alkali resistance, wear resistance, high temperature resistant, long service life

2.With smooth surface, the tensile strength, permeability is good.

3. According to user requirements in filling in the grid round wire (2 to 5) (a) or black flat silk, adjust at porosity, meet the process requirements.

4.Carbon fiber through internal fill to achieve antistatic effect, with high temperature resistance, wear resistance, etc

5.Size length can be cut, and thus solve the problem of the influence because of the size is not accurate to use.

6.Install easy to use, interface without imprint


Packaging & Shipping

1. wooden / polywood boxes + water proof plastic bag for sea

 2. water proof plastic bag for air

 3. as the customer requirements

Filter Cloth for Paper Pulp and Juice Squeeze


Our Services

1. Samples: free samples with detail specification for you to choose.

 2. We will make the exact specifications as customer's requirements.

 3. We have ten engineers waiting to help you solve the problems when using our mesh fabrics,belt


FAQ



1. Q:  How to confirm the type?

   A:  There are many methods for us to confirm the type:

        1). tell us the specifications data.

        2).tell us your requirements as more as possible, and our engineers will give you the best
            suggestion and design the most suitable mesh/ wire/ fabrics/ screen/ belt.

        3). send us the photos with size

        4). send us a small piece sample.



2. Q: Waht is the payment terms?

    A:  We prefer T/T, but for some countries, we will also accept L/C.

So pls feel free about the payment.



3. Q: When will delivery the goods?

    A: Usally, we will deliver the goods within 15 working days. And if the quantity is big, it will take            about 20-30 working days.



4. Q: How long will the fabirc/wire/screen/belt/mesh be used?

 A: The time is different differ the usage and factory.


5. Q: Is the package strong enough for the long transportation?

    A: Of course it is.

        By sea, we will pack every piece into wooden/ polywood box.

        By air, we will pack it by strong water-proof bag.
