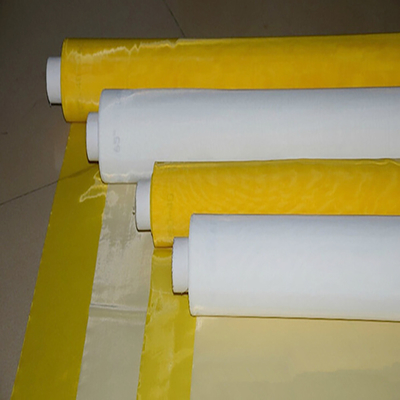

25 30 40 50 60 70 80 100 micron monofilament nylon polyester filter sieve mesh
Feature of polyester screen printing mesh:
*Faster tensioning without damage to the threads;
*Improved fabric strength;Faster tension stabilization;
*Higher tension threshold and breaking point;High elasticity;High heat resistance;
*Less tension loss during the stretching process;High acid resistance;
*Faster turnaround time from the screen room to the pressroom;
*Improved registration due to stable tension;Faster printing speeds;High corrosion resistance;
Quick details:
1) Weave type: Plain
2) Mesh count: 13T~165T
3) Color: Yellow, white, black
4) Width: 42",45",50",53",57",62",65",74",86",90",130",width available (width as order will be ok also)
5) Standard length: 25m/roll,30m/roll,50m/roll. (Cut length as order will be also available)
6) Tensile strength: 25N/cm-85N/cm
7) Theoretical ink: 6.5-128 cm3/m2
Applications:
Widely used in textile printing, T-shirt Printing, electronic printing, ceramics & glass &
metal printing, stained paper printing, label plate printing and advertising printing, ect.
Company information
We are a professional exporter of polyester meshes, including polyester printing meshes (bolting cloth), polyester linear screens, polyester dryer screens, polyester spiral dryer fabric, polyester spiral press filter belts, polyester forming fabric, sludge dewatering belts and polyester filter cloth.
Our products have been exported to more than 30 countries and areas all over the world, such as the USA, England, Brazil, Kenya, Morocco, Russia, Indonesia, Singapore, Pakistan, Malaysia...
| Specification | |||||||
| Model | Mesh/cm | Mesh/inch | Aperture (micron) | Thread Dia. (micron) | Open Area (%) | Thickness (micron) | Theoretical Ink (cm3/m2) |
| 10-250 | 10 | 25 | 743 | 250 | 55 | 495 | 274 |
| 12-140 | 12 | 30 | 686 | 140 | 68 | 277 | 189 |
| 13-150 | 13 | 33 | 619 | 150 | 64 | 300 | 128 |
| 16-140 | 16 | 40 | 461 | 140 | 58 | 238 | 139 |
| 21-80 | 21 | 55 | 296 | 80 | 69 | 120 | 79 |
| 21-150 | 21 | 55 | 326 | 150 | 46 | 260 | 118 |
| 22-80 | 22 | 56 | 356 | 80 | 66 | 136 | 90 |
| 24-80 | 24 | 60 | 320 | 80 | 63 | 136 | 86 |
| 24-100 | 24 | 60 | 316 | 100 | 57 | 170 | 65 |
| 28-140 | 28 | 70 | 217 | 140 | 40 | 195 | 76 |
| 32-55 | 32 | 80 | 257 | 55 | 67 | 103 | 67 |
| 32-64 | 32 | 80 | 248 | 64 | 63 | 95 | 56 |
| 32-100 | 32 | 80 | 212 | 100 | 46 | 170 | 73 |
| 36-90 | 36 | 92 | 183 | 90 | 44 | 150 | 65 |
| 39-55 | 39 | 100 | 177 | 55 | 56 | 88 | 55 |
| 43-80 | 43 | 110 | 149 | 80 | 41 | 130 | 53 |
| 47-55 | 47 | 120 | 152 | 55 | 51 | 88 | 48 |
| 48-70 | 48 | 122 | 133 | 70 | 41 | 115 | 47 |
| 53-55 | 53 | 135 | 133 | 55 | 50 | 86 | 42 |
| 54-64 | 54 | 137 | 115 | 64 | 39 | 100 | 39 |
| 54-70 | 54 | 137 | 109 | 70 | 35 | 116 | 40 |
| 61-64 | 61 | 155 | 90 | 64 | 31 | 101 | 30 |
| 64-55 | 64 | 160 | 98 | 55 | 38 | 98 | 36 |
| 64-64 | 64 | 160 | 85 | 64 | 30 | 115 | 34 |
| 68-55 | 68 | 175 | 85 | 55 | 34 | 85 | 28 |
| 68-64 | 68 | 175 | 78 | 64 | 28 | 105 | 30 |
| 72-48 | 72 | 182 | 90 | 48 | 36 | 78 | 33 |
| 72-55 | 72 | 182 | 85 | 55 | 30 | 90 | 27 |
| 80-48 | 80 | 200 | 72 | 48 | 33 | 74 | 25 |
| 90-48 | 90 | 230 | 56 | 48 | 25 | 78 | 19 |
| 100-40 | 100 | 255 | 58 | 40 | 33 | 63 | 21 |
| 110-40 | 110 | 280 | 48 | 40 | 27 | 64 | 17 |
| 120-31 | 120 | 305 | 49 | 31 | 35 | 49 | 17 |
| 120-34 | 120 | 305 | 45 | 34 | 30 | 55 | 16 |
| 130-34 | 130 | 330 | 40 | 34 | 27 | 55 | 15 |
| 140-31 | 140 | 355 | 36 | 31 | 26 | 48 | 12 |
| 140-34 | 140 | 355 | 31 | 34 | 20 | 53 | 10 |
| 150-31 | 150 | 380 | 32 | 31 | 23 | 49 | 11 |
| 150-34 | 150 | 380 | 23 | 34 | 13 | 55 | 6.5 |
| 165-31 | 165 | 420 | 23 | 31 | 15 | 48 | 7 |
| Note:The above theoretic data is for reference only,and thickness tollerance | |||||||
1.We are professional supplier and provide cost-effective products with good quality control system.
2.We have a good sales team.
3.Good after-sales service, they can improve products according to customer's requirements.
4.We have in good faith; abide by the contract, deliver the goods on time.
5.We provide customers with repair of the product.
FAQ
Q: ,What certifacation you have?
A: Generally it is 5-10 working days if the goods are in stock. or it is 15-20 days if the goods are not in stock.It depends on the quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, balance before shippment.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
Q:What should I do if I'm not satisfied with your product?
A:Please contact us as soon as possible and tell us where went wrong.We can only accept refund or exchange if there is any quality issue.
IF you have some interesting please contact us without any hesitate, we will reply you within 24 hours and welcome to have a visit to our factory for more further business and know each other better. We do have the keen interesting to cooperate with you near future.
