Model NO.: | PH00160 | Wire Mesh Width: | 1m |
---|---|---|---|
Technique: | Woven | Nickels: | 10% |
Mesh Max: | 0.5 Micron | Width: | 0- 2 Meters |
Transport Package: | Standard Exporting | Trademark: | Philis |
Origin: | China | HS Code: | 7314490000 |
Supply Ability: | 500000/Square Meters | Material: | Stainless Steel 304 316 316L |
Hole Shape: | Square | Application: | Filter, Construction Wire Mesh, Protecting Mesh, Screen, Decorative Mesh, Fence Mesh, Barbecue Wire Mesh, Window Curtain, Cages |
Type: | Stainless Steel Plain Wire Mesh | Material Type: | Stainless Steel Wire |
Weave Technique: | Plain Weave | Samples: | US$ 0/Piece 1 Piece(Min.Order) | Request Sample |
Customization: | Available | Customized Request |

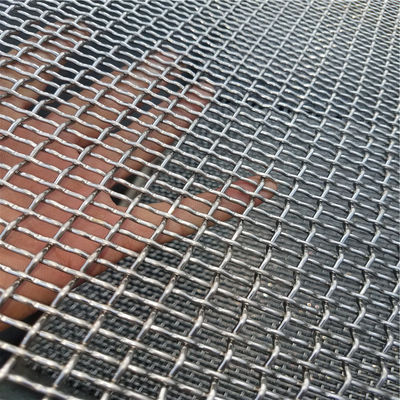

Product Description
Material:
Plain steel, stainless steel(304, 316, 316L), aluminum, copper, brass, bronze, etc.
Features:
Heat resisting,Corrosion resisting, Acid resisting
Applications:
Mainly used for filtering and sieving, extensively used in petroleum, chemical industry, enviroment protection, mine, airspace, paper-making, electronic, metallurgy etc.

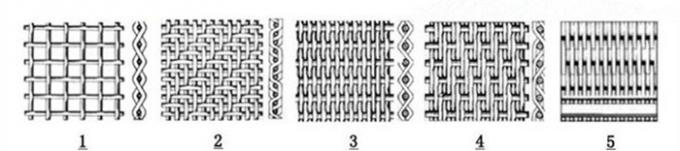

Weave Type:
Plain weave, Twill Weave, Plain Dutct Weave, Twill Dutct Weave, Reversed Dutch Weave.
1. Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.

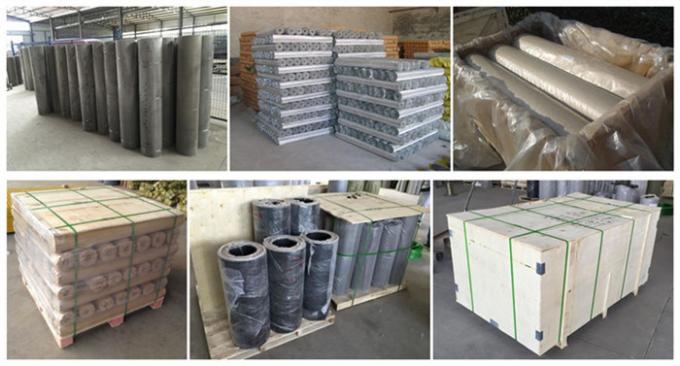

Packaging

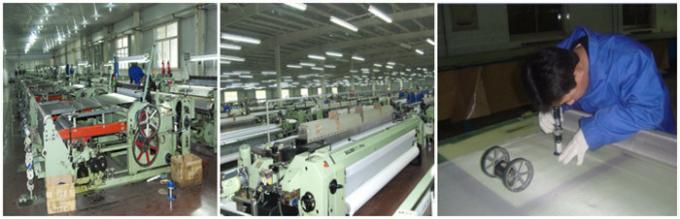

Workshop Showing
Specification
Specification list of Stainless Steel Wire Mesh / Woven Wire Cloth | |||||
Meshes Per Linear Inch | Diameter of Wire | Width of Opening | Open Area, % | ||
Inches | mm | Inches | mm | ||
10 x 10 | 0.047 | 1.2 | 0.053 | 1.34 | 28.1 |
10 x 10 | 0.035 | 0.9 | 0.065 | 1.65 | 42.3 |
10 x 10 | 0.032 | 0.8 | 0.068 | 1.27 | 46.2 |
10 x 10 | 0.025 | 0.63 | 0.075 | 1.90 | 56.3 |
12 x 12 | 0.041 | 1.0 | 0.042 | 1.06 | 25.4 |
12 x 12 | 0.035 | 0.9 | 0.048 | 1.22 | 33.2 |
12 x 12 | 0.032 | 0.8 | 0.051 | 1.29 | 37.5 |
12 x 12 | 0.028 | 0.7 | 0.055 | 1.39 | 43.6 |
12 x 12 | 0.023 | 0.58 | 0.060 | 1.52 | 51.8 |
14 x 14 | 0.032 | 0.8 | 0.039 | 1.52 | 29.8 |
14 x 14 | 0.025 | 0.63 | 0.046 | 0.99 | 41.5 |
14 x 14 | 0.023 | 0.58 | 0.048 | 1.22 | 45.2 |
14 x 14 | 0.020 | 0.5 | 0.051 | 1.30 | 51.0 |
16 x 16 | 0.028 | 0.7 | 0.035 | 0.89 | 30.5 |
16 x 16 | 0.023 | 0.58 | 0.040 | 1.01 | 39.9 |
16 x 16 | 0.018 | 0.45 | 0.045 | 1.14 | 50.7 |
18 x 18 | 0.020 | 0.5 | 0.036 | 0.91 | 41.1 |
18 x 18 | 0.018 | 0.45 | 0.038 | 0.96 | 48.3 |
20 x 20 | 0.023 | 0.58 | 0.027 | 0.68 | 29.2 |
20 x 20 | 0.020 | 0.5 | 0.030 | 0.76 | 36.0 |
20 x 20 | 0.018 | 0.45 | 0.032 | 0.81 | 41.0 |
20 x 20 | 0.016 | 0.40 | 0.034 | 0.86 | 46.2 |
24 x 24 | 0.014 | 0.35 | 0.028 | 0.71 | 44.2 |
28 x 28 | 0.010 | 0.25 | 0.026 | 0.66 | 51.8 |
30 x 30 | 0.013 | 0.33 | 0.020 | 0.50 | 37.1 |
30 x 30 | 0.012 | 0.30 | 0.021 | 0.53 | 40.8 |
35 x 35 | 0.012 | 0.30 | 0.017' | 0.43 | 33.8 |
35 x 35 | 0.010 | 0.25 | 0.019 | 0.48 | 42.4 |
40 x 40 | 0.014 | 0.35 | 0.011 | 0.28 | 19.3 |
40 x 40 | 0.012 | 0.30 | 0.013 | 0.33 | 27.4 |
40 x 40 | 0.010 | 0.25 | 0.015 | 0.38 | 36.0 |
40 x 40 | 0.0095 | 0.24 | 0.016 | 0.40 | 38.4 |
50 x 50 | 0.009 | 0.23 | 0.011 | 0.28 | 30.3 |
60 x 60 | 0.0075 | 0.19 | 0.009 | 0.22 | 30.5 |
70 x 70 | 0.0065 | 0.17 | 0.008 | 0.20 | 29.8 |
80 x 80 | 0.0070 | 0.18 | 0.006 | 0.15 | 19.4 |
80 x 80 | 0.0055 | 0.14 | 0.007 | 0.17 | 31.4 |
90 x 90 | 0.0055 | 0.14 | 0.006 | 0.15 | 25.4 |
100 x 100 | 0.0045 | 0.11 | 0.006 | 0.15 | 30.3 |
120 x 120 | 0.0040 | 0.10 | 0.0043 | 0.11 | 26.6 |
120 x 120 | 0.0037 | 0.09 | 0.005 | 0.12 | 30.7 |
150 x 150 | 0.0026 | 0.066 | 0.0041 | 0.10 | 37.4 |
165 x 165 | 0.0019 | 0.048 | 0.0041 | 0.10 | 44.0 |
180 x 180 | 0.0023 | 0.058 | 0.0032 | 0.08 | 33.5 |
180 x 180 | 0.0020 | 0.050 | 0.0035 | 0.09 | 41.1 |
200 x 200 | 0.0020 | 0.050 | 0.003 | 0.076 | 36.0 |
200 x 200 | 0.0016 | 0.040 | 0.0035 | 0.089 | 46.0 |
220 x 220 | 0.0019 | 0.048 | 0.0026 | 0.066 | 33.0 |
230 x 230 | 0.0014 | 0.035 | 0.0028 | 0.071 | 46.0 |
250 x 250 | 0.0016 | 0.040 | 0.0024 | 0.061 | 36.0 |
270 x 270 | 0.0014 | 0.040 | 0.0022 | 0.055 | 38.0 |
300 x 300 | 0.0012 | 0.030 | 0.0021 | 0.053 | 40.1 |
325 x 325 | 0.0014 | 0.040 | 0.0017 | 0.043 | 30.0 |
325 x 325 | 0.0011 | 0.028 | 0.0020 | 0.050 | 42.0 |
400 x 400 | 0.0010 | 0.025 | 0.0015 | 0.038 | 36.0 |
500 x 500 | 0.0010 | 0.025 | 0.0011 | 0.028 | 25.0 |
635 x 635 | 0.0009 | 0.022 | 0.0006 | 0.015 | 14.5 |
mesh | wire dia (MM) | Material (AISI) |
12 X 64 | 0.58/0.40 | 304 316 |
24 X 110 | 0.36/0.25 | 30.316 |
14 X88 | 0.50/0.33 | 30.316 |
30 X150 | 0.18/0.14 | 30.316 |
40 X200 | 0.14/0.11 | 30.316 |
50 X250 | 0.10/0.071 | 30.316 |
80 X700 | 0.06/0.05 | 30.316 |
165 X800 | 0.071/0.040 | 30.316 |
165 X1400 | 0.05/0.032 | 30.316 |
200 X1800 | 0.05/0.03 | 30.316 |
325 X2300 | 0.030/0.025 | 316L |
400 X2800 | 0.030/0.02 | 316L |
