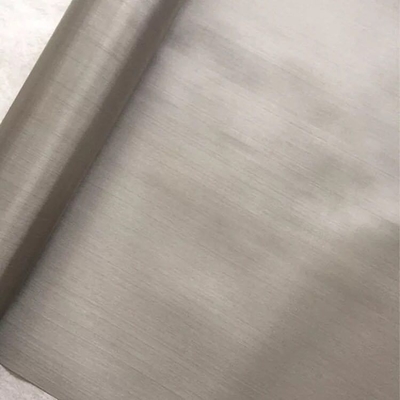

304, 316 Stainless Steel Woven Wire Mesh/High Temperature Stainless Steel Wire Mesh

304, 316 Stainless Steel Woven Wire Mesh/High Temperature Stainless Steel Wire Mesh

Description
Model NO.: PH00156 Wire Mesh Width: 1m
Technique: Woven Nickels: 10%
Mesh Max: 0.5 Micron Width: 0- 2 Meters
Transport Package: Standard Exporting Trademark: Philis
Origin: China HS Code: 7314490000
Supply Ability: 500000/Square Meters Material: Stainless Steel 304 316 316L
Hole Shape: Square Application: Filter, Construction Wire Mesh, Protecting Mesh, Screen, Decorative Mesh, Fence Mesh, Barbecue Wire Mesh, Window Curtain, Cages
Type: Stainless Steel Plain Wire Mesh Material Type: Stainless Steel Wire
Weave Technique: Plain Weave Samples: US$ 0/Piece 1 Piece(Min.Order) | Request Sample
Customization: Available | Customized Request

Product Description

Company Info.

Customer Question & Answer
Ask something for more details

Basic Info.

Model NO.
PH00156
Wire Mesh Width
1m
Technique
Woven
Nickels
10%
Certification
ISO9001
Mesh Max
0.5 Micron
Width
0- 2 Meters
Transport Package
Standard Exporting
Trademark
philis
Origin
China
HS Code
7314490000
Production Capacity
500000/Square Meters

Product Description

60 micron mesh stainless steel wire mesh 304 316 321 430 Monel 400 Inconel 600 Inconel 601

Product Description

Product Description

Material:
Plain steel, stainless steel(304, 316, 316L), aluminum, copper, brass, bronze, etc.
Features:
Heat resisting,Corrosion resisting, Acid resisting
Applications:
Mainly used for filtering and sieving,  extensively used in petroleum, chemical industry, enviroment protection, mine, airspace, paper-making, electronic, metallurgy etc.
Weave Type:
Plain weave, Twill Weave, Plain Dutct Weave, Twill Dutct Weave, Reversed Dutch Weave.
High Quality Stainless Steel Wire Mesh

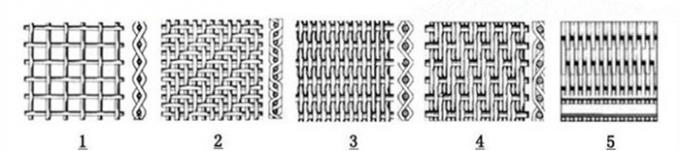

1. Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.

2. Twill Weave:  In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.

3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.

4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.

5. Reversed Dutch Weave:  difference from standard Dutch weave lies in the thicker warp wires and less weft wires.

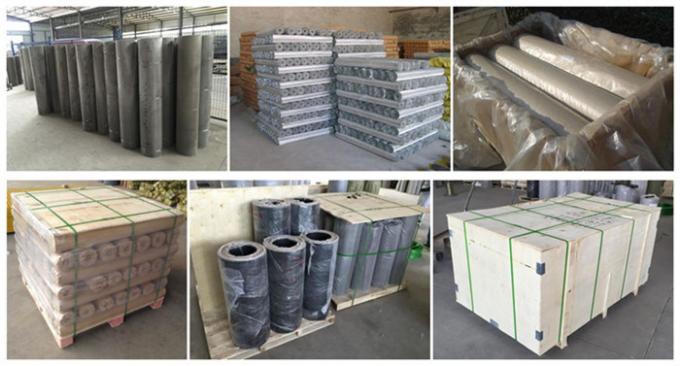

Packaging

High Quality Stainless Steel Wire Mesh

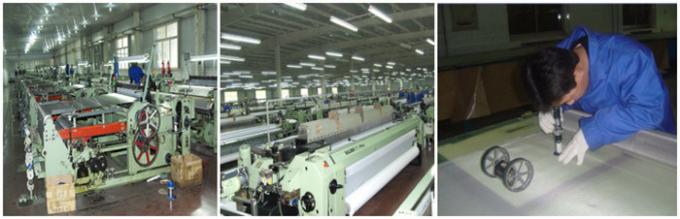

Workshop Showing

High Quality Stainless Steel Wire Mesh
Specification

Specification list of Stainless Steel Wire Mesh / Woven Wire Cloth
Meshes Per Linear InchDiameter of WireWidth of OpeningOpen
Area, %
InchesmmInchesmm
10 x 100.0471.20.0531.3428.1
10 x 100.0350.90.0651.6542.3
10 x 100.0320.80.0681.2746.2
10 x 100.0250.630.0751.9056.3
12 x 120.0411.00.0421.0625.4
12 x 120.0350.90.0481.2233.2
12 x 120.0320.80.0511.2937.5
12 x 120.0280.70.0551.3943.6
12 x 120.0230.580.0601.5251.8
14 x 140.0320.80.0391.5229.8
14 x 140.0250.630.0460.9941.5
14 x 140.0230.580.0481.2245.2
14 x 140.0200.50.0511.3051.0
16 x 160.0280.70.0350.8930.5
16 x 160.0230.580.0401.0139.9
16 x 160.0180.450.0451.1450.7
18 x 180.0200.50.0360.9141.1
18 x 180.0180.450.0380.9648.3
20 x 200.0230.580.0270.6829.2
20 x 200.0200.50.0300.7636.0
20 x 200.0180.450.0320.8141.0
20 x 200.0160.400.0340.8646.2
24 x 240.0140.350.0280.7144.2
28 x 280.0100.250.0260.6651.8
30 x 300.0130.330.0200.5037.1
30 x 300.0120.300.0210.5340.8
35 x 350.0120.300.017'0.4333.8
35 x 350.0100.250.0190.4842.4
40 x 400.0140.350.0110.2819.3
40 x 400.0120.300.0130.3327.4
40 x 400.0100.250.0150.3836.0
40 x 400.00950.240.0160.4038.4
50 x 500.0090.230.0110.2830.3
60 x 600.00750.190.0090.2230.5
70 x 700.00650.170.0080.2029.8
80 x 800.00700.180.0060.1519.4
80 x 800.00550.140.0070.1731.4
90 x 900.00550.140.0060.1525.4
100 x 1000.00450.110.0060.1530.3
120 x 1200.00400.100.00430.1126.6
120 x 1200.00370.090.0050.1230.7
150 x 1500.00260.0660.00410.1037.4
165 x 1650.00190.0480.00410.1044.0
180 x 1800.00230.0580.00320.0833.5
180 x 1800.00200.0500.00350.0941.1
200 x 2000.00200.0500.0030.07636.0
200 x 2000.00160.0400.00350.08946.0
220 x 2200.00190.0480.00260.06633.0
230 x 2300.00140.0350.00280.07146.0
250 x 2500.00160.0400.00240.06136.0
270 x 2700.00140.0400.00220.05538.0
300 x 3000.00120.0300.00210.05340.1
325 x 3250.00140.0400.00170.04330.0
325 x 3250.00110.0280.00200.05042.0
400 x 4000.00100.0250.00150.03836.0
500 x 5000.00100.0250.00110.02825.0
635 x 6350.00090.0220.00060.01514.5

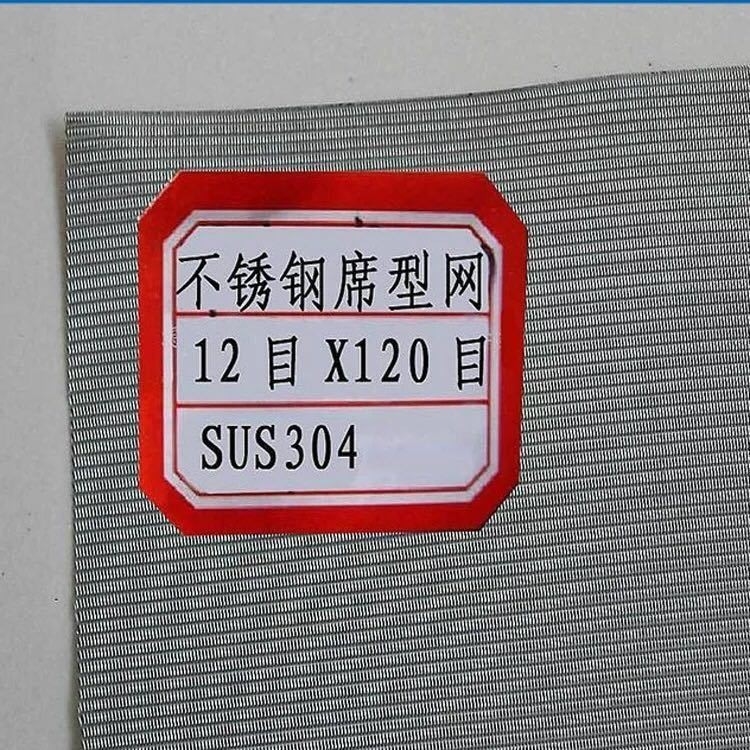

Duth weaving stainless steel wire mesh reference specification:
meshwire dia (MM)Material (AISI)
12 X 640.58/0.40304  316
24 X 1100.36/0.2530.316
14  X880.50/0.3330.316
30 X1500.18/0.1430.316
40 X2000.14/0.1130.316
50 X2500.10/0.07130.316
80 X7000.06/0.0530.316
165 X8000.071/0.04030.316
165 X14000.05/0.03230.316
200 X18000.05/0.0330.316
325 X23000.030/0.025316L
400 X28000.030/0.02316L


Q: ,What certifacation you have?

We have got ISO9001 and SGS certification

Q: How long is your delivery time?

A: Generally it is 5-10 working days if the goods are in stock. or it is 15-20 days if the goods are not in stock.It depends on the quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, balance before shippment.
 Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them.

Q:What should I do if I'm not satisfied with your product?
A:Please contact us as soon as possible and tell us where went wrong.We can only accept refund or exchange if there is any quality issue.

IF you have some interesting please contact us without any hesitate, we will reply you within 24 hours and welcome to have a visit to our factory for more further business and know each other better. We do have the keen interesting to cooperate with you.
