Oval Filter Bag Cage for Bag House Dust Collector

China Riqi ( Hangzhou ) Filter Technology Co., Ltd. certification
China Riqi ( Hangzhou ) Filter Technology Co., Ltd. certification
I'm Online Chat Now

Oval Filter Bag Cage for Bag House Dust Collector

Oval Filter Bag Cage for Bag House Dust Collector

Transport Package: Standard Export Package Specification: Customized Size
Trademark: Philis Origin: China
Supply Ability: 5000PCS/Week Certification: CE, ISO
Installation Method: Vertical Operation Type: Manually
Medium Material: Organosilicone Dust Collecting Method: Dust Collector
Type: Filter Cartridge Dust Collector Samples: US$ 30/Piece 1 Piece(Min.Order) | Request Sample
Customization: Available | Customized Request

Product Description

Company Info.

Customer Question & Answer
Ask something for more details

Basic Info.

Transport Package
Standard Export Package
customized size
Production Capacity

Product Description

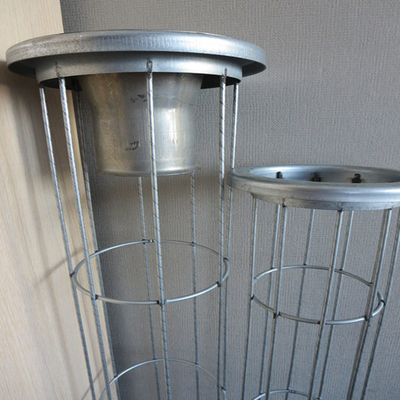

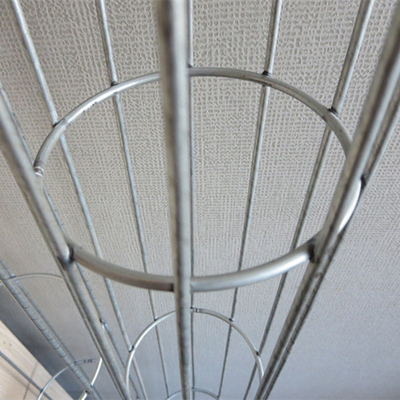

Oval filter bag cage for bag house dust collector

Dust Collector introduction

The material of  stainless steel filter cage is 304 stainless steel . Stainless steel filter cage has good heat resistance and  anti corrosion.  And its service life is several times or even ten times that of carbon steel. It is often used in special industries such as food processing factory, waste incineration, non-ferrous metal smelting and chemical production.




Round Style/Flat Style/Envelope Style/ Special Style

Number Of Wires:

8/10/12/16/20/24 vertical wires

Ring Space:

Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm)

Cage Diameter:

Cage diameters range from 4 inch to 8 inch (100mm to 200mm)

Wire thickness:

Wire thickness ranges are 2mm to 5mm


Carbon Stee, Galvanized Steel, Stainless Steel


Epoxy, PVC vinyl coating

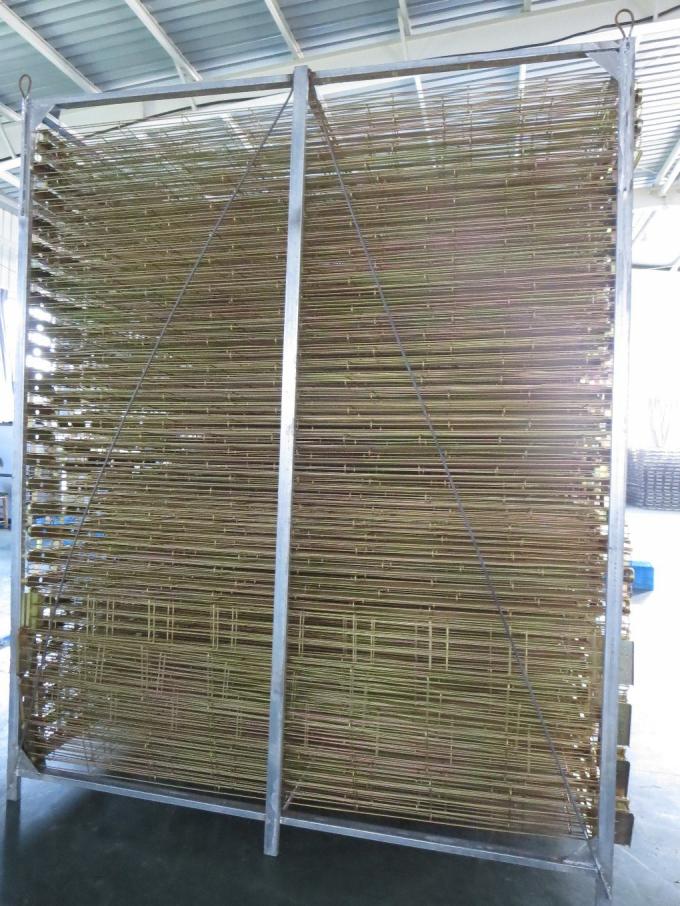

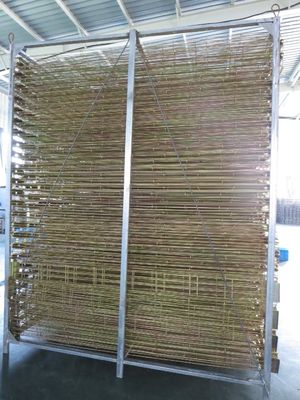

Cages are packed in custom designed cartons


Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments.


Advantages: corrosion damage

3.3-5 times longer life than other bag Cage with steel
4. economical maintenance(almost no Maintenance required)
5.prominent effect in removing dust from Filter by pulsing

6.easy to install ventury installation required

Standard Technical Data

Round Style


Bag Diameter(mm)




2000,2400 2800,








Flat Style


Bag Perimeter




2000 3000 4000
5000 6000




Envelope Style

Length Width Thickness

Bag Length Width Thickness




Product Advantage

Round shape filter cage

1. The circular structure is adopted, and the longitudinal reinforcement and the reverse supporting ring of the bag cage are evenly distributed.
2. Sufficient strength and stiffness to prevent damage and deformation.
3. The top is equipped with a cold stamping short tube to ensure the safety of the cage and the protection of the filter bag.


Filter cage material

1. Stainless steel is used to form a skeleton production line for one time
2. Ensure straightness and distortion. Filter bag frame is smooth and burr free after welding.
3.There is sufficient strength without soldering, no soldering, virtual welding and missing welding.


Galvanizing technology

1.Zinc layer is strong, wear-resistant and corrosion resistant.
2.It avoids the corrosion of the skeleton surface and the adhesion of filter bags after a period of time.
3.The bag is guaranteed to be smooth and the damage to the bag is reduced during the bag changing process.

Oval Filter Bag Cage for Bag House Dust Collector
Oval Filter Bag Cage for Bag House Dust Collector
Oval Filter Bag Cage for Bag House Dust Collector


Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q2. Can you suggest me a suitable type?
A: Certainly, Once you give me the keyword. The most suitable size will be choose to meet your need

Q3. How about your delivery time?
A: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.

Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
