24 Wires 20 Wires Filter Bag Cage High Temperature Silicon Coating

24 Wires 20 Wires Filter Bag Cage High Temperature Silicon Coating
24 Wires 20 Wires Filter Bag Cage High Temperature Silicon Coating 24 Wires 20 Wires Filter Bag Cage High Temperature Silicon Coating 24 Wires 20 Wires Filter Bag Cage High Temperature Silicon Coating 24 Wires 20 Wires Filter Bag Cage High Temperature Silicon Coating 24 Wires 20 Wires Filter Bag Cage High Temperature Silicon Coating 24 Wires 20 Wires Filter Bag Cage High Temperature Silicon Coating

Large Image :  24 Wires 20 Wires Filter Bag Cage High Temperature Silicon Coating

Product Details:
Place of Origin: Hangzhou
Brand Name: RIQI
Certification: ISO9001 SGS

24 Wires 20 Wires Filter Bag Cage High Temperature Silicon Coating

Description
Model NO.: PH00230 Filtration Grade: Medium Filter
Filter Bag Sectional Shape: Round Bag Filter Bag Environment: High-Temperature
Cartridge Installation: Vertical Lifting Finishing: Zinc-Galvanization Or Silicon Coating Or Epoxy
Materials: Carbon Steel Or SS304,316,316L Transport Package: Standard Export
Specification: 1m X 1m X 1m Trademark: Philis
Origin: China HS Code: 5911900
Supply Ability: 50000PCS / Week Material: Carbon Steel
Medium Material: Steel Cartridge Filter: Matel
Filter Bag Filter: The Filter Type Type: Housing
Usage: Dust Filter, Air Filter Samples: US$ 0/Piece 1 Piece(Min.Order) | Request Sample
Customization: Available | Customized Request
High Light:

20 Wires Filter Bag Cage

,

24 Wires Filter Bag Cage

24 Wires, 20 Wires Filter Bag Cage for Fiberglass Filter Bag Frame



Product Description

Company Info.

Customer Question & Answer

Ask something for more details

Basic Info.

Model NO.
PH00230
Filtration Grade
Medium Filter
Filter Bag Sectional Shape
Round Bag
Filter Bag Environment
High-Temperature
Cartridge Installation
Vertical Lifting
Finishing
Zinc-Galvanization or Silicon Coating or Epoxy
Materials
Carbon Steel or SS304,316,316L
Transport Package
Standard Export
Specification
1m x 1m x 1m
Trademark
philis
Origin
China
HS Code
5911900
Production Capacity
50000PCS / Week

Product Description


industrial Dust collector fittings Galvanized Steel Filter Bag Cage
1.Filter bag cage to be galvanized/silicon coating
2.Carbon or Stainless steel
3.ISO9001:2008 Certified
5.Any length or dia.

The filter bag cage is the support of filter bag and it should be light and easy for installation and maintenance. The quality of filter cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.
24 Wires, 20 Wires Filter Bag Cage for Fiberglass Filter Bag Frame
24 Wires, 20 Wires Filter Bag Cage for Fiberglass Filter Bag Frame



                                                         Specifications For Filter Bag Cage with venturi for dust collector


Types Round Style/Flat Style/Envelope Style/ Special Style
Number Of Wires 8/10/12/16/20/24 vertical wires
Ring Space Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm)
Cage Diameter Cage diameters range from 4 inch to 8 inch (100mm to 200mm)
Wire thickness Wire thickness ranges are 2mm to 5mm
Material Carbon Stee, Galvanized Steel, Stainless Steel
Finishment Epoxy, PVC vinyl coating
Packaging Cages are packed in custom designed cartons
Usage Dust from factory of mine, wood,Cement, chemical, medicine,
dying,Paint, plastic,food & other industry,such as coal fired
power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments.
Advantages 1.no corrosion
2.no damage
3.3-5 times longer life than other bag Cage with steel

24 Wires, 20 Wires Filter Bag Cage for Fiberglass Filter Bag Frame

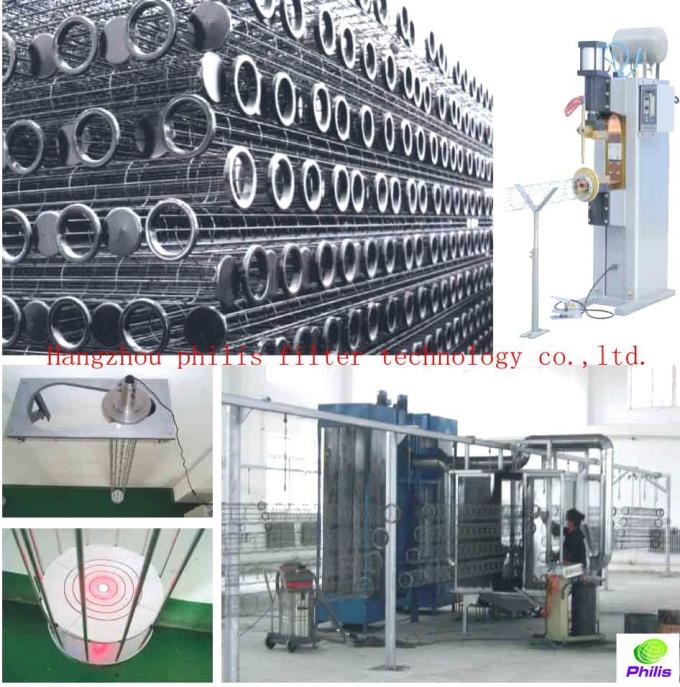

Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.

Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.

The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer's praise.


Q: ,What certifacation you have?

We have got ISO9001 and SGS certification

Q: How long is your delivery time?

A: Generally it is 5-10 working days if the goods are in stock. or it is 15-20 days if the goods are not in stock.It depends on the quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, balance before shippment.
 Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them.

Q:What should I do if I'm not satisfied with your product?
A:Please contact us as soon as possible and tell us where went wrong.We can only accept refund or exchange if there is any quality issue.

IF you have some interesting please contact us without any hesitate, we will reply you within 24 hours and welcome to have a visit to our factory for more further business and know each other better. We do have the keen interesting to cooperate with you near futur
