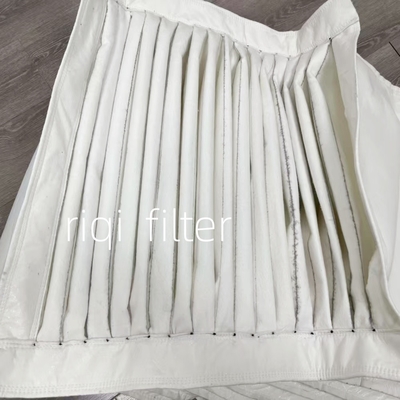

Synthetic Frameless Pocket Filter Dust Collector Bags 1.5mm To 2.2 Mm

Multi-pocket industrial Nonwoven Fabric Air Pocket Filter

QUICK DETAILS:

1 - Good quality acrylic needle felt made with advanced machinery

2 - Accordingly adjusted technical process

3 - Strict raw material control and products quality control

4 - Competitive price

5. USA Standard

6. ISO certification


Introduction

Filter bag is the core of the dust filter components. The filter bag has the strict requirements on design, filter material cutting, woven technology etc. These requirements are very important for the normal operation of the bag filter and convenient maintenance, and it is great significance to enlong the service life of the filter bag.


Structure and application

Filter bag are composed by woven filter material bag body and supported in role, snap ring, clamp, chain hoist, etc. The rest of the filter bag dust collector and its accessories are the venturi tube, frame, mouth of elastic ring, etc.


Filter bag material

We can supply kinds of material of filter bag, the following are the main material:

1. Polyester(PET) filter bag, used in dust temperature lower 130 celsius working condition.

2. Nomex (aramid) filter bag, used in dust temperature lower 200 celsius working condition. like asphalt.

3. PTFE filter bag,used in dust temperature lower 260 celsius working condition. it can be used all working conditions.

4. Fiber glass filter bag, used in dust temperature lower 260 celsius working condition.

5. others, like P84, PPS


specification:

Item				Unit			Parameter
Material				Face:100%PPS			Scrim:100%PPS
Grammas Per Square Meter				g/m2			550±5%
Thickness				mm			1.8±0.2
Air Permeability(200Pa)				L/dm2.min			120~150
		Cont		ºC			160
Temperature Resistance		Peaks					190
		Warp		N/50*200mm			≥900
Minimum Breaking Strength		Weft					≥1200
		Warp		%			≤30
Elongation at Break		Weft					≤50
Surface Design Treatment				Singeing,Calendering,Heat-set
Using Scope				Coal-fired power plant,Chemical industry

FAQ

1. May I get samples?

Yes,

For OEM sample, usually takes about 5~15 days, it depends on design and technique.

2. Can you make my logo on package?

Of course! You only need provide us your original logo file or clear picture, so we can make it.

3. What is the payment method?

Bank transfer (T/T), Western Union, Money gram, L/C, paypal

4. How long production takes?

It is usually in 5~7 days after getting your payment and all the details confirmed.
