PE19-17 Fluidized Bed Drying Filter Bag 500 L/hr Capacity

MOQ:	1
Price:	200

Detail Information

Product Description

Detail Information

Model NO.:

PE19-17

Cleaning Method:

Automated Cleaning

Filtration Capacity:

500 L/hr

Material:

Nylon, Polypropylene, PTFE, PVDF, Polyester

Operating Pressure:

200

Mesh Opening:

5micorn, 10micron

Width:

150cm

Medium Material:

Microfiber

Filtration Grade:

HEPA Filter

Filter Bag Shape:

Round Bag

Filter Bag Environment:

High-Temperature

Cartridge Installation:

Vertical Lifting

Specification:

1m X 1m X 1m

Production Capacity:

500000PCS / Week

Weight:

191 G/m2

Highlight:

Fluidized bed drying filter bag

Dust filter bag 500 L/hr

PE19-17 filter bag with warranty

Product Description

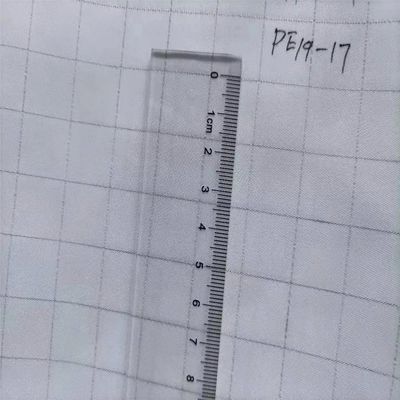

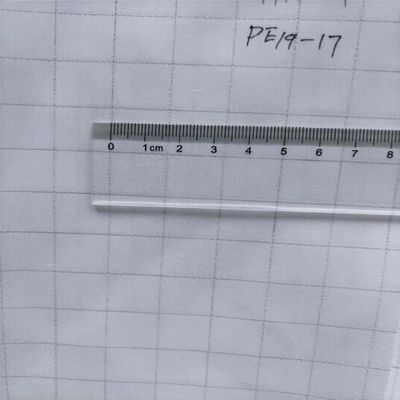

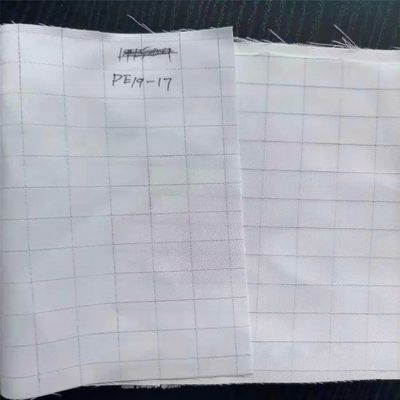

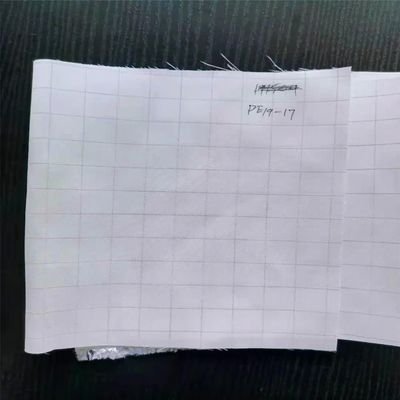

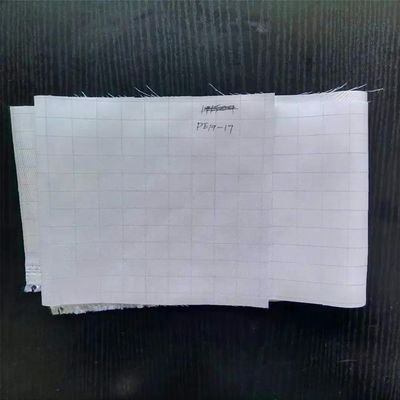

Pharmaceutical Factory Filter Bag PE19-17

Antistatic Filter Cloth for Pharmaceutical Factory

High-quality antistatic filter cloth designed specifically for pharmaceutical manufacturing environments, offering superior dust filtration and durability.

Product Specifications

Item	Value
Condition	New
Warranty	6 months
Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works, Energy & Mining
After Warranty Service	Video technical support
Marketing Type	New Product 2020
Core Components	Filter Bag
Place of Origin	China, Shanghai
Brand Name	philis
Type	Pocket Filter
Usage	DUST FILTER
Material Of Bag	PE
Product Name	Fluidized Bed Drying Multi-finger Filter Bag
Size	According To Equipment Customization

Technical Parameters

Parameter	Unit	Index
Air Permeability (200Pa)	L/m²/S	258.64
Breaking Strength (Warp)	N/5*20cm	1242.5
Breaking Strength (Weft)	N/5*20cm	1570.5
Breaking Elongation (Warp)	%	42
Breaking Elongation (Weft)	%	33.4
Thickness	mm	0.43
Weight	g/m²	191

Fluidized Bed Spirulina Powder Granulator cloth bag, Spirulina Powder Spray Drying cloth bag, antistatic filter cloth, drying cloth bag.

Characteristic: Good air permeability, easy to clean and recyclable, meet the requirements of pharmaceutical/food industry.

Antistatic water proof cloth bag is a cloth bag used for granulation of highly viscous materials, such as extract powder. It has the characteristics of non-stick cloth bag, good permeability, good boiling effect and so on.

FBD Finger Bag Features

Made from superior quality fabrics tailored to material drying requirements
Available in various materials: Antistatic, Polypropylene, Polyester, Stain-resistant
Manufactured according to required factors like retention micron, static change and air permeability
Cost-efficient and durable construction with regular quality testing
Finger-like structures increase surface area and efficiency
Constructed from combination of antistatic polymer, nylon fabric and cotton fabric
Excellent resistance to wear and abrasion
Extremely durable construction with high flow rate

Applications

Pharmaceutical industry, Chemical industry, Agricultural industry, Processing industry

Frequently Asked Questions

Q: What certification do you have?

A: We have got ISO9001 and SGS certification.

Q: How long is your delivery time?

A: Generally it is 5-10 working days if the goods are in stock, or 15-20 days if the goods are not in stock. It depends on the quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment?

A: Payment ≤1000USD, 100% in advance. Payment ≥1000USD, 30% T/T in advance, balance before shipment.

Q: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q: How do you make our business long-term and good relationship?

A: 1. We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them.

Q: What should I do if I'm not satisfied with your product?

A: Please contact us as soon as possible and tell us where went wrong. We can only accept refund or exchange if there is any quality issue.

If you have any questions, please contact us without hesitation. We will reply within 24 hours and welcome you to visit our factory for further business discussions.
