products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Dust Filter Bag
Created with Pixso.

1-10 Micron Anti-Static Filter Cloth Stainless Steel 1.5M Width

1-10 Micron Anti-Static Filter Cloth Stainless Steel 1.5M Width

1-10 Micron Anti-Static Filter Cloth Stainless Steel 1.5M Width

MOQ: 100
Price: 20
Detail Information
Product Description
Detail Information
Mesh Opening:
1 To 10 Micron
Width:
1.5 Meter
Thickness:
0.2mm
Weight:
300G/M2
Antistatic Material:
Stainless Steel Fiber
Filtration Capacity:
500 L/hr
Operating Pressure:
200
Breaking Strength Warp:
1242.5 N/5*20cm
Breaking Strength Weft:
1570.5 N/5*20cm
Breaking Elongation Warp:
42%
Breaking Elongation Weft:
33.4%
Air Permeability:
258.64 L/m2/S
Material:
Nylon, Polypropylene, PTFE, PVDF, Polyester
Production Capacity:
500000PCS / Week
Cleaning Method:
Automated Cleaning
Highlight:

1-10 micron anti-static filter cloth

,

stainless steel dust filter bag

,

1.5M width anti-static filter

Product Description
1 to 10 Micron Anti-Static Filter Cloth Stainless Steel Grid for FBD
Product Overview

Anti-static filter cloth with stainless steel grid pattern designed for industrial filtration applications in fluidized bed dryers.

Product Specifications
Item Value
Condition New
Warranty 6 months
Applicable Industries Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works, Energy & Mining
After Warranty Service Video technical support
Marketing Type New Product 2020
Core Components Filter Bag
Place of Origin China
Brand Name RQ
Type Filter Cloth
Usage DUST FILTER
Material Of Bag Polyester
Product Name Anti-static filter cloth Stainless Steel grid pattern
Application Fluidized Bed Dryer
Size According To Equipment Customization
Technical Parameters
Parameter Unit Index
Air permeability (200Pa) L/m²/S 258.64
Breaking strength (warp) N/5*20cm 1242.5
Breaking strength (weft) N/5*20cm 1570.5
Breaking elongation (warp) % 42
Breaking elongation (weft) % 33.4
Thickness mm 0.2
Weight g/m² 300
Product Features
  • Good air permeability for efficient filtration
  • Easy to clean and recyclable
  • Meets pharmaceutical/food industry requirements
  • Non-stick surface for highly viscous materials
  • Excellent resistance to wear and abrasion
  • Extremely durable construction
  • High flow rate with good particle retention
Applications

Pharmaceutical industry, Chemical industry, Agricultural industry, Processing industry, Spirulina powder granulation, Spray drying processes.

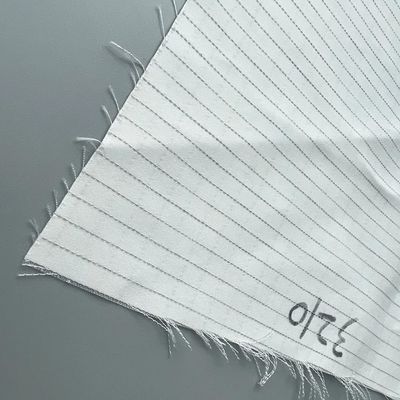

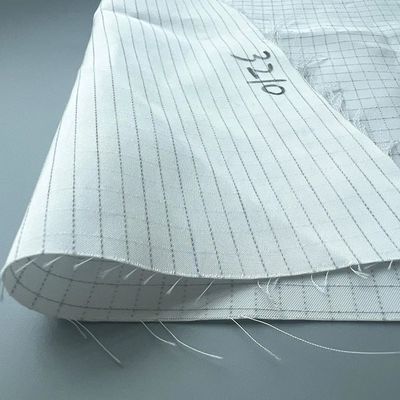

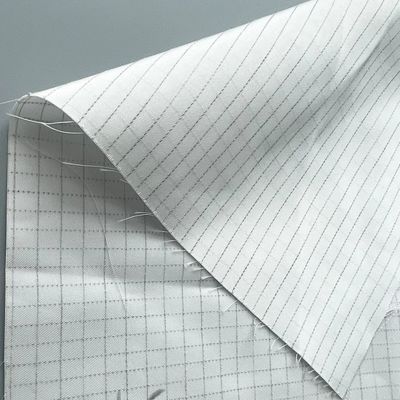

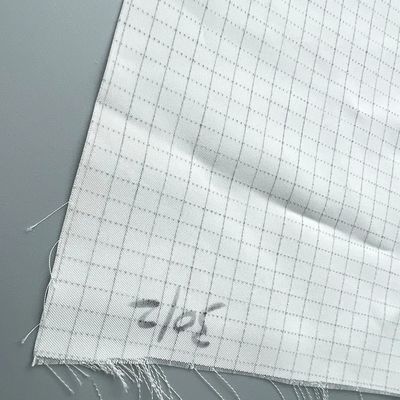

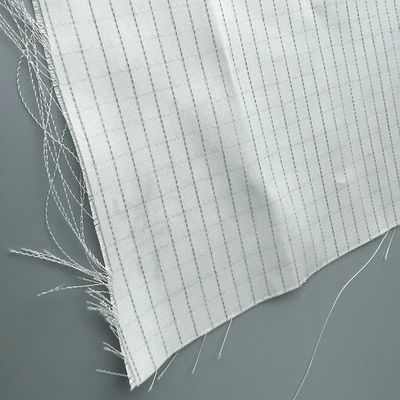

Product Images
1-10 Micron Anti-Static Filter Cloth Stainless Steel 1.5M Width 0 1-10 Micron Anti-Static Filter Cloth Stainless Steel 1.5M Width 1 1-10 Micron Anti-Static Filter Cloth Stainless Steel 1.5M Width 2 1-10 Micron Anti-Static Filter Cloth Stainless Steel 1.5M Width 3 1-10 Micron Anti-Static Filter Cloth Stainless Steel 1.5M Width 4 1-10 Micron Anti-Static Filter Cloth Stainless Steel 1.5M Width 5 1-10 Micron Anti-Static Filter Cloth Stainless Steel 1.5M Width 6
Frequently Asked Questions
Q: What certification do you have?
We have ISO9001 and SGS certification.
Q: How long is your delivery time?
Generally 5-10 working days if goods are in stock, or 15-20 days if not in stock. Depends on quantity.
Q: Do you provide samples? Is it free or extra?
Yes, we offer samples free of charge but customer pays freight cost.
Q: What are your payment terms?
Payment ≤1000USD: 100% in advance. Payment ≥1000USD: 30% T/T in advance, balance before shipment.
Q: Do you test all goods before delivery?
Yes, we perform 100% testing before delivery.
Q: What if I'm not satisfied with your product?
Contact us immediately. We accept refund or exchange for quality issues.
Contact us within 24 hours for inquiries or factory visits. We look forward to establishing long-term business relationships.
