Nom/Aramid /P84 Polyimid Filter Felt Cloth

Nom/Aramid /P84 Polyimid Filter Felt Cloth

Description
Model NO.: P84 Filtration Grade: HEPA Filter
Filter Bag Sectional Shape: Round Bag Filter Bag Environment: High-Temperature
Cartridge Installation: Vertical Lifting Working Temperature: 260
Anti Acidic: Excellent Anti Alkaline: Excellent
Thickness: 2mm To 5mm Weight: 300GSM To 1000GSM
Transport Package: Standard Export Packing Specification: P84
Trademark: RQ Origin: China
HS Code: 5911900 Supply Ability: 500PCS / Week
Material: Non-woven Medium Material: P84
Cartridge Filter: Polyimid Fiber Filter Bag Filter: The Filter Type
Type: House Filter Bag Usage: Dust Filter, Air Filter
Samples: US$ 0/Square Meter 1 Square Meter(Min.Order) | Requ Customization: Available | Customized Request

Product Description

Company Info.

Customer Question & Answer
Ask something for more details

Basic Info.

Model NO.
P84
Filtration Grade
HEPA Filter
Filter Bag Sectional Shape
Round Bag
Filter Bag Environment
High-Temperature
Cartridge Installation
Vertical Lifting
Working Temperature
260
Anti Acidic
Excellent
Anti Alkaline
Excellent
Thickness
2mm to 5mm
Weight
300GSM to 1000GSM
Transport Package
Standard Export Packing
Specification
p84
Trademark
RQ
Origin
China
HS Code
5911900
Production Capacity
500PCS / Week

Product Description

Nom/Aramid /P84 Polyimid Filter Felt ClothNom/Aramid /P84 Polyimid Filter Felt Cloth
Nom/Aramid /P84 Polyimid Filter Felt ClothNom/Aramid /P84 Polyimid Filter Felt ClothNom/Aramid /P84 Polyimid Filter Felt Cloth

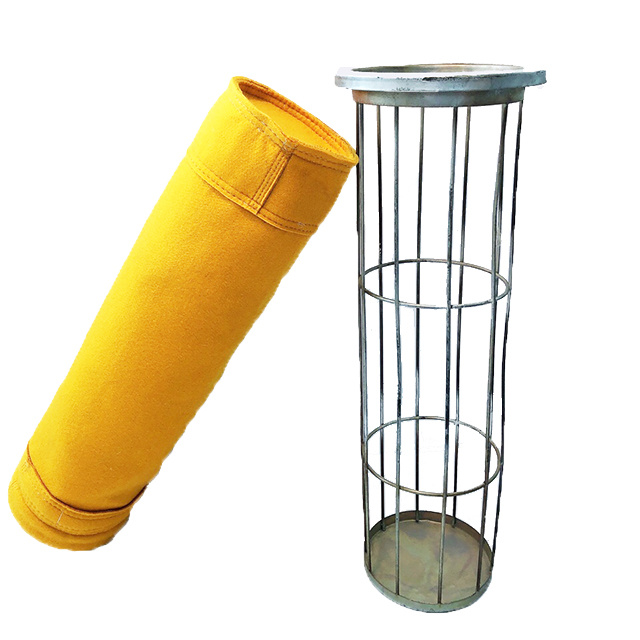

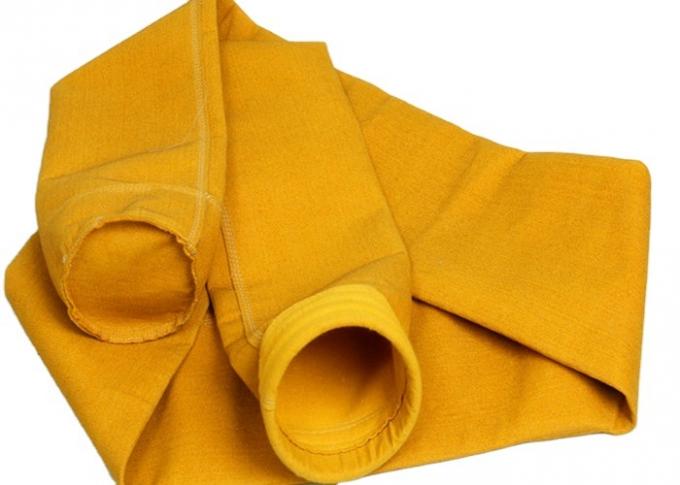

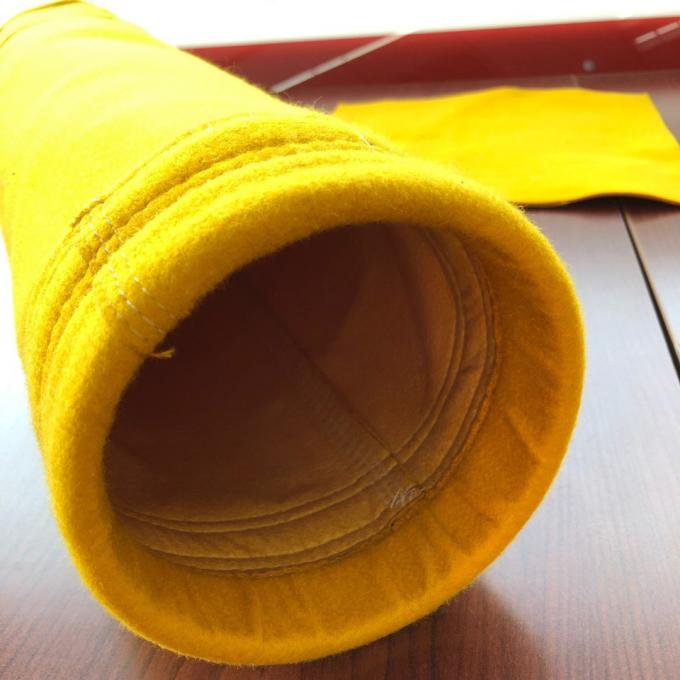

P84 high temperature resistance P84 PTFE filter bags 260 degree sleeves dust filter bags

Riqi produces p84 high-temperature needle-resistant filter felt which  polyimide fiber produced by Austria LENZING Company. The filter material has the following three characteristics:

  1. significant temperature resistance; operating temperature 260ºC, but with safe space to cope with downtime and accidents.
  2. good chemical resistance; the filtration value of p84 filter bag on acid waste dust has been confirmed in the past ten years of garbage incineration.
  3. Low back washing pressure and high efficiency of breaking away dust cake, The p84 characteristics are significant because of the fineness of the fiber itself, and the irregular fiber cross section increases the fiber surface area to the maximum and provides a lot of tiny pores to make the surface filtration effect better than the depth filtration.The dust only stays on the surface of the filter felt and does not penetrate into the filter felt. Therefore, the reverse washing pressure is small and the efficiency of cake stripping can be improved significantly. It has excellent fine powder collection efficiency and small working pressure difference.

P84 Technical data :

Material P84 fiber
Scrim P84
Weight 500g/m2
thickness2.2mm
Breaking intensity (N/5×20cm)warp≥1100N / 5cm
weft≥1300N / 5cm
breaking elongation (%)warp≤30%
weft≤40%
Air permeability  (L/m2/S) (m3/m2·min)200-300 17



260ºCThermal shrinkage warp< 1%
260ºCThermal shrinkage weft< 1%
working temperature260ºC
Peak temperature 280ºC
Finishing treatmentheating,singeing,calendering,



Application: p84 filter material has gained rich application experience Riqi produces p84 high-temperature needle-resistant filter felt which  polyimide fiber produced by Austria LENZING Company. The filter material has the following three characteristics:in gypsum plant, cement plant, garbage incinerator, liquid fluidized bed boiler, coal-fired boiler and so on.

Nom/Aramid /P84 Polyimid Filter Felt Cloth

RIQI company has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.

Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.

The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer's praise.


Q: ,What certifacation you have?

We have got ISO9001 and SGS certification

Q: How long is your delivery time?

A: Generally it is 5-10 working days if the goods are in stock. or it is 15-20 days if the goods are not in stock.It depends on the quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, balance before shippment.
 Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them.

Q:What should I do if I'm not satisfied with your product?
A:Please contact us as soon as possible and tell us where went wrong.We can only accept refund or exchange if there is any quality issue.


IF you have some interesting please contact us without any hesitate, we will reply you within 24 hours and welcome to have a visit to our factory for more further business and know each other better. We do have the keen interesting to cooperate with you near future.
