Needle Punched Air Conditioner Filter Cloth P84 Air Filter Roll

Needle Punched Air Conditioner Filter Cloth P84 Air Filter Roll

Description
Supply Ability: 10000m/Week Specification: 50m/roll Or 100m /roll
Trademark: Philis Origin: China
Material: Polyester, PPS, Fiberglass, Fms, Nomex, PTFE Usage: Air Filter, Powder Filter
Type: Filter Felt Hole Shape: Square
Manufacturing Method: Manufacturing Cloth Transport Package: Standard Export Package
Samples: US$ 5/Square Meter 1 Square Meter(Min.Order) | Requ Customization: Available | Customized Request

Product Description

Company Info.

Customer Question & Answer
Ask something for more details

Basic Info.

Specification
50m/roll or 100m /roll
Trademark
philis
Origin
China
Production Capacity
10000m/Week

Product Description

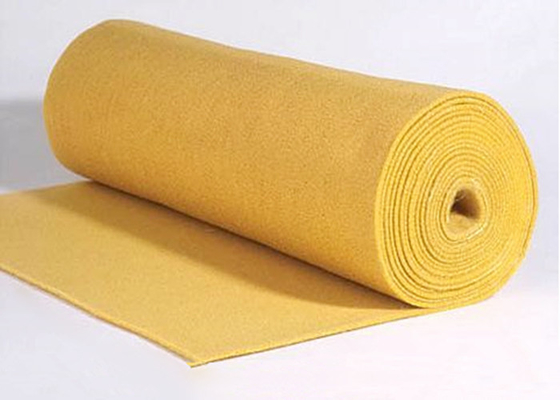

Needle punched air conditioner filter cloth P84 air filter roll


Quick Detail:

dust filter cloth

1. Non-toxic and odorless
2. Long service life
3. Good stiffness, easy to pleat
4. High air permeability
5. High dust holding


Description:

Excellent resistant to hydrolysis, acids and alkalies.

good air permeability

Lower fiber release, Lower density,High mechanical characteristics



Technical Specification:



Nonwovern dust filter bag

Continuous

Temperature

Peak

Temperature

Description

Resistance to

Acids

Resistance to

Alkalis

Resistance to

Oxidation

PH Value
Polypropylene90ºC100ºCPPexcellentexcellentrestricted1-14
Acrylic125ºC140ºCACgoodgoodgood3-11
Polyester130ºC150ºCPErestrictedmoderategood4-12
Polyphenylen sulfide190ºC200ºCPPSexcellentexcellentmoderate1-14
Nomex204ºC250ºCNomexgoodexcellentgood3-14
Polysulfonamide250ºC300ºCPSAexcellentexcellentexcellent3-14
Polymide260ºC300ºCP84goodmoderategood3-13
Polytertrafluoroethylene250ºC280ºCPTFEexcellentexcellentexcellent1-14
Yadi150ºC160ºCYadiexcellentexcellentexcellent3-13
Glassfiber260ºC300ºCBQgoodgoodgood3-11


Specification

CompositionsP84/P84 scrimP84 / glass scrim
Weight (g/m2)450500550800850900
Thickness (mm)2.02.22.42.52.83.0
Air permeability (m2m2/min)191512161310
Tensile strength (N/5×20cm)Warp650700800180018001800
Weft115012001300180018001800
Tensile Elongation (%)Warp<35<35<35<10<10<10
Weft<55<55<55<10<10<10
Working Temperature(°C)Continues≤260≤260
Instant300300
Anti-acidExcellentExcellent
Anti-alkaliMedialMedial
Anti-abrasionExcellentExcellent
The stability of water solutionMedialMedial
Finishing treatmentSingeing,High temperature hot pressingSingeing,High temperature hot pressing



Feature:

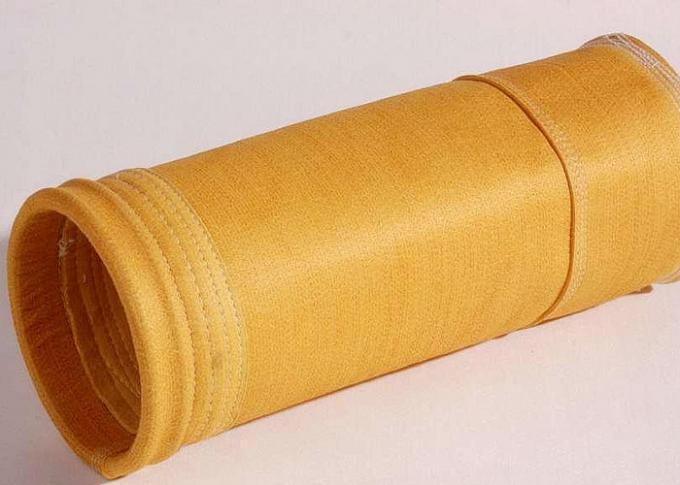

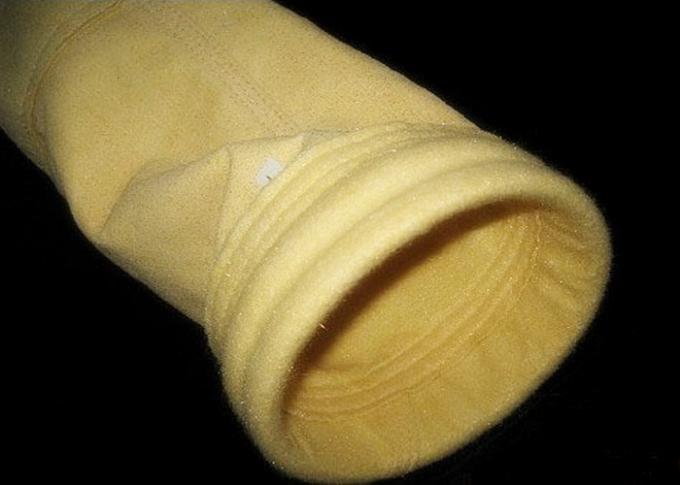

P84 Felt filter Media provide a unique and cost effective solution for many tough industrialbaghouse applications. Versatile and efficient,P84 usage ranges from minerals processing, low acid coal fired boilers, asphalt / hot mix plants, to soil remediation facilities.P84 fibers are needled into filtration quality felts to be sewn into filter bags suitable for use in pulse jet style baghouses. The unique tri-lobal fiber structure of P84 provides customers with high efficiency filtration, low pressure drop, and reduced cleaning energy.


Notices:

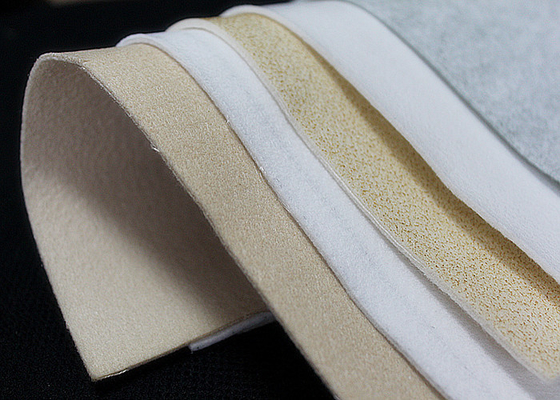

1. Materials avaliable: polyester, polypropylene,Nomex , PPS, PTFE, P84, Acrylic , glassfiber .

2. construction: welded or sewn

3. collar type: steel ring or plastic ring

4. finishing treatment: singed, calendared, heat set

5. Size available: standard and custom size.


Applications:

1. Air filters capture pollen, allergens, mold spores, and other microscopic particles to reduce symptoms and help everyone breathe easier.

2. medical filters made from nonwovens are key in any operating room to keep out pathogens, bacteria or microbes that might otherwise contaminate a sterile environment.

3. Oil filters are an important component in your car. The nonwoven fabrics in the filter help remove contaminants from the engine oil, hydraulic oil, trasmission oil and lubricating oil.

4. Automotive engine air intake filter helps automobile engines run at the highest efficiency,optimum airflow helps ensure engines run most effectively, which reduces fuel waste.

5. Filters for industrial filtration are used for dust produced in processing industries such as grinding, separation, brushing, transportation, drying, incinerating, etc.






Needle Punched Air Conditioner Filter Cloth P84 Air Filter Roll

Needle Punched Air Conditioner Filter Cloth P84 Air Filter Roll
Needle Punched Air Conditioner Filter Cloth P84 Air Filter Roll



FAQ

1. May I get samples?

Yes,

For OEM sample, usually takes about 5~15 days, it depends on design and technique.


2. Can you make my logo on package?

Of course! You only need provide us your original logo file or clear picture, so we can make it.

3. What is the payment method?

Bank transfer (T/T), Western Union, Money gram, L/C, paypal


4. How long production takes?

It is usually in 5~7 days after getting your payment and all the details confirmed.
