Model NO.: | PH00069 | Working Temperature: | 130 |
---|---|---|---|
Anti Acidic: | Good | Anti Alkaline: | Good |
Width: | 0 To 2.2 Meter | Transport Package: | Standard Export Packing |
Specification: | 1m X 1m X 1m | Trademark: | Riqi |
Origin: | China | HS Code: | 5911900 |
Supply Ability: | 5000PCS / Week | Material: | Polyester |
Usage: | Air Filter, Liquid Filter, Powder Filter, Solid Filter | Type: | Non-woven Filter |
Hole Shape: | Needle Punched | Manufacturing Method: | Manufacturing Cloth |
Paper Type: | Qualitative | Samples: | US$ 0/Square Meter 1 Square Meter(Min.Order) | Requ |
Customization: | Available | Customized Request | ||
High Light: | PE Nonwoven Filter Cloth,Polyester Nonwoven Filter Cloth,2.2m non woven filter bags |
needle punched polyeser PE, P84 , FMS , PTFE, ACRYLIC , NOMEX ,PP, PPS nonwoven filter cloth bag
Antistatic Polyester needle punched Dust Filter Bag For Dust colloctor
Philis filter polyester needle punched felt is made from 1-2.5D PE filber Weaving reinforced substrates with High strength and low elongation Yarn,Through needle punched reinforcement and finishing-treatment process.The product has the special characteristics of high porosity, good permeability, acid resistance and moderate alkalinity of ordinary felt filter cloth.And very good wear resistance.One of the mostly used kinds of felt filter material.
Weight from 350gsm to 800g/m2 thickness from 1mm to 4mm .

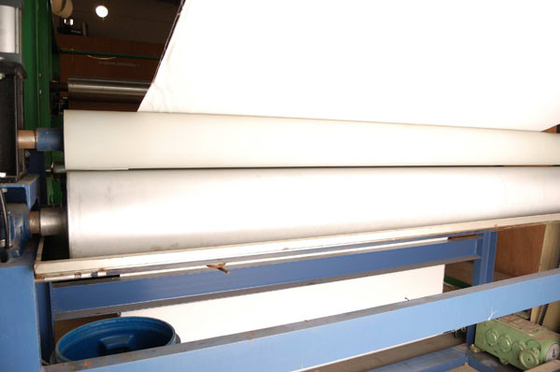

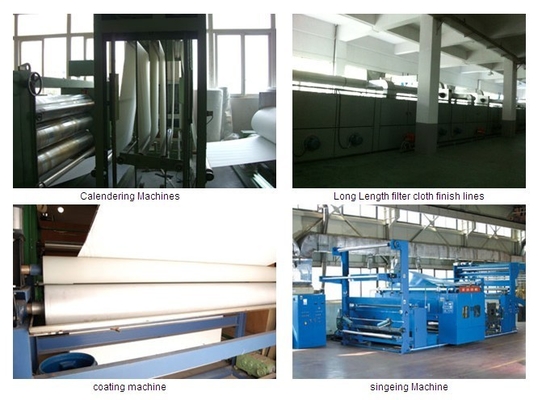

Finishing treatment : calendering , singeing,heating , PTFE coated. It has the characteristics of stable size, easy cleaning, long service life and so on.
Technical data sheet
material | Polyester fiber | Polyester fiber | ||||||||
scrim | polyester | polyester | ||||||||
weight | 500g/m2 | 550g/m2 | ||||||||
Thickness | 1.70mm | 2.00mm | ||||||||
Tensile strength | warp | ≥11500N / 5cm | ≥1200N / 5cm | |||||||
weft | ≥1500N / 5cm | ≥1600N / 5cm | ||||||||
Tensile elongation (%) | warp | ≤30% | ≤30% | |||||||
weft | ≤45% | ≤45% | ||||||||
Air permeabilithy(m3/m2·min) | 14 | 12 | ||||||||
130ºC Dry heat shrinkage warp | < 1% | < 1% | ||||||||
130ºC Dry heat shrinkage weft | < 1% | < 1% | ||||||||
Working temperature | 130deg ºC | 130deg ºC | ||||||||
Peak temperature | 150deg ºC | 150deg ºC | ||||||||
Finishing treatment | Heating,singeing , calendering | Heating,singeing , calendering |
Application : Mainly used in furniture, ceramics, powder coatings, batteries, cement, metallurgy, chemical, building materials, smelting, power generation, machinery, mines, petroleum, medicine, dyes, food,Grain processing and other manufacturers dust collect .

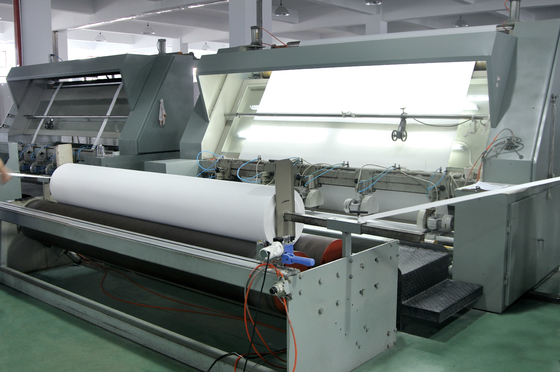

Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.
Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.

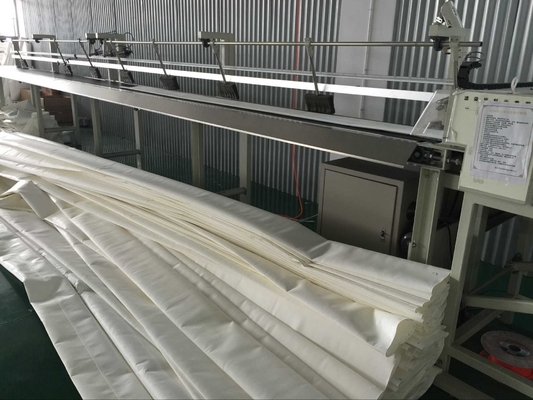

The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer's praise.
Q: ,What certifacation you have?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, balance before shippment.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
Q:What should I do if I'm not satisfied with your product?
A:Please contact us as soon as possible and tell us where went wrong.We can only accept refund or exchange if there is any quality issue.
IF you have some interesting please contact us without any hesitate, we will reply you within 24 hours and welcome to have a visit to our factory for more further business and know each other better. We do have the keen interesting to cooperate with you near future.
Contact Person: Miss. Wendy
Tel: 86-17815613488
