Model NO.: | 292 | Filter Bag Sectional Shape: | Round Bag |
---|---|---|---|
Filter Bag Environment: | High-Temperature | Sizes: | 292mm X 10000mm |
Weight: | 450GSM | Finishing Treatment: | PTFE Coated |
Color: | Black | Transport Package: | Standard Export Package |
Specification: | Customized Size | Trademark: | RIQI |
Origin: | China | HS Code: | 5911400000 |
Supply Ability: | 100PCS/Week | Material: | Fiberglass |
Medium Material: | Fiberglass | Filter Bag Filter: | The Filter Type |
Type: | Pocket Filter | Usage: | Dust Filter, Air Filter |
Filtration Grade: | HEPA Filter | Samples: | US$ 70/Piece 1 Piece(Min.Order) | Request Sample |
Customization: | Available | Customized Request | ||
Highlight: | PTFE Coated Fiberglass Filter Cloth,Fiberglass Filter Cloth 450GSM,Fiberglass Filter Bag 10000mm |

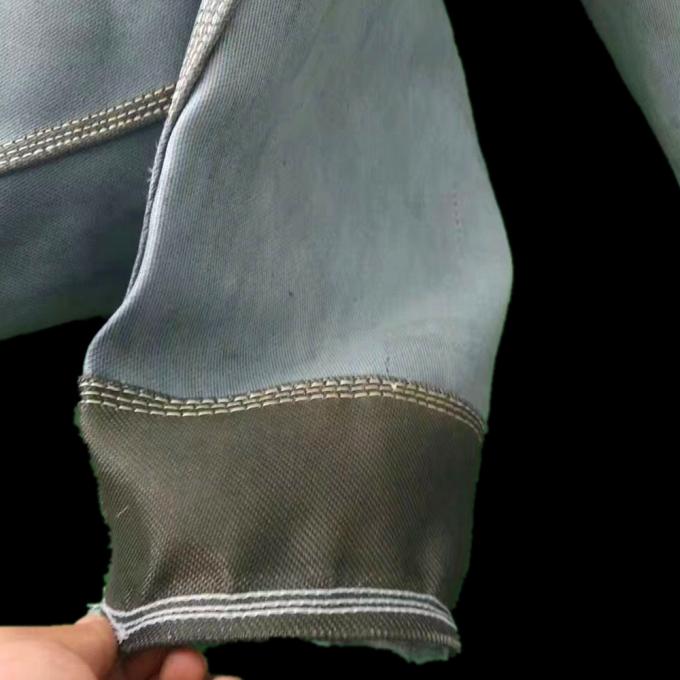

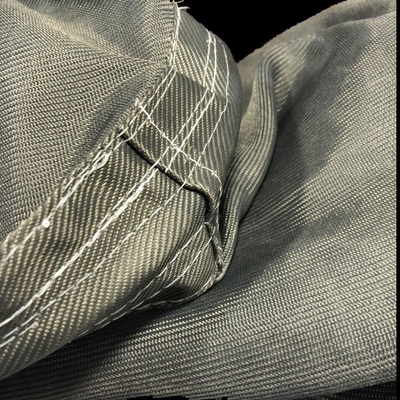

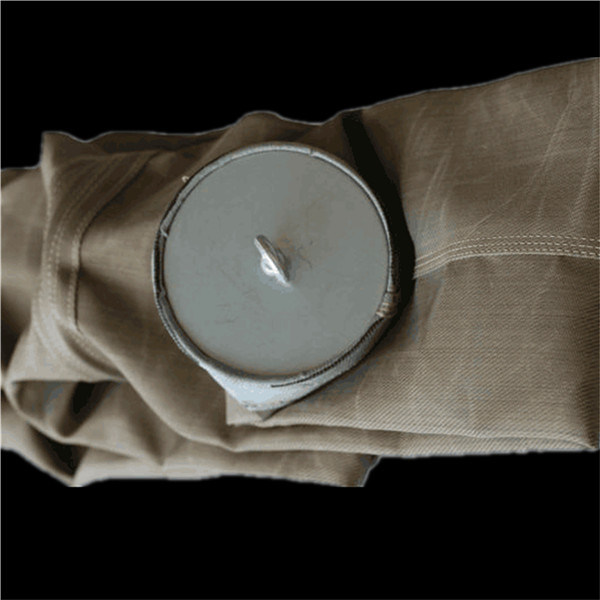

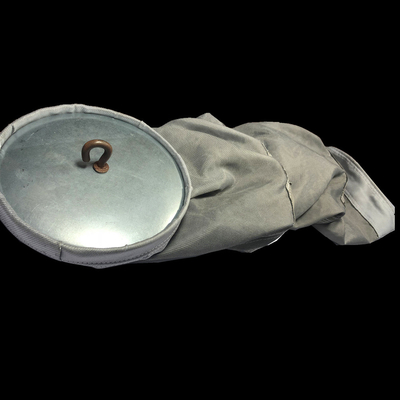

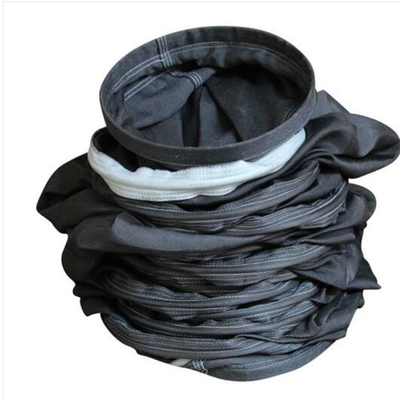

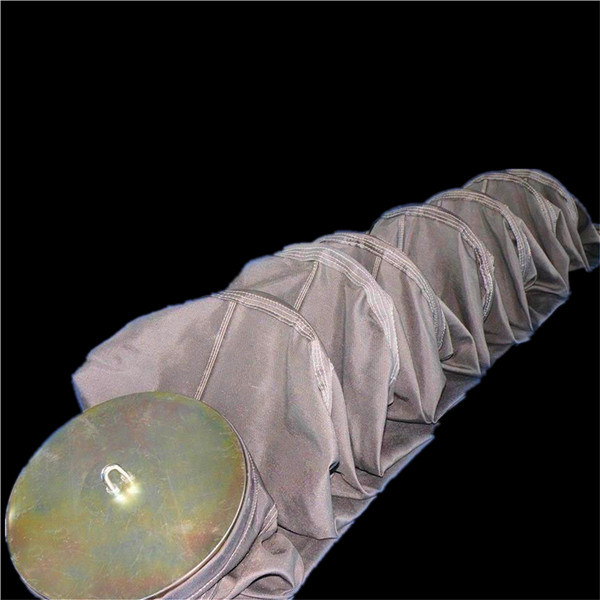

Fiberglass Filter Bag 292mm X 1100mm
fiberglass filter bag 292mm x 1100mm
filter superiority
1. High strength , stable sizes
2. godd filteration resistance, continous working temerature up to 260ºC
3. waterproof and oil proof
4. good filteration precision
Description:
Excellent resistant to hydrolysis, acids and alkalies.
Smooth surface, more defined pore size and good air permeability
Lower fiber release, Lower density,High mechanical characteristics
Specification:
1. dust collector filter bag are carefully fabricated and sized to ensure ease of installation and change-out.

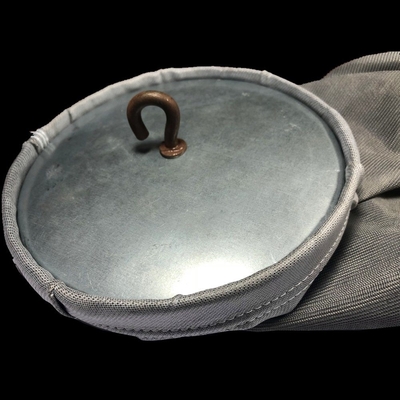

2. dust collector filter bags are designed to be mounted and gasketed firmly into place with a snap band, corded cuff, or clamp to ensure dust tight seal.
3. Various coatings and finishes can be applied to either side of the dust collector bag to enhance cleaning and efficiencies, as well as prolonging service life.
4. Groundwire, anti-collapse rings and other options can be easily incorporated into bag construction.
Applications:
1. cement industry /lime kiln
2. Wastewater treatment
3. the iron smelting industry
4. electric power industry
5. Chemical industry
Name | ||

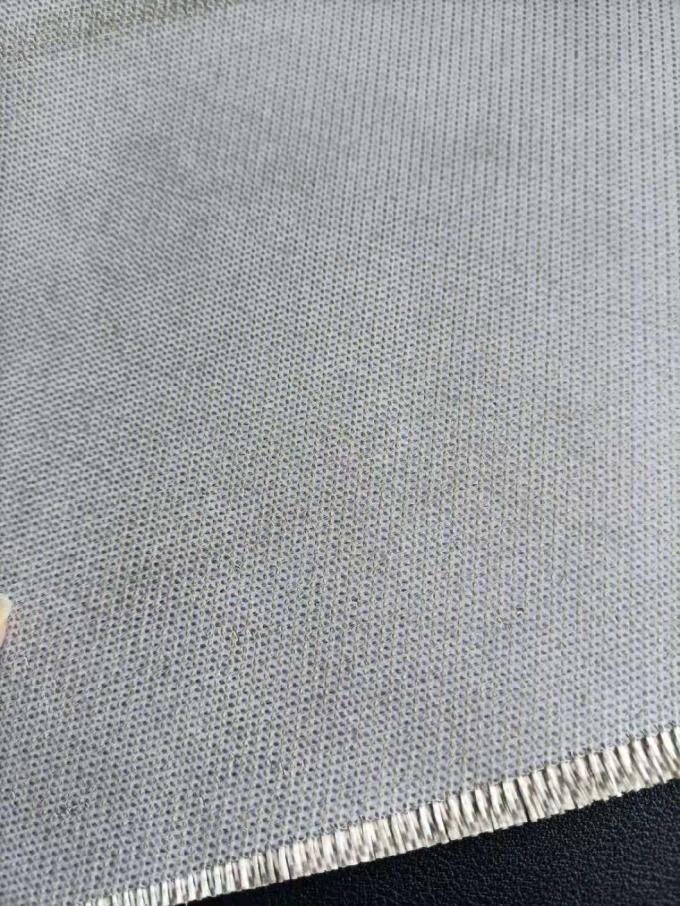

Fiberglass filter fabric 450g with SGT finish | ||
Item no. | E450-SGT | |
Weight | 450-470g | |
Thickness | 0.45 | |
Permeability- (l/m²s. 200pa) | 150-300 | |
Weaving | 1/3 twill | |
Structure of thread | Warp | DE75 1*2 |
Weft | DE75 1*2 | |
Quantity of thread | Warp | 17 |
Weft | 12 | |
Tensile strength (N/5*20cm) |
Warp | 4000 |
Weft | 2000 | |
Temperature-(ºC ) | Continue | 260 |
Instant | 280 | |
Finishing treatment | SGT finish | |
Impregnation percent,% | >10% |
FAQ
1.What is your time of making samples?
Usually we will take around 3-5 days to make the samples.
2.What is your MOQ?
Our MOQ is usually 1 carton.
3.What is your delivery time?
The time of delivery is about 7-15 days.
4.What is the loading port?
Ningbo/Shanghai
5.What is your payment terms? (Total amount > USD$10,000)
We accept 30% T/T in advance,70% before shipment.
6.What is the location of your company?
Our company is located in Zhejiang.
7. How about the samples?
We could send you the samples but the samples are charged.After the order is
confirmed, we would pay back the sample fee. Please be rest assured of that.
Essentially we sometimes send the samples for free.
