Fms Pulse Jet Bag Filter , Square Hole Needle Felt Filter Bag

Certification
China Riqi ( Hangzhou ) Filter Technology Co., Ltd. certification
China Riqi ( Hangzhou ) Filter Technology Co., Ltd. certification
I'm Online Chat Now

Fms Pulse Jet Bag Filter , Square Hole Needle Felt Filter Bag

Fms Pulse Jet Bag Filter , Square Hole Needle Felt Filter Bag
Fms Pulse Jet Bag Filter , Square Hole Needle Felt Filter Bag Fms Pulse Jet Bag Filter , Square Hole Needle Felt Filter Bag Fms Pulse Jet Bag Filter , Square Hole Needle Felt Filter Bag

Large Image :  Fms Pulse Jet Bag Filter , Square Hole Needle Felt Filter Bag

Product Details:
Place of Origin: Hangzhou
Brand Name: RIQI
Certification: ISO9001 SGS

Fms Pulse Jet Bag Filter , Square Hole Needle Felt Filter Bag

Description
Specification: 50m/roll Or 100m /roll Trademark: Philis
Origin: China Supply Ability: 10000m/Week
Material: Polyester, PPS, Fiberglass, Fms, Nomex, PTFE Usage: Air Filter, Powder Filter
Type: Filter Felt Hole Shape: Square
Manufacturing Method: Manufacturing Cloth Transport Package: Standard Export Package
Samples: US$ 5/Square Meter 1 Square Meter(Min.Order) | Requ Customization: Available | Customized Request
High Light:

Fms Pulse Jet Bag Filter

,

Fms Pulse Jet Bag Filter

,

Square Hole Needle Felt Filter Bag



Fms Pulse Jet Filter Bag Needle Punched Felt / Filter Bag

Product Description

Company Info.

Customer Question & Answer

Ask something for more details

Basic Info.

Specification
50m/roll or 100m /roll
Trademark
philis
Origin
China
Production Capacity
10000m/Week

Product Description

FMS pulse jet filter bag needle punched felt / filter bag


Quick Detail:

dust filter cloth

1. Non-toxic and odorless
2. Long service life
3. Good stiffness, easy to pleat
4. High air permeability
5. High dust holding


Description:

Excellent resistant to hydrolysis, acids and alkalies.

good air permeability

Lower fiber release, Lower density,High mechanical characteristics



Technical Specification:



Nonwovern dust filter bag

Continuous

Temperature

Peak

Temperature

Description

Resistance to

Acids

Resistance to

Alkalis

Resistance to

Oxidation

PH Value
Polypropylene 90ºC 100ºC PP excellent excellent restricted 1-14
Acrylic 125ºC 140ºC AC good good good 3-11
Polyester 130ºC 150ºC PE restricted moderate good 4-12
Polyphenylen sulfide 190ºC 200ºC PPS excellent excellent moderate 1-14
Nomex 204ºC 250ºC Nomex good excellent good 3-14
Polysulfonamide 250ºC 300ºC PSA excellent excellent excellent 3-14
Polymide 260ºC 300ºC P84 good moderate good 3-13
Polytertrafluoroethylene 250ºC 280ºC PTFE excellent excellent excellent 1-14
Yadi 150ºC 160ºC Yadi excellent excellent excellent 3-13
Glassfiber 260ºC 300ºC BQ good good good 3-11



FMS needle felt air filter bags for cement plant

FMS needled felt is made of glass fiber and p84 fiber.It has the following advantages compared with the fiberglass filter bag,
1.good temperature resistance,and the working temperature can reach to 260ºC,
2.the service life is significantly improved,
3.abrasion and breaking resistance,and the peeling strength is abviously improved,
4.the filtration efficiency is improved,
FMS filter bag has a series suitable for different temperature:150-200ºC,200-250ºC,250-300ºC.
FMS filter bag is widely used in steel,non-ferrous metallurgy,chemical industry,carbon black,building materials,electric power and so on.



 Performance of filter medium
 Filter meterial
FMS
Breaking tenacity
N/5×20cm
Warp
>1800
Weight
>800 g/m2
Weft
>1800
Thickness
1.7-1.9 mm
Elongation
N/5×20cm
Warp
<10%
Air permeability
8-15 m3/m2·min
Weft
<10%
Chemical stability
Alkali-proof
Superior
Acid-proof
Superior



Notices:

1. Materials avaliable: polyester, polypropylene,Nomex , PPS, PTFE, P84, Acrylic , glassfiber .

2. construction: welded or sewn

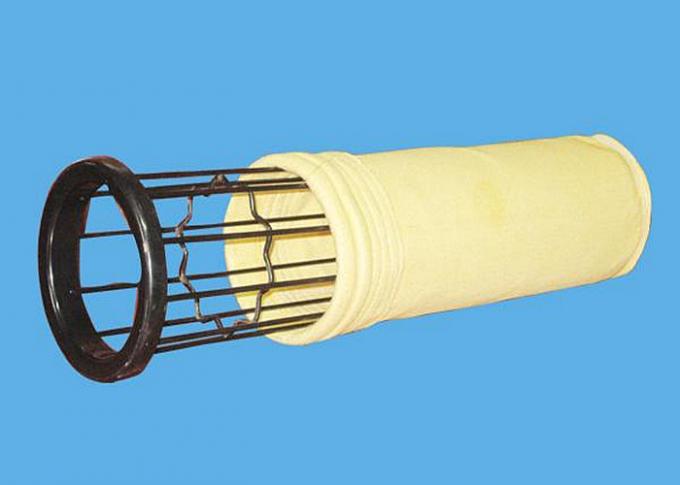

3. collar type: steel ring or plastic ring

4. finishing treatment: singed, calendared, heat set

5. Size available: standard and custom size.


Applications:

1. Air filters capture pollen, allergens, mold spores, and other microscopic particles to reduce symptoms and help everyone breathe easier.

2. medical filters made from nonwovens are key in any operating room to keep out pathogens, bacteria or microbes that might otherwise contaminate a sterile environment.

3. Oil filters are an important component in your car. The nonwoven fabrics in the filter help remove contaminants from the engine oil, hydraulic oil, trasmission oil and lubricating oil.

4. Automotive engine air intake filter helps automobile engines run at the highest efficiency,optimum airflow helps ensure engines run most effectively, which reduces fuel waste.

5. Filters for industrial filtration are used for dust produced in processing industries such as grinding, separation, brushing, transportation, drying, incinerating, etc.


Fms Pulse Jet Filter Bag Needle Punched Felt / Filter Bag
Fms Pulse Jet Filter Bag Needle Punched Felt / Filter Bag
Fms Pulse Jet Filter Bag Needle Punched Felt / Filter Bag



FAQ

1. May I get samples?

Yes,

For OEM sample, usually takes about 5~15 days, it depends on design and technique.


2. Can you make my logo on package?

Of course! You only need provide us your original logo file or clear picture, so we can make it.

3. What is the payment method?

Bank transfer (T/T), Western Union, Money gram, L/C, paypal


4. How long production takes?

It is usually in 5~7 days after getting your payment and all the details confirmed.
