Reverse Pulse Jet Bag Filter Dust Collection for Workshop Fume Extracting

Description
Warranty: 1 Year Condition: New
Efficiency: 99.9% Applicaiton: Cement\Magnesium\Lime\Ore Dressing\Sand Production, Dust Collect, Blast Furnace Blower
Color: Customized Filter Area: Customized
High Light:

Reverse Pulse Jet Bag Filter

,

Pulse Jet Bag Filter Dust Collection

,

Extracting jet pulse bag filter

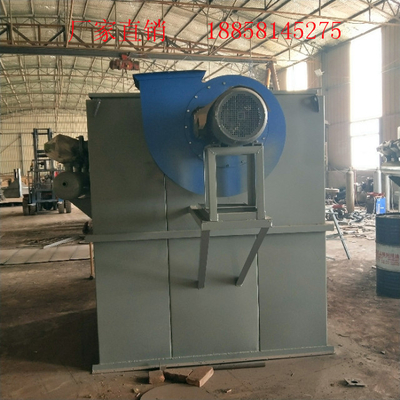

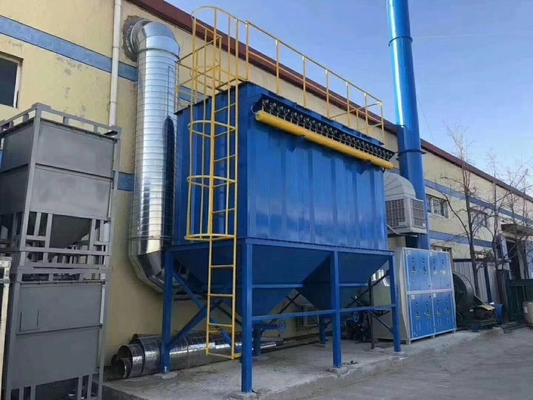

Dust Collection Pulse Jet Bag Filter for Workshop Fume Extracting



Baghouse are used to filter and collect solid particulates in dust gas, and such filter is widely used in the industries in terms of power station, metallurgy, cement, glass, chemicals and papermaking etc.




Thededusting efficiency is very high and can reach over 99.99%; the filter is not sensitive to the properties of dust, will not get any impact from dust and electric resistance and it can operate at the high temperature conditions of over 200ºCwhen the high temperature resistant filtering materials such as glass fiber,PTFE and P84 are used.
We has optimized and innovated again based on absorbing domestic and foreign excellent technologies, and has acquired multiple patented technologies interms of compressed air blowing system, aidlow distribution etc. The optimized bagtype filter has the features as high dedusting efficiency,low steel consumption, low resistance and small coverage area etc.



Details of our dust collector:
1. BAG FILTER DUST COLLECTOR, it has taken the temperature gas to lower temperature gas inlet structure, the rough high temperature granules directly drop to the dust hopper and effectively protects the filter bag.

2. The longer filter dust collector takes smaller area which will increase the production processing space, therefore, it is more convenient for reconstruction of old factories.

3. takes separate chamber off line dust cleaning in bag filter dust collector design and it is with high efficiency and few secondary flour dust attachment, meanwhile it can effectively save the energy consumption. Such design effectively protects the filter bags and pulse valves and saves the operation and maintenance cost for the dust collector system.

4. The filter bags will be replaced without stopping the filtration system.




Pulse Jet Bag Filter Dust Colletor for Sandblasting

Pulse jet bag filter dust colletor for sandblasting
Pulse Jet Bag Filter Dust Colletor for Sandblasting
Baghouse are used to filter and collect solid particulates in dust gas, and such filter is widely used in the industries in terms of power station, metallurgy, cement, glass, chemicals and papermaking etc.
Thededusting efficiency is very high and can reach over 99.99%; the filter is not sensitive to the properties of dust, will not get any impact from dust and electric resistance and it can operate at the high temperature conditions of over 200ºCwhen the high temperature resistant filtering materials such as glass fiber,PTFE and P84 are used.
We has optimized and innovated again based on absorbing domestic and foreign excellent technologies, and has acquired multiple patented technologies interms of compressed air blowing system, aidlow distribution etc. The optimized bagtype filter has the features as high dedusting efficiency,low steel consumption, low resistance and small coverage area etc.

Pulse Jet Bag Filter Dust Colletor for SandblastingPulse Jet Bag Filter Dust Colletor for Sandblasting

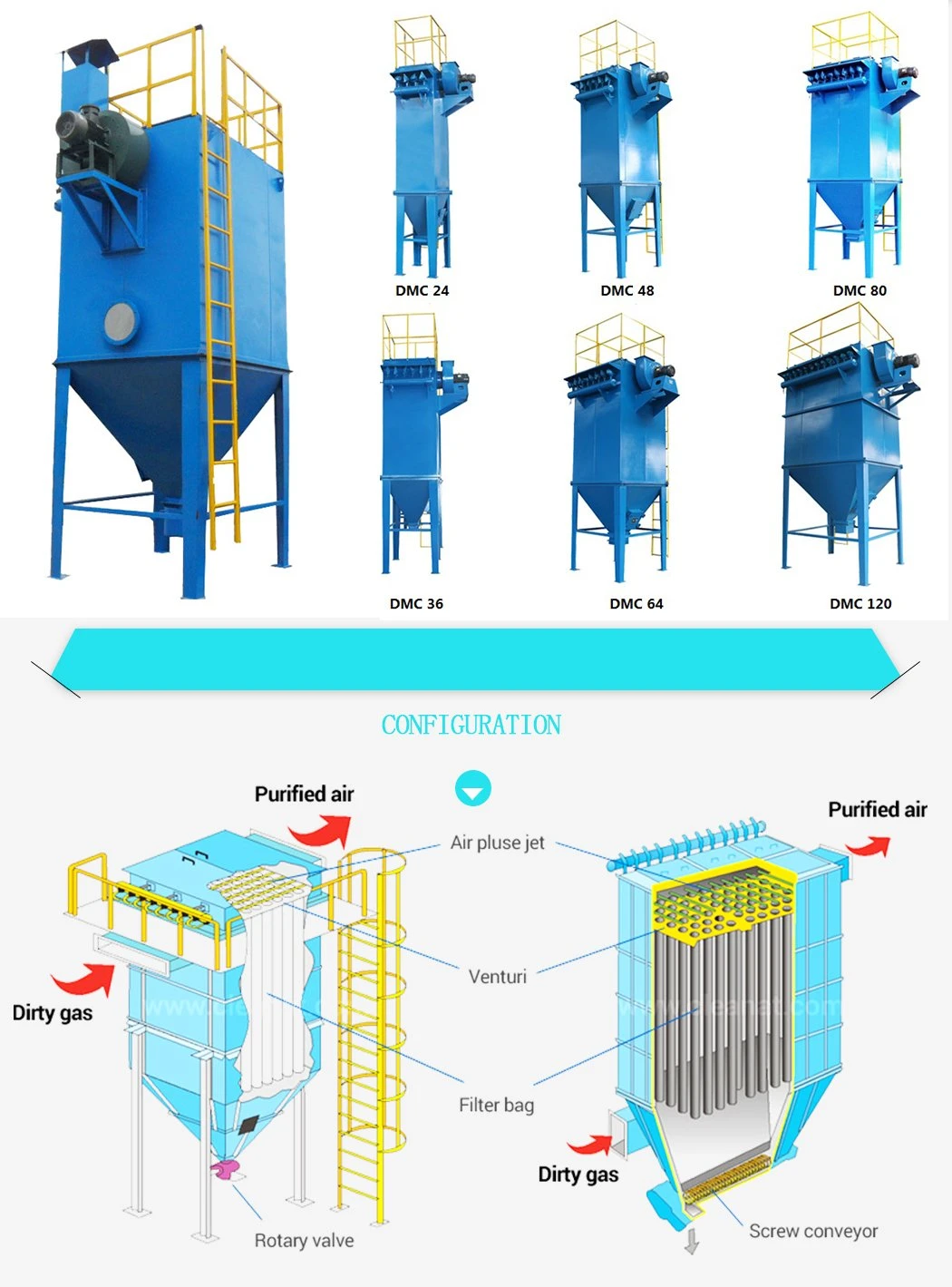

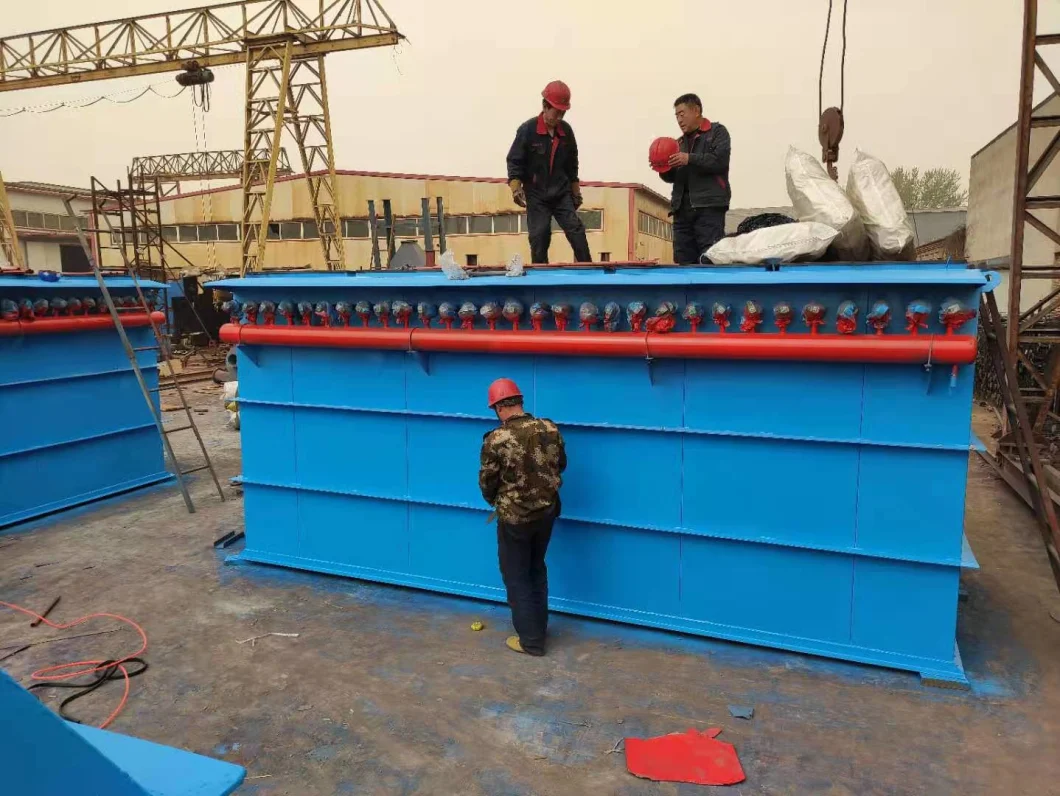

MC pulse bag type dust collector is consist of upper box, middlebox, underbox, dust removal system and jetting system.
1.Upper box is includes cover plate and air outlet.
2.Middle box is includes perforated plate, filter frame, sock and venture.

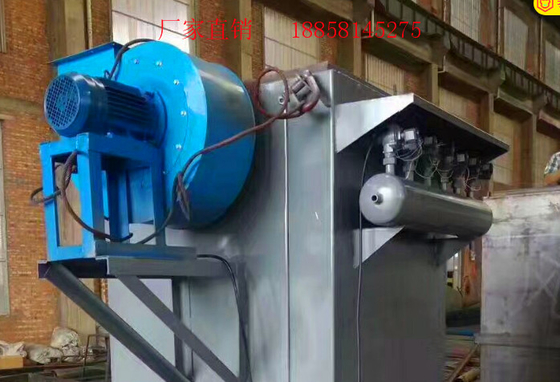

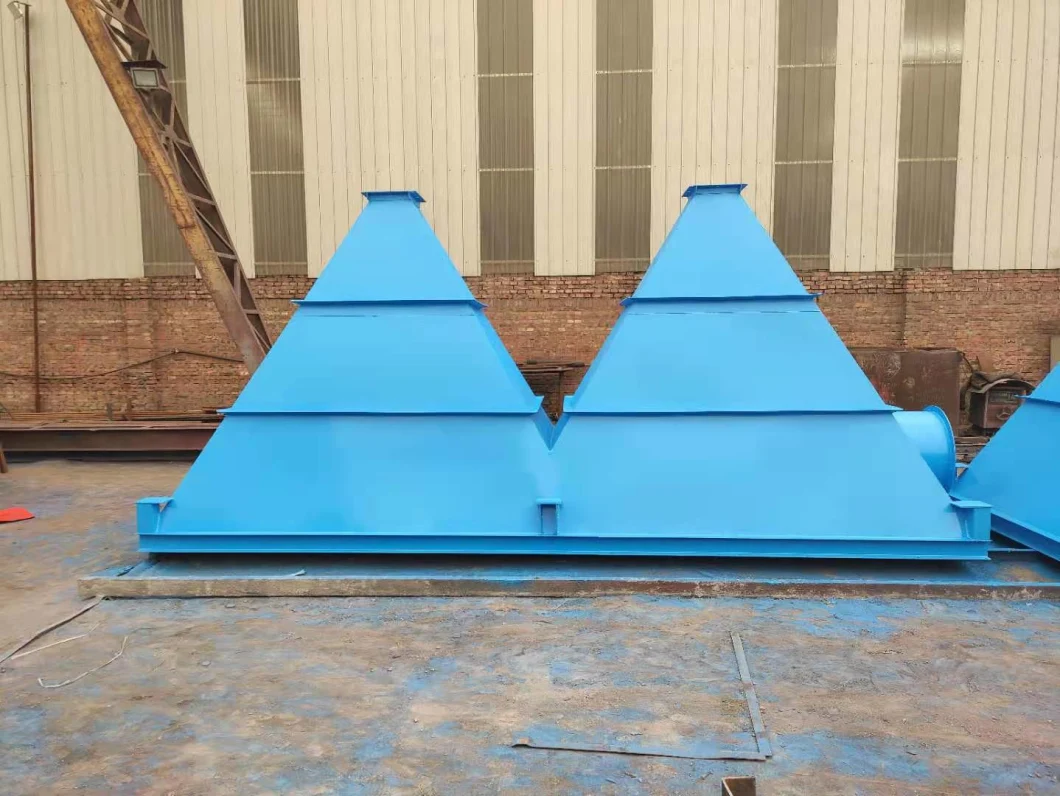

3.Under box is includes ash hopper, air intake and access door Jetting system contains control valve, pulse electromagnetic value, injection pipe and air pocket.


Working Principle:
During the dust gas goes into middle box and under box,the dust can be attached to filter bag and outgoing gas after going through venture and upper box. With the increasing of dust, press loss for dust bag is increased, which will fed back to controller. Receiving and issuing commands, the controller will touch off every pulse valve to make gas erupts from each jetting hole, then pass a venture tube and spray into corresponding filter bag. The filter bag expands rapidly under instantaneous reaction of airflow, dust fallen off of the filter bag, so the filter bag can be recycled.
Pulse Jet Bag Filter Dust Colletor for Sandblasting
Modelnumber MC24
-2
MC36
-2
MC48
-2
MC60
-2
MC72
-2
MC84
-2
MC96
-2
MC120
-2
Filter area (m2) 18 27 36 45 54 63 72 90
Bagquantity(pc) 24 36 48 60 72 84 96 120
Pulse valve (pc) 4 6 8 10 12 14 16 20
Air volume
(m3/h)
2160-4300 3250-6480 4320-8630 5400-10800 6450-12900 7550-15100 8650-17300 10800-20800
Dimension
(L×W×H)
1025×1678
×3700
1425×1678
×3696
1823×1678
×3676
2225×1678
×3676
2625×1678
×3676
3075×1678
×3676
3949×1678
×3676
4389-1678
×3676
Pulse control instrument JMK-2 type pulse control instrument
Filter bag size
(D×L)
¢125×2050
Efficiency (%) 99-99.5
Resistance mmH2O 120-150
Air speed
(m/m)
2-4
Dust content
(g/m3)
3-15
Air pressure
(kg/cm2)
4
Draught Fan model 4-72-11-4.5A 4-72-11-5A 4-72-11-6C 4-72-11-5A 4-72-11-6C
4-72-11-6C 4-72-11-8C
Compressed air consumption
(m3/m)
0.08-0.34 0.13-0.5 0.17-0.67 0.21-0.84 0.25-1.01 0.3-1.18 0.34-1.34 0.42-1.68
Weight(kg) 830 1106 1224.30 1341.44 1564.32 2012.35 2130.22 2410



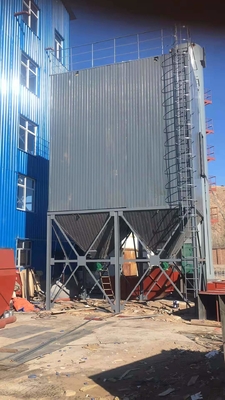

Pulse Jet Bag Filter Dust Colletor for Sandblasting




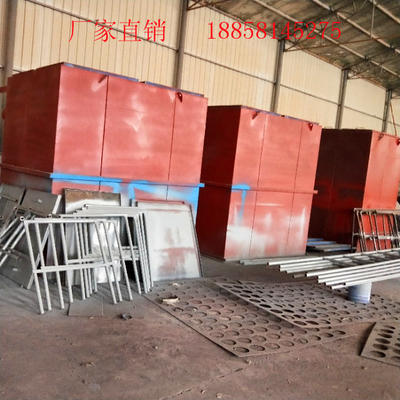

5.Dust Collector with filters which is made with snap band with good sealing, easy to assemble and replace and easy to tighten.

6.takes Air leaking detecting with oil and keeps all the dust collecting system air leaking less than 0.5%.


7. Our Bag Filter Dust Collector is controlled by PLC to realize automatic dust cleaning, dust removal, automatic temperature control and over temperature alarm.

Specifications of our dust collector:

Model PPC32-3 PPC32-4 32-5 32-6 64-4 64-5 64-6 64-7 64-8
Air volume (m3 /h) 6900 8930 11160 13390 17800 22300 26700 31200 35700
Total filter area (m2) 93 124 155 186 248 310 372 434 496
Chamber(pcs) 3 4 5 6 4 5 6 7 8
Quantity of filter bag(pcs) 32 64
Total quantity of filter bag(pcs) 96 128 160 192 256 320 384 448 512
Pulse valve Quantity 3 4 5 6 4 5 6 7 8
Specification 1 2
Specification of filter bag 130(D.)*2450
Filter material Based on flue gas properties
Filtration speed 0.8~2.0(Adjustable)
Negative pressure less than 6000
Resistance 1470~1770
Inlet dust concentration less than 200 less than 1000
Blowing pressure 0.5~0.7
Compressed air consumption 0.27 0.37 0.46 0.55 1.2 1.5 1.8 2.1 2.4
Air-locking unit Adjustable
Screw conveyor No Adjustable
Area of heat preservation 26.5 34 41 48.5 70 94 118 142 176


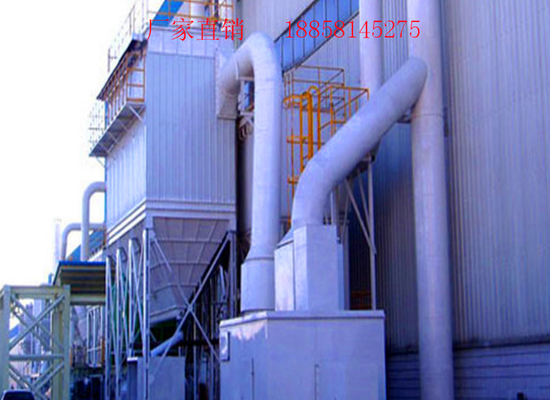

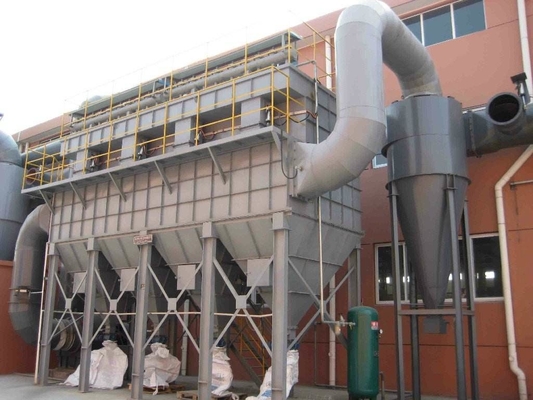

Application of our dust collector:
Bag Filter Dust Collector is widely applied in industries, such as Asphalt mixing site, cement plant, gypsum plant, steel plant, coal fired boiler, and so on.always provides the cost-effective filtration solutions for all of our clients.
